Einleitung
Nothing is more frustrating that the useless whir of a disk drive that will not read your disk. In this guide, we will show you how to replace your disk drive!
Werkzeuge
Ersatzteile
-
-
Remove the two 10mm Phillips #1 screws.
-
Remove the one 8 mm Phillips #1 screw.
-
Carefully lift up the cover and lay back, to ensure that you do not damage the attached cable.
-
-
-
Unplug the small wiring bundle attaching the body of the device to the cover.
-
Lay the cover aside.
-
-
-
Remove both wire bundles from motherboard.
-

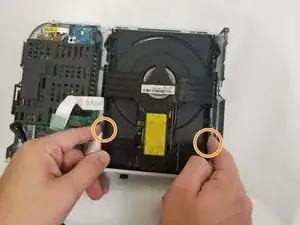

Depress tabs located on each side of disk drive as shown.
-
Abschluss

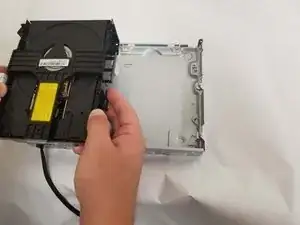

To reassemble your device, follow these instructions in reverse order.
