Samsung BD-F5700 DC Power Board Replacement

Geschrieben von: samer odeh
  • Kommentare: 0
Samsung BD-F5700 DC Power Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 - 35 Minuten

Einleitung

A guide on how to replace a damaged DC power board on a Samsung BD-7500.

  1. jBwPfRHxcWfUnGb3

    • Remove the three 10mm screws with a Phillips #0 screwdriver.

    • Pry the top off with a plastic opening tool.

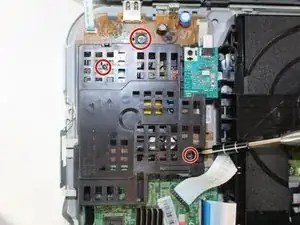

  2. ZSrDo4VBPpPDgoZB

    • Remove the three screws holding down the cover with a Phillips #0 screwdriver.

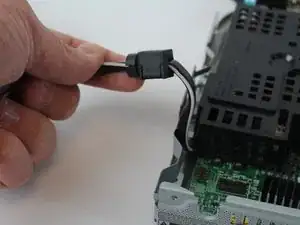

  3. 4pXWCJK2YgE2Gj4J

    • Lift up the power cord at its base to remove it.

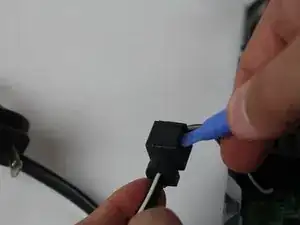

  4. vjuKNm3pecvgBIts

    • Insert a plastic opening tool into the black plastic tab on the cord and twist to separate.

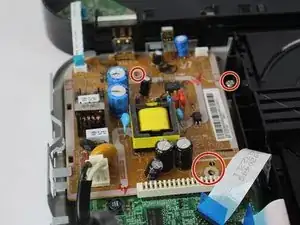

  5. xvZVcCMAGQiHnfUi

    • Remove the 7mm screw with a Phillips #1 screwdriver.

    • Grip the blue tab attached to the base and pull upwards.

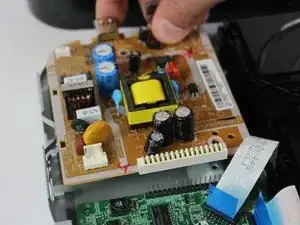

  6. B1lMldpOqSxXBAtm

    • Grip the edges of the motherboard and pull upwards to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
