In the event of a catastrophic failure on your Blu-ray player, the Main Logic Board may have failed. This guide is for replacing a damaged or broken Main Logic Board. The only tool required is a #1 Phillips head screwdriver.
Werkzeuge
-
-
Using a #1 Phillips head screwdriver, remove the three 10mm screws on the back panel.
-
Tilt the back of the top cover forward to remove from chassis.
-
-
-
Gently pull up on the ribbon cable by the blue tab to remove it from the power supply board.
-
-
-
Using a #1 Phillips head screwdriver, remove the two 7.5mm screws on top of the plastic cover and remove the cover.
-
-
-
Press down on the plastic retaining clip and pull backwards to remove the AC power connector from the power supply board.
-
-
-

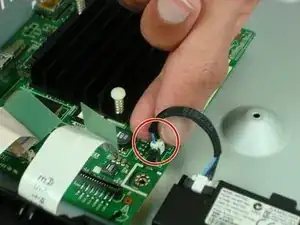

Using the plastic spudger tool, gently pry on either side of main power connector (CON801) to disconnect from main logic board.
-
Tilt the board forward and lift up to remove from the chassis.
-
-
-
Remove the two ribbon cables from the Main Logic Board assembly by gently pulling up on the blue tab.
-
-
-
Using a #1 Phillips head screwdriver, remove the three 7.5 mm screws from the board
-

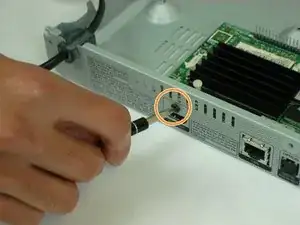

Also remove the 10 mm screw from the rear panel.
-
Remove the Main Logic Board
-
To reassemble your device, follow these instructions in reverse order.
