Samsung BD-H5100 Disk Reader Replacement

Geschrieben von: Mira Patel
  • Kommentare: 0
Samsung BD-H5100 Disk Reader Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 Minuten

Einleitung

This guide will show how to remove and replace the disk reader in the case that it is no longer reading the DVDs.

  1. ZAT4p52iyb3wgAoD

    • Use the Phillips Head #2 screwdriver to remove the three 10 mm screws on the back panel.

  2. 5AlTOW3GlTyJxEgt
    5AlTOW3GlTyJxEgt
    fdMFGtXjHxXBPwWM
    wVs3Tvon1oREgdto

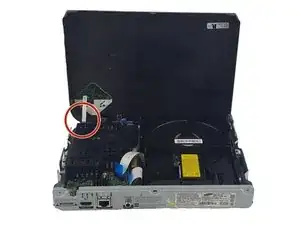

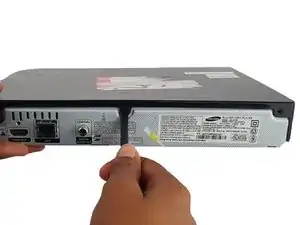

    • Use the plastic spudger to pry open the top panel.

    • Be careful not to break the ribbon connecting the motherboard on the bottom panel to the top panel.

  3. ZpWV11D3Jb3bdJH2
    ZpWV11D3Jb3bdJH2
    ONpZbJ2OjHJKwcOq

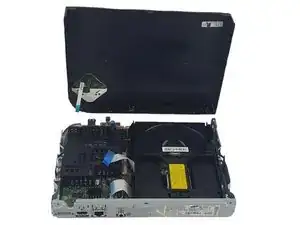

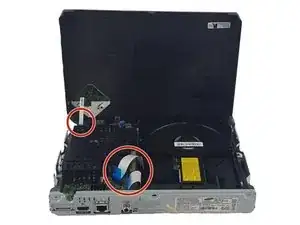

    • Pull the ribbons gently from one corner by the blue tabs to remove it.

  4. xYuiRU4jdniKUwGC

    • Remove the two 7.5 mm screws on both sides of the disk tray with Phillips Head #2 screwdriver.

  5. D5CkW5LgjcvIQGrP
    D5CkW5LgjcvIQGrP
    fTBqTFnPKr4Jf6Kx

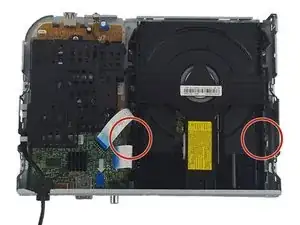

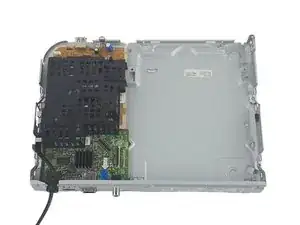

    • Push two small prongs on both sides inwards and push forward.

    • Remove the disk tray.

  6. wQLAGvKjVRF2LlE6

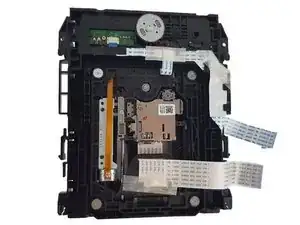

    • Flip the disk tray upside down.

  7. xi1Lj14kKPXCR5KN

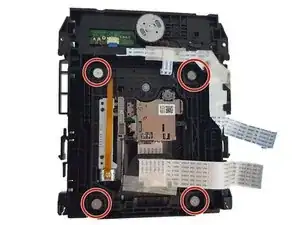

    • Use the Phillips Head #00 screwdriver to remove the four 6.2 mm corner screws.

  8. jw1fHPfnSDIFeTI5

    • Flip the disk reader up like a flip phone.

    • Be careful not to break the ribbon.

  9. YeqAwn5CVajNpq53
    YeqAwn5CVajNpq53
    pXlUJ1iNAomJ5hBw

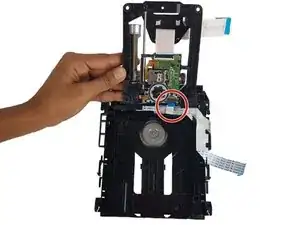

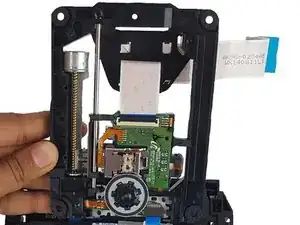

    • Pull the ribbon out gently from one corner by the blue tab.

Abschluss

To reassemble your device, follow these instructions in reverse order.
