Samsung BD-H5100 Disk Tray Replacement

Geschrieben von: Mira Patel
  • Kommentare: 0
Samsung BD-H5100 Disk Tray Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

25 Minuten

Einleitung

This guide will teach how to remove and replace the disk tray.

  1. jhow5G1xXFK12HDN

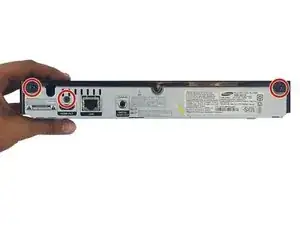

    • Use the Phillips Head #2 screwdriver to remove the three 10mm screws on the back panel.

  2. o63vK6sFGQ1BTM4P
    o63vK6sFGQ1BTM4P
    Dw4T5TTMW5XVlReE
    EuSO11ogikuO4xJJ

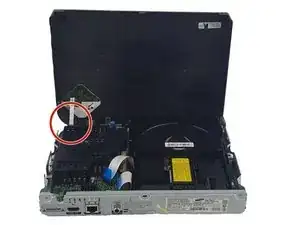

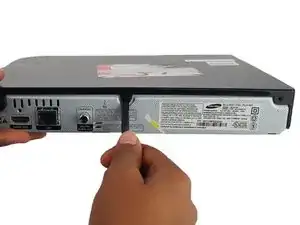

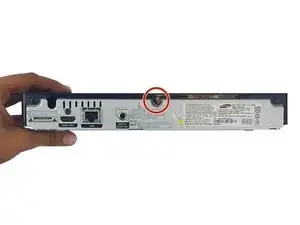

    • Use the plastic spudger to pry open the top panel.

    • Be careful not to break the ribbon connecting the motherboard on the bottom panel to the top panel.

  3. RPOGEOWw2HLGA1MC
    RPOGEOWw2HLGA1MC
    onKoidIEA4YfCQWF

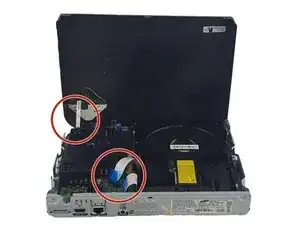

    • Pull the ribbons gently from one corner by the blue tabs to remove it.

  4. WwPPHAlFZjrtEIif

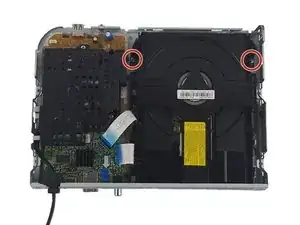

    • Remove the two 7.5 screws on both sides of the disk tray with Phillips Head #2 screwdriver.

  5. OJInUdGHNZfNOKST
    OJInUdGHNZfNOKST
    aQW6sMDvSTaYL6Cq

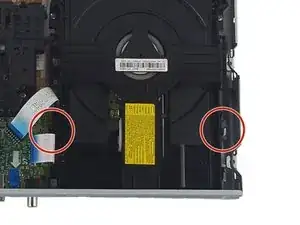

    • Push two small prongs on both sides inwards and push forward.

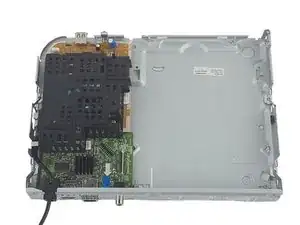

    • Remove the disk tray.

Abschluss

To reassemble your device, follow these instructions in reverse order.
