Samsung BD-H5100 Media Controls Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

We will teach the reader how to replace the media controls in the Samsung BD-H5100 in the case the controls don't work anymore when pressed.

  1. QFbqw3biSMvpZPEd

    • Use the Phillips Head #2 screwdriver to remove the three 10mm screws on the back panel.

  2. CmDZmwf2jHQoRc3V
    CmDZmwf2jHQoRc3V
    G5OY4VMvNXTB1KiZ
    DKMMBn3OdQIDkXRi

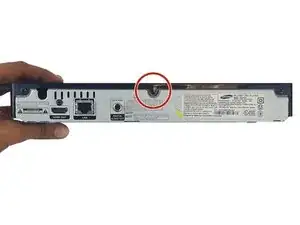

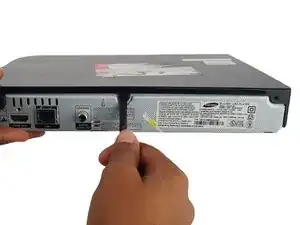

    • Use the plastic spudger to pry open the top panel from the center tab.

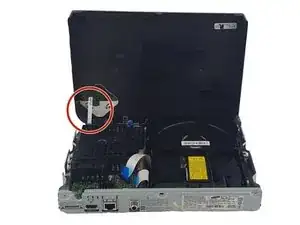

    • Be careful not to break the ribbon connecting the motherboard on the bottom panel to the top panel.

  3. I6BPxWUmqcGvMmRM
    I6BPxWUmqcGvMmRM
    EdK4q521LfVENNi1

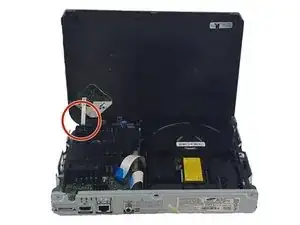

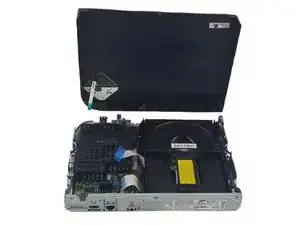

    • Pull the ribbon gently from one corner by the blue tab to remove it.

  4. dbqbQpN6qB6xEIRM

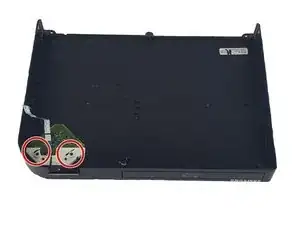

    • Use a Phillips Head #00 to unscrew the two 7mm screws on the media controls.

  5. sdglSHCWuLpcFU5N

    • Remove the white cover from the media controls.

Abschluss

To reassemble your device, follow these instructions in reverse order.
