Samsung BD-H5100 Motherboard Replacement

Geschrieben von: Mira Patel
  • Kommentare: 2
Samsung BD-H5100 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

35 Minuten

Einleitung

This guide will show how to replace the Motherboard.

  1. U2wRsLJK216Olbum

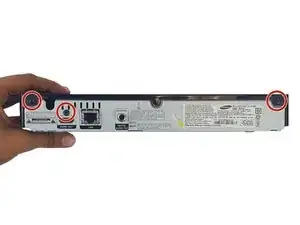

    • Use the Phillips Head #2 screwdriver to remove the three 10mm screws on the back panel.

  2. 4yvneFrKOlqUFM3J
    4yvneFrKOlqUFM3J
    WlZf2IfpRm1BZgeF
    SOSXwcacU4VYWdJH

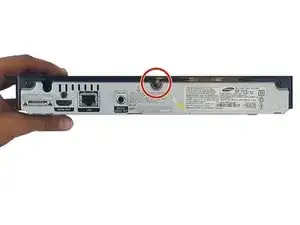

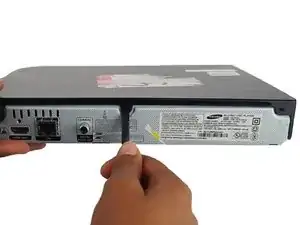

    • Use the plastic spudger to pry open the top panel.

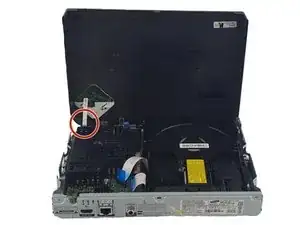

    • Be careful not to break the ribbon connecting the motherboard on the bottom panel to the top panel.

  3. rkSFkDJxPvOIScvf
    rkSFkDJxPvOIScvf
    mdC6wYan5ajEATAb

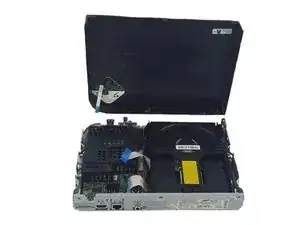

    • Pull the ribbons gently from one corner by the blue tabs to remove it.

  4. WjtToPd3Ayt3WCRt

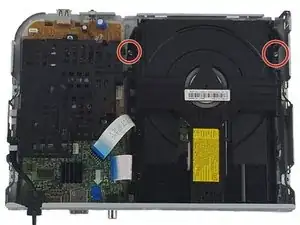

    • Remove the two 7.5mm screws on both sides of the disk tray with Phillips Head #2 screwdriver.

  5. fjE1KFNhSJqtKf5v
    fjE1KFNhSJqtKf5v
    dSB22C1NVVoFjHqd

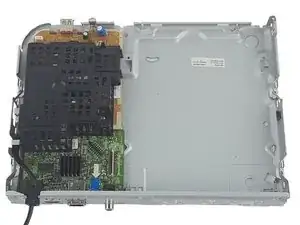

    • Push two small prongs on both sides inwards and push forward.

    • Remove the disk tray.

  6. ZiXv4cxFeRylTUXx
    ZiXv4cxFeRylTUXx
    BLDcIbJ5q2TNdOCI

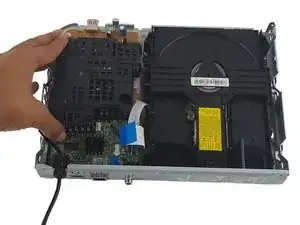

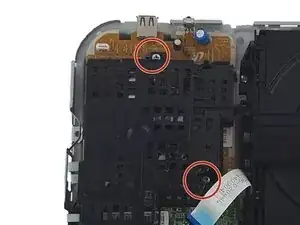

    • Use a Phillips Head #2 to remove the two 7.5mm screws on the black cover.

    • Remove the black cover.

  7. UtsRhBoBTHZuaQQg
    UtsRhBoBTHZuaQQg
    HLdBZcjlCPsuCZBP

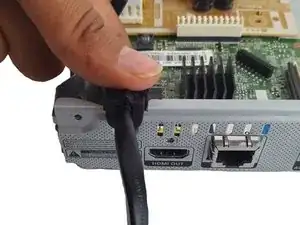

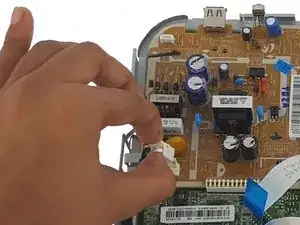

    • Pinch the white clip and pull straight up on the power cord.

    • Remove the power cord.

    If have This Power supply Unit? FOR sale?

    Prasuthan Visvalinkam -

    I need this power uint board? To buy?

    Prasuthan Visvalinkam -

  8. SnoGcOLhUm4VneGt

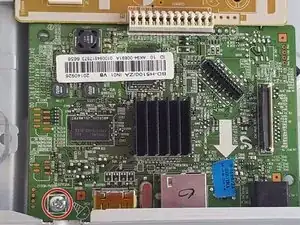

    • Use a Phillips Head #2 to remove the 7.5mm screw.

  9. 4PwOwLZMx5egfBNd

    • Use your finger to pry the metal tab slightly up.

    • This may break after several uses.

  10. UZhGMhvAsBup3T4f

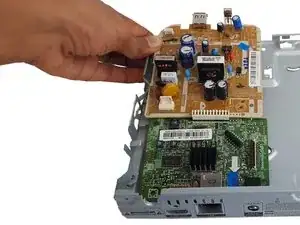

    • Slide out the Motherboard.

    • Be careful when touching the bottom because it is sharp.

Abschluss

To reassemble your device, follow these instructions in reverse order.
