Samsung BD-H5100 Power Cord Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

The Blu-Ray Player will be opened and the power cord removed.

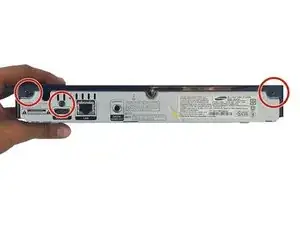

  1. dGoQg6FtdM6HKnTo

    • Use the Phillips Head #2 screwdriver to remove the three 10mm screws on the back panel.

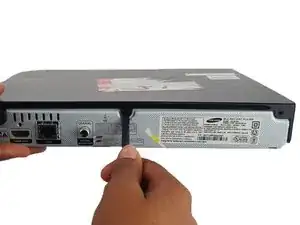

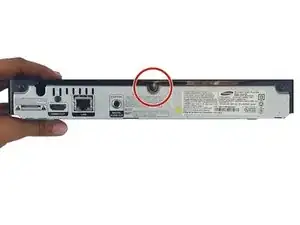

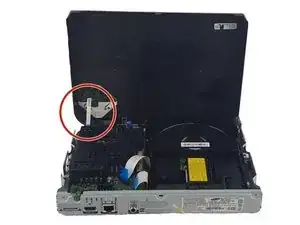

  2. XPZMDFZF64FcFvKl
    XPZMDFZF64FcFvKl
    XQgbbEunaXs6PekL
    UPgYoYdvhVVGy5Lx

    • Use the plastic spudger to pry open the top panel.

    • Be careful not to break the ribbon connecting the motherboard on the bottom panel to the top panel.

  3. KmHXSVIOvlI2xeFV
    KmHXSVIOvlI2xeFV
    BEJCyDhdLFFTSsBN

    • Pull the ribbons gently from one corner by the blue tabs to remove it.

  4. S3JbCCuM3xifQRbS

    • Use a Phillips Head #2 to remove the two 7.5mm screws on the black cover.

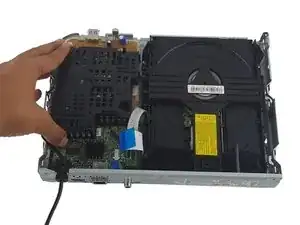

  5. Cn5ZNqFKmTFhsWLb

    • Remove the black cover.

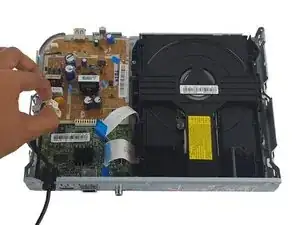

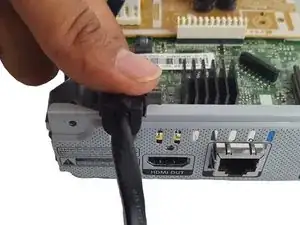

  6. P6IZSCQjJutKRyRr
    P6IZSCQjJutKRyRr
    LLN5xSRfMtSDMZDs

    • Pinch the white clip and pull straight up on the power cord.

    • Remove power cord.

Abschluss

To reassemble your device, follow these instructions in reverse order.
