Use this guide to install, remove, or replace the phone's antenna.
-
-
Apply downward pressure to the top of the battery panel while pulling down to slide it off the phone.
-
-
-
Locate the grooves on the sides of the battery near the bottom of the phone. Use your fingers to pull the battery up and out of the phone.
-
-
-
Insert the plastic opening tool in the gap between the back panel and rest of the body.
-
Slide the tool along the edges until the two pieces come apart.
-
-
-
Pry apart the plastic tabs along the edges of the phone.
-
Separate the front panel from the main body of the phone using your fingers.
-
-
-
Remove the two 4.0 mm screws, one silver and one black, from both ends of the antenna using the Phillips 00 screwdriver.
-
-
-

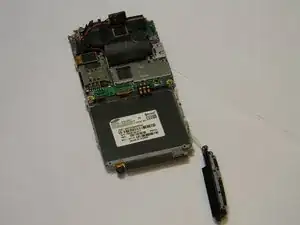

To remove the antenna, disconnect the white antenna cable that connects it to the main circuit board.
-
To reassemble your device, follow these instructions in reverse order.
