Use this guide to install, remove or replace the phone's audio receiver.
-
-

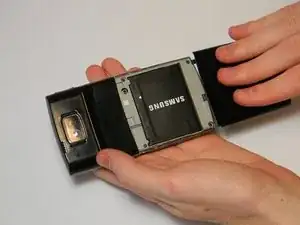

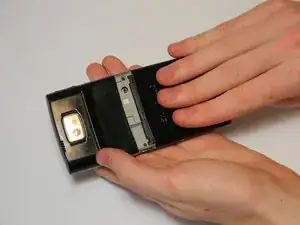

Apply downward pressure to the top of the battery panel while pulling down to slide it off the phone.
-
-
-

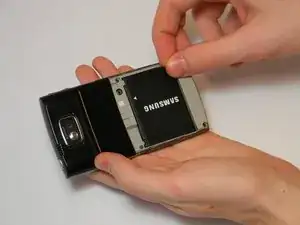

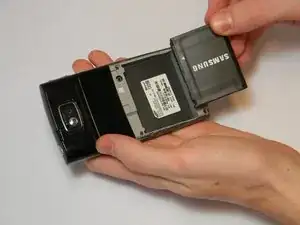

Locate the grooves on the sides of the battery near the bottom of the phone. Use your fingers to pull the battery up and out of the phone.
-
-
-

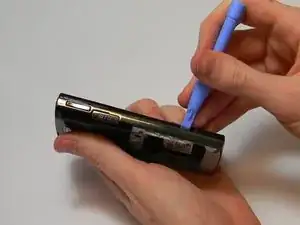

Insert the plastic opening tool in the gap between the back panel and rest of the body.
-
Slide the tool along the edges until the two pieces come apart.
-
-
-
Pry apart the plastic tabs along the edges of the phone.
-

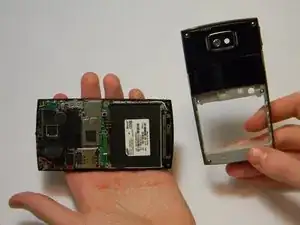

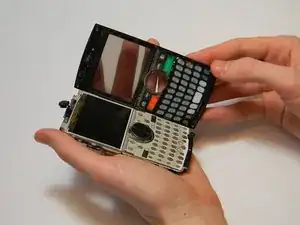

Separate the front panel from the main body of the phone using your fingers.
-
-
-

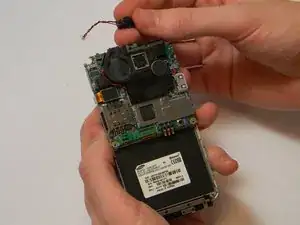

The audio receiver is a small rectangular piece connected via wire to the circuit board.
-
Carefully free the audio receiver so it is only connected by a small, clear plug on the circuit board.
-
-
-

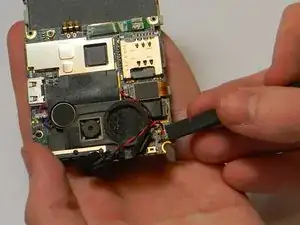

Use the spudger to separate the clear plug from its connector on the circuit board.
-
Use light force to avoid damaging any fragile components.
-
To reassemble your device, follow these instructions in reverse order.
