Einleitung

Use this guide to replace a broken screen.

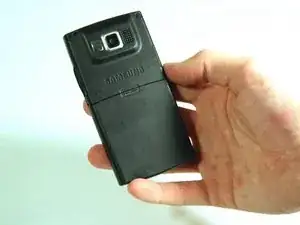

  1. 1ICgZOyMRJ2pNlOh
    1ICgZOyMRJ2pNlOh
    inXe632VaMROrEiS
    G3dfbGQy2VFwgCPn
    • Hold the device with the screen facing away from you and the camera towards you.

    • Place your thumb on the bottom half of the phone and slide the cover off while gently pushing down on the cover.

  2. GcU66PYv1OIqyHs1
    GcU66PYv1OIqyHs1
    iNsJVVQhe4HFHEqQ

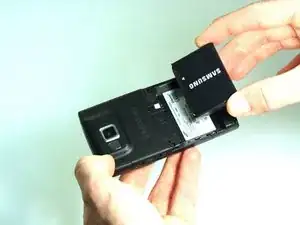

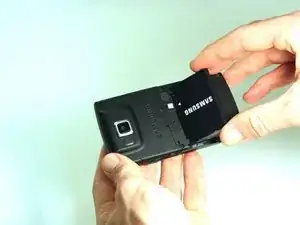

    • Place your fingers on both sides of the bottom of the battery and lift upwards.

    • Pull the battery away from the phone.

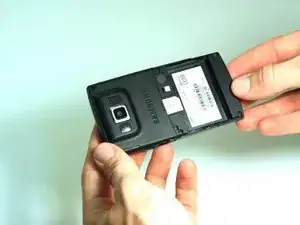

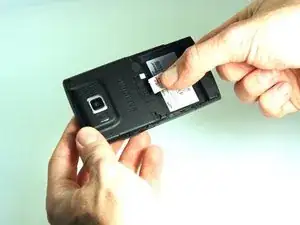

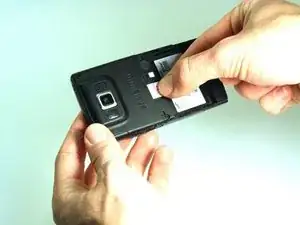

  3. RQ2YAbet3UDPu1rf
    RQ2YAbet3UDPu1rf
    3jCkDloJXOSWlwgu
    e6XudYB4ETwjBEC1
    • Place your thumb on the SIM card.

    • Slide the card out of the slot.

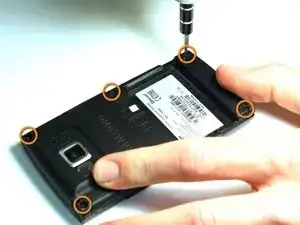

  4. JSKIULyHEnDUI2ow
    JSKIULyHEnDUI2ow
    MddULvXJoU1KjEN3

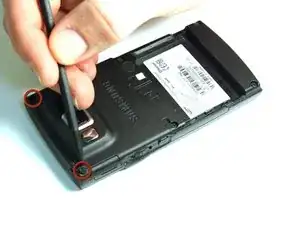

    • Use the spudger to remove the rubber stoppers from the top of the cover.

    • Use the Phillips 00 screw driver to remove the screws from each of the four corners and the two on sides (six total).

  5. YbwZkZoQXTyUOwxM
    YbwZkZoQXTyUOwxM
    GWhGKxS3oPyMaROd
    BWANJScv2ndDMGSq

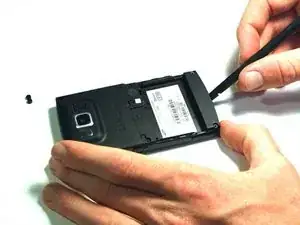

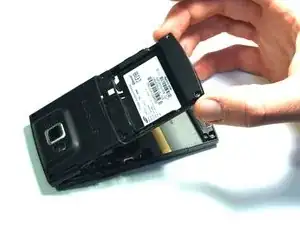

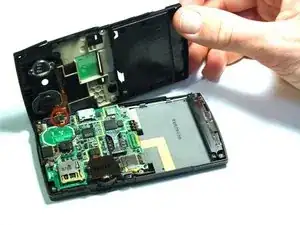

    • Use the spudger to loosen and separate the front and back covers.

    • Pick up the back cover once loosened.

    • The front and back covers will be attached to each other by a gold wire.

    • Remove the gold wire connecting the back cover to the motherboard to completely separate the covers.

  6. tKkEkIyUkTyXVjch
    tKkEkIyUkTyXVjch
    jS6FDPMDTsEVd2Ud

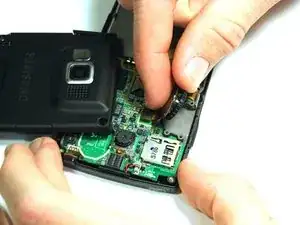

    • Use the screwdriver to unscrew the four screws that hold the scroll wheel in place.

    • Use your fingers to remove the scroll wheel and the metal plate that it is attached to.

  7. XEYUSLpKcw3ECfQt
    XEYUSLpKcw3ECfQt
    YnNDidQCSnHcvlth
    • Use the spudger to unsnap the gold wire connection that connects the back casing to the logic board.

    • Use the spudger to unsnap the gold wire connection that connects the scroll wheel assembly to the logic board.

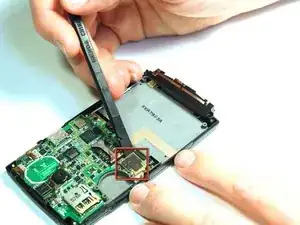

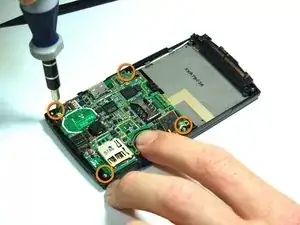

  8. eVbaKSg3Oni6PNtd
    eVbaKSg3Oni6PNtd
    OudjEK2hHcFQSlqF
    • Use the spudger to unsnap the black rectangular connection from the motherboard.

    • Use the Phillips 00 screwdriver to remove all of the screws that hold the motherboard in place.

  9. EcrPo5RDIHqqBjeS
    EcrPo5RDIHqqBjeS
    yVXIuRAecKvGWRLA

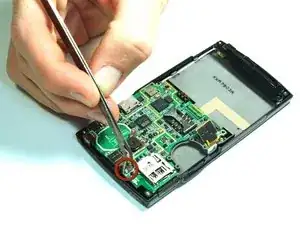

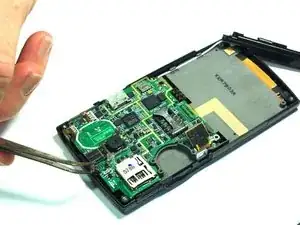

    • Use the tweezers to unsnap the connection between the motherboard and the speaker. The speaker is attached to the front casing.

  10. TNvQEvXhyVEWEJSW
    TNvQEvXhyVEWEJSW
    BEfm6ZDnIc1nTFQK

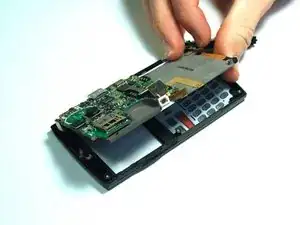

    • Once all of the connections have been snapped off of the motherboard, the motherboard can be removed.

    • Lift up on the motherboard and it will come free of the front casing.

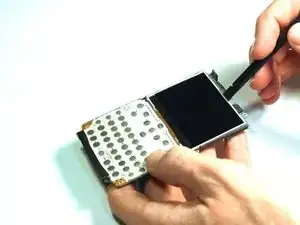

  11. ZGhUBHKIchYhVodZ
    ZGhUBHKIchYhVodZ
    NY4mP3AeORustdP3
    auPeUFTaTOWR4Cfn

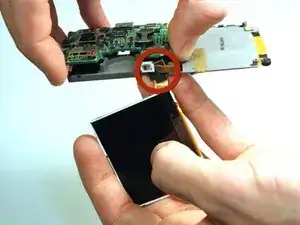

    • Use the spudger to break the glue that bonds the screen to the logic board.

    • Remove the screen from the logic board. The screen will still be connected by a gold ribbon connection.

    • While gently lifting upwards on the green part of the logic board, slide the gold ribbon connected that is to the screen through the space in the side of the logic board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
