Samsung Blast Keyboard Replacement

Geschrieben von: Jordan Taylor
  • Kommentare: 0
Samsung Blast Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

  1. r5qr5vRMHtbaZDDT
    r5qr5vRMHtbaZDDT
    HIXCQLE2Qfa4rB1E

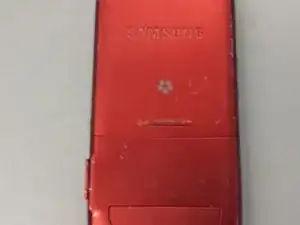

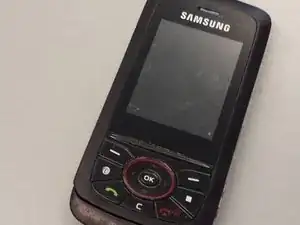

    • Your phone should look like this before disassembly.

  2. pJO24pNhjlIfjHsY
    pJO24pNhjlIfjHsY
    S2LWfRpwMALFSEaj

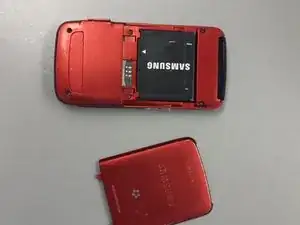

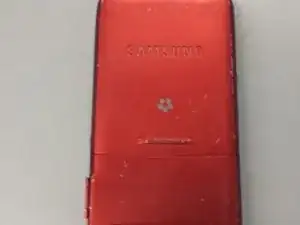

    • Remove the battery cover by sliding the back panel up. This will expose the battery.

  3. Sepvc1FHPELPMkT3

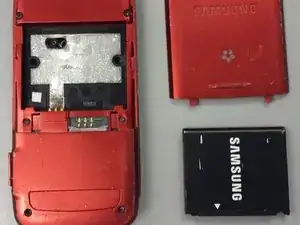

    • Lift up the top portion of the battery and pull it out.

    • Next, slide the sim card out of its socket and set it aside.

  4. TsCOIEP5oAxjSOdE
    TsCOIEP5oAxjSOdE
    333OojaOki62RIps

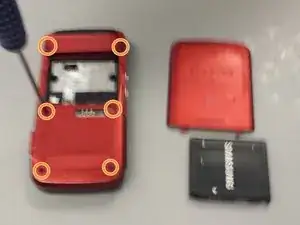

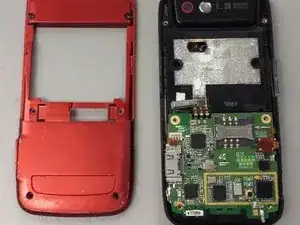

    • Use a Phillips #00 Screwdriver to unscrew the six small screws that secure the back of the case.

    • The top two screws are connected to the back cover. They will not come off once unscrewed.

    • Remove the case by prying around the edges.

    • Note the positions of button pads for reassembly.

  5. OrmtFG54u1ZIteIT
    OrmtFG54u1ZIteIT
    sx1PhZjJwwJbb1q2

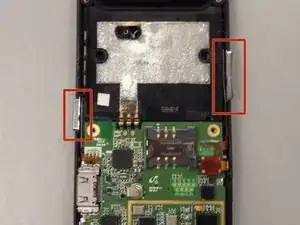

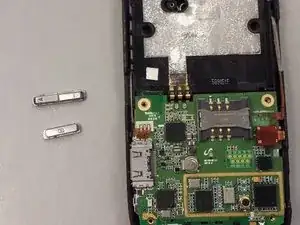

    • Remove the buttons for the camera and volume.

  6. JD1PkJqnDXD35ckw
    JD1PkJqnDXD35ckw
    6gVHGRUge2FZIgEH
    xqtRHKIDBHNrDOBL

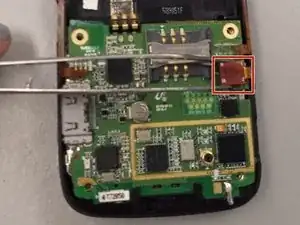

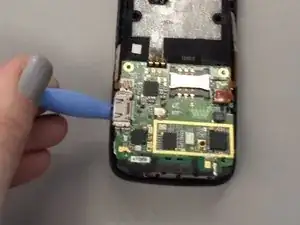

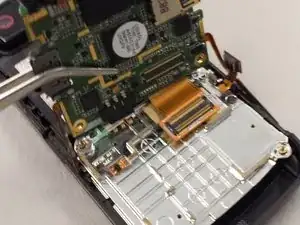

    • Use a prying tool to detach the motherboard from main body.

    • Carefully detach the motherboard from the two connectors.

    • You could also use a pry tool for the second step.

    • Be careful with the motherboard as not to scrape or damage its components.

  7. krGKYkAfARAnFjFk
    krGKYkAfARAnFjFk
    31RUBA4plsYVABGO

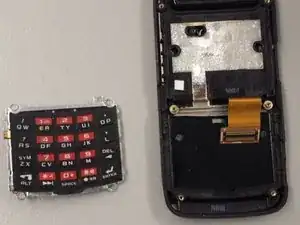

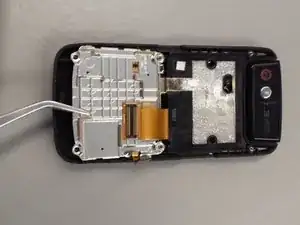

    • Slide the keyboard straight up to free it from its alignment pins.

    • Swap the broken keyboard with a replacement here, and follow the repair steps in reverse order for reassembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
