I noticed that there was not to much information about working on this phone. I received one in a non-working condition and figured it would be a good chance for some guides. The phone is easy to work on and no hidden screws or clips, no excessive glue. A straight forward no nonsense phone.
Werkzeuge
-
-
Here is the Samsung SCH-U380 Brightside
-

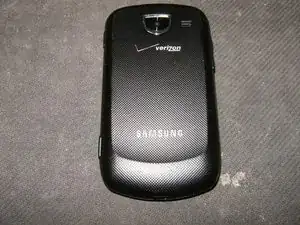

Turn it over to gain access to the battery.
-
Remove the backcover by simply pulling it off the phone from the top down
-
-
-

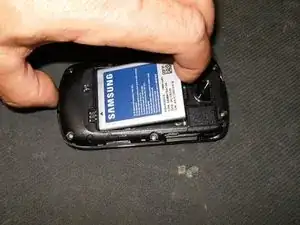

Remove the battery
-

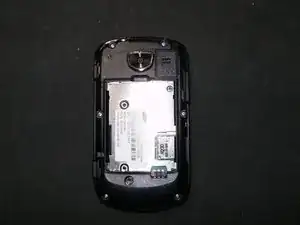

Remove the six Phillips screws from the back frame
-

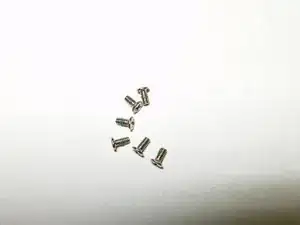

All six screws are identical M1.5X3
-
-
-

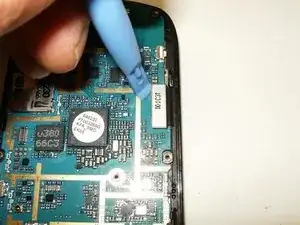

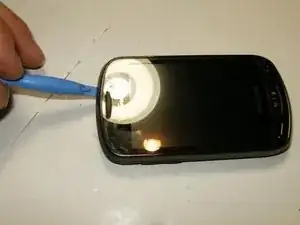

Use a plastic opening tool or similar tool to separate the top from the bottom frame. Applying slight pressure in a downwards direction will disengage the plastic clips
-
Continue to slide the tool along the slot until you feel the plastic locks disengage
-

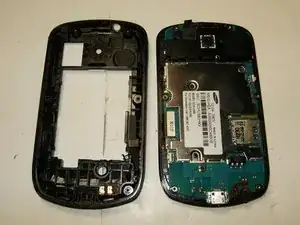

Once all locks have released, the bottom frame can simply be removed.
-
-
-

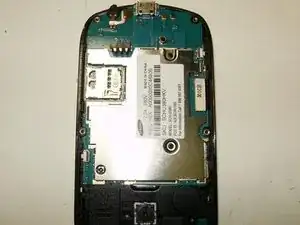

Remove the two Phillips screws from the EMI shield.
-

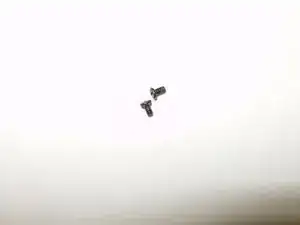

Both screws are identical M1.5X2
-

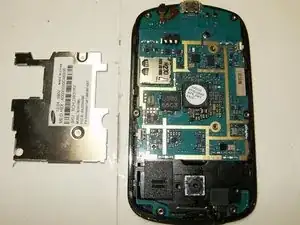

Remove the EMI shield
-
-
-
Detach the LCD connector.
-
Remove the logic board
-

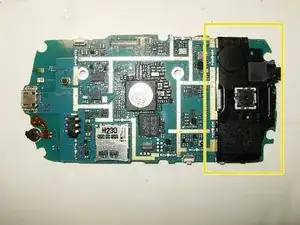

This is the speaker module. In the center is the camera, but it is not part of the module.
-
-
-

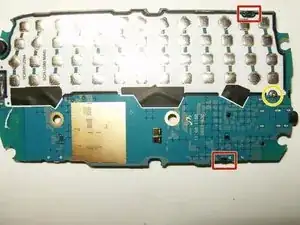

turn the logic board over. The speaker module is held in place
-
by one Phillips screw
-
and two clips
-
Remove the Phillips screw.
-
It is a M1X2 Phillips screw
-
Next disengage one of the clips by simply applying some sideways pressure with your fingernail. This will loosen the module.
-
-
-

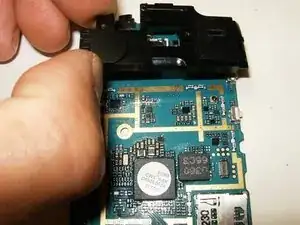

Turn the logic board around. With the speaker module loose, simply lift it off the board.
-
Speaker module removed.
-

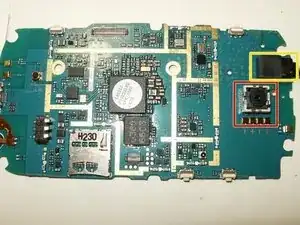

Camera
-
and audio jack
-
are not part of this module and will remain on the board.
-
To reassemble your device, follow these instructions in reverse order.
