Samsung CLP-300 Black Toner Transfer Unit Replacement

Geschrieben von: Heather Howard
  • Kommentare: 2
Samsung CLP-300 Black Toner Transfer Unit Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

Keine Schätzung

Einleitung

Follow these steps if you are experiencing uneven print quality or lines in your printed documents.

  1. KZNQmlyEEUQVfMwl

    • Turn the printer off and wait a few minutes for it to cool.

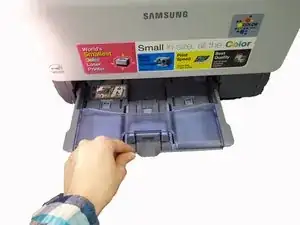

  2. QFYKl3dddUAVxuPS

    • Pull paper tray out and set aside.

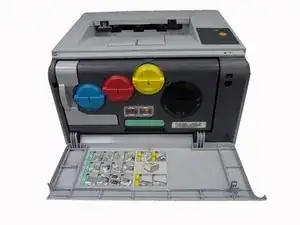

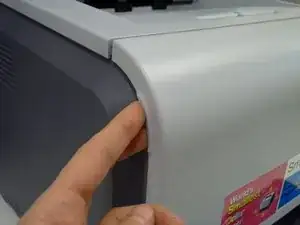

  3. 5IBeUWoWXUBMenr5
    5IBeUWoWXUBMenr5
    edaHiG4sCpPeROZR

    • Open the front cover.

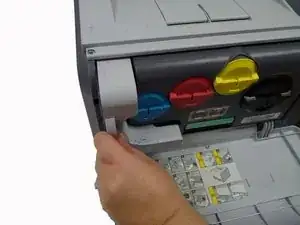

  4. 2bQabYT13QeDxgIn

    • Pull the waste toner container out of the printer using the handle.

    • Make sure to keep waste toner container upright to avoid spillage.

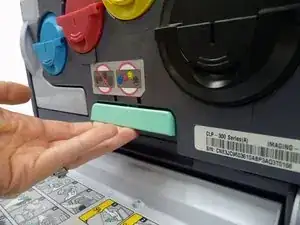

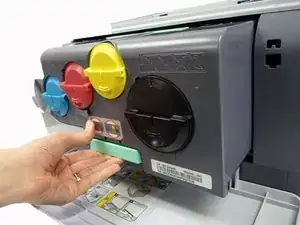

  5. VwIIrpicrSjGPZyD
    VwIIrpicrSjGPZyD
    rj1aj3KWt6X1KX3m
    fRX6fjnU1AMHFMWM

    • Pull the imaging unit out of the printer using bottom handle.

    • Use green handle on top of imaging unit to steady unit as you pull it out.

    • At this point you can set the printer aside as you will only need the imaging unit to continue repair.

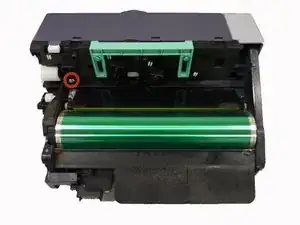

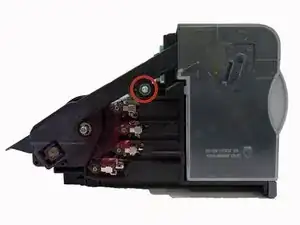

  6. JcclJMpMpfKYjeXC
    JcclJMpMpfKYjeXC
    Lv1oO6tgcwSvWhaZ

    • Remove these two screws.

    • Do not expose imaging unit to light for more than a few minutes. Covering unit with a piece of paper is sufficient protection while you complete repair.

  7. RwWgbUHCYFSkUhvX

    • Carefully pry plastic arm away from main unit.

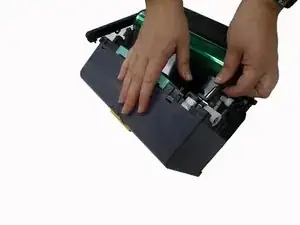

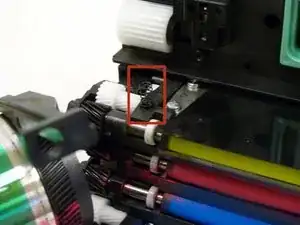

  8. utsqQGwSpHcEbFtl
    utsqQGwSpHcEbFtl
    tnjGhURsWIfy2EGv
    tYfDrBrOK4OZxINU

    • Carefully pry plastic from screw base so that the entire organic photo conductor piece slides open to the left.

    • When removing the organic photo conductor take care to not lose the small spring on the back left.

    • At this point you may want to put on plastic gloves to keep from staining hands with printer ink.

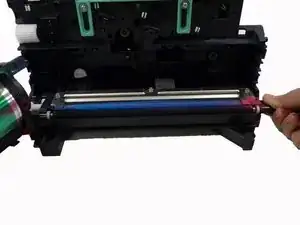

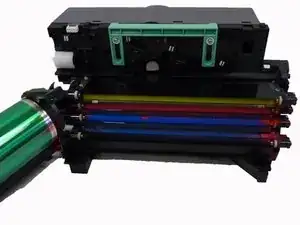

  9. uQE1QkBy5vhEdo1K
    uQE1QkBy5vhEdo1K
    1wwRddqXOKPdnZR6

    • Slide each toner transfer unit out separately, placing all aside except for the black toner transfer unit.

    • Keep toner rollers level to avoid toner spillage.

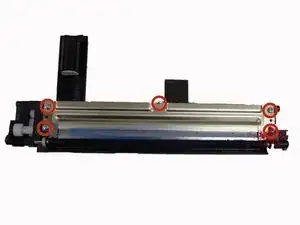

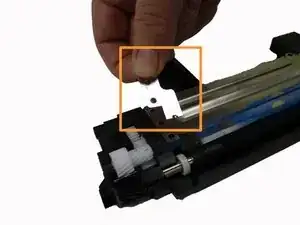

  10. FcpQ5OE25bhcb1NQ
    FcpQ5OE25bhcb1NQ
    Ry61D4WLNhHbUWWU
    uEkkojV54tItvuTy

    • Remove these five screws from the top of the black toner transfer unit.

    • Remove main and smaller z-shaped plates.

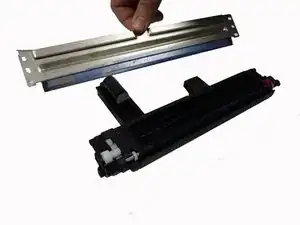

  11. Y1o22DlXNk4iAGVK
    Y1o22DlXNk4iAGVK
    xiWOdXC6nNNq1KZ6

    • Remove these three screws from the right end of the toner transfer unit.

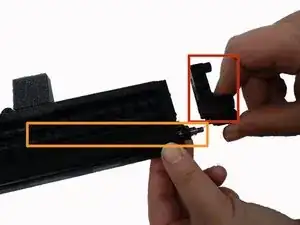

  12. VqDlXoUtwTdtt1JF

    • Remove plastic end piece.

    • Gently pull out black toner roller.

    • Insert new roller in place of old roller turning slightly to fit.

    • Be careful not to pinch small foam square when inserting new roller.

    • Cover new roller with toner by rotating roller by hand.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Heather Howard

Mitglied seit: 15/10/14

586 Reputation

2 Kommentare

I need more information pertaining step 8. In order to separate the parts, in which directions should the be moved first and where is the best point to apply force ?

Bernd Dreyer -

I need more information for step 12: I removed the old roller. Unfortunately I don't know anymore how exactly the metal discs and the white plastic rings are placed.

Daniel Roller -
