Samsung Captivate 3.5mm Headphone Jack Replacement

Geschrieben von: Christopher
  • Kommentare: 2
Samsung Captivate 3.5mm Headphone Jack Replacement

Schwierigkeitsgrad

Difficult

Schritte

11

Zeitaufwand

15 - 30 Minuten

Einleitung

Use this guide to replace your captivates 3.5mm headphone jack.

  1. EybUoyOHCfFVhKId

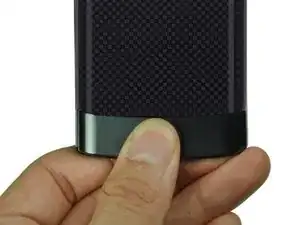

    • Remove the back cover by pressing on the bottom section of the phone and sliding the bottom piece downward.

    • Lift up the back cover.

  2. QTmnfmmV1NUlLDEt

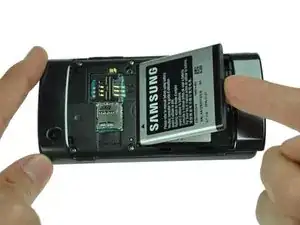

    • Place your finger on the bottom of the battery and lift to remove.

  3. dZLFWq1tnZfZ3pMw

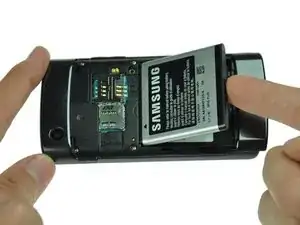

    • Replace the old battery with the new one.

  4. jXmfv2gShBUAliBW

    • Insert the spudger underneath the bottom section of the phone.

    • Gently lift and push the spudger to slide the bottom section down to reveal two hidden screws.

  5. JBrMmkHFGr6MQu2B

    • Remove the six 4.5mm #000 Phillips screws.

  6. 5X2vNmDSgLFUaNuK
    5X2vNmDSgLFUaNuK

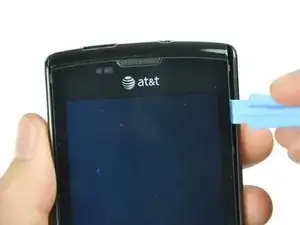

    FCrTFGPC6qYKQbeT
    ajWddd55oyIbwOFq

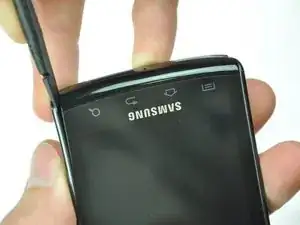

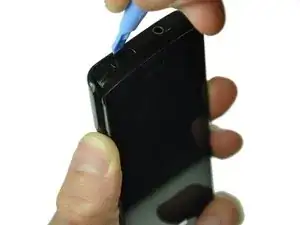

    • Starting at a bottom corner, use the spudger to separate the rear case from the front display.

    • Move the spudger towards the top on both sides. The plastic opening tool is easier to use for this step.

    • Be careful when detaching the top. Free each side, stopping short of the center of the cover. Apply backward pressure on both corners with a finger applying pressure on the center, and slide the whole back cover toward the bottom of the device. Note: forcing the cover can result in cracked plastic.

  7. 5cFqIQlECQFFjDQp

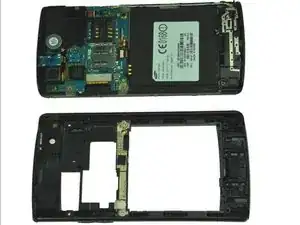

    • Separate the rear case from the phone.

  8. v6oqowFvObPkJIRP
    v6oqowFvObPkJIRP
    eV1Jdq6B3fExLpPD

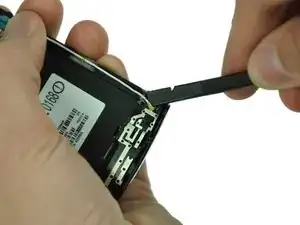

    • Use a spudger tool to pry up the antenna cable from the connector on the motherboard.

    • Pry up the other end of the cable from the connector on the antenna array.

  9. J21AIIObsnvarwHA
    J21AIIObsnvarwHA
    awPOZDvJHtHuRrUU
    jkDfPFb1WjlYDxdH

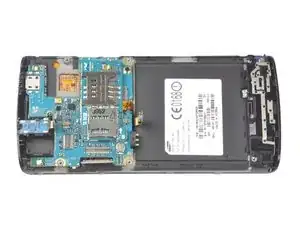

    • Use a spudger to disconnect the three highlighted connectors.

    • Pry straight up and be careful to pry against the connector, not the socket on the motherboard itself.

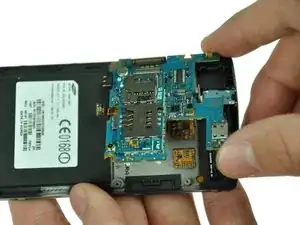

  10. WhGRBqgGYSIBcYYE

    • Use your fingers to lift up the logic board from the assembly.

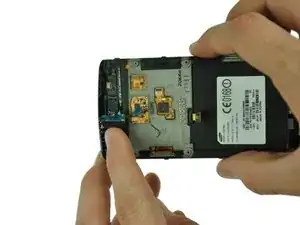

  11. nJDJrfIdRpvPv2At
    nJDJrfIdRpvPv2At
    igPoBFhbEhMYNemo

    • Gently pull up on the audio jack, taking the attached ribbon cable with it.

    • There is a small amount of glue holding the ribbon cable that attaches the audio jack to the earpiece.

    Be careful when reassembling rear cover as there are 2 tabs at the top of the case that can easily bend and eventually crack of giving no support to the top closure.

    AB Computer Services -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Christopher

Mitglied seit: 06/10/11

643 Reputation

Ein Kommentar

Between steps 7 and 8, there are a number of steps missing, including the removal of the camera, and the removal of the speaker assembly.

These can be found on the "Mother Board" repair manual, back on the device page.

~Desmond

Mobile Rapid Response Unit -
