Sometimes the earpiece can become damaged or loose and needs to be replaced. Follow this guide to fix this problem.

  1. EybUoyOHCfFVhKId
    • Remove the back cover by pressing on the bottom section of the phone and sliding the bottom piece downward.

    • Lift up the back cover.

  2. QTmnfmmV1NUlLDEt
    • Place your finger on the bottom of the battery and lift to remove.

  3. dZLFWq1tnZfZ3pMw
    • Replace the old battery with the new one.

  4. jXmfv2gShBUAliBW
    • Insert the spudger underneath the bottom section of the phone.

    • Gently lift and push the spudger to slide the bottom section down to reveal two hidden screws.

  5. JBrMmkHFGr6MQu2B
    • Remove the six 4.5mm #000 Phillips screws.

  6. 5X2vNmDSgLFUaNuK
    5X2vNmDSgLFUaNuK
    FCrTFGPC6qYKQbeT
    ajWddd55oyIbwOFq
    • Starting at a bottom corner, use the spudger to separate the rear case from the front display.

    • Move the spudger towards the top on both sides. The plastic opening tool is easier to use for this step.

    • Be careful when detaching the top. Free each side, stopping short of the center of the cover. Apply backward pressure on both corners with a finger applying pressure on the center, and slide the whole back cover toward the bottom of the device. Note: forcing the cover can result in cracked plastic.

  7. 5cFqIQlECQFFjDQp
    • Separate the rear case from the phone.

  8. v6oqowFvObPkJIRP
    v6oqowFvObPkJIRP
    eV1Jdq6B3fExLpPD
    • Use a spudger tool to pry up the antenna cable from the connector on the motherboard.

    • Pry up the other end of the cable from the connector on the antenna array.

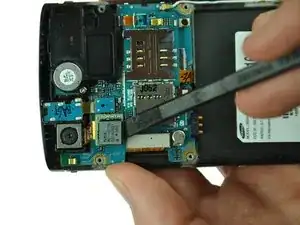

  9. x2BOSxVYCBr5NOey
    • Use the spudger tool to pry up the chip labeled "NEC." This releases the chip.

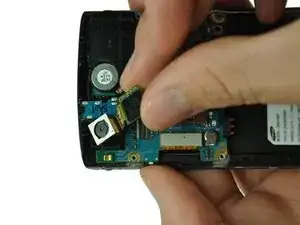

  10. nCUWCHWHLbjvxOIr
    • Gently lift the camera assembly out of the plastic housing.

  11. J21AIIObsnvarwHA
    J21AIIObsnvarwHA
    awPOZDvJHtHuRrUU
    jkDfPFb1WjlYDxdH
    • Use a spudger to disconnect the three highlighted connectors.

    • Pry straight up and be careful to pry against the connector, not the socket on the motherboard itself.

  12. WhGRBqgGYSIBcYYE
    • Use your fingers to lift up the logic board from the assembly.

  13. nJDJrfIdRpvPv2At
    nJDJrfIdRpvPv2At
    igPoBFhbEhMYNemo
    • Gently pull up on the audio jack, taking the attached ribbon cable with it.

    • There is a small amount of glue holding the ribbon cable that attaches the audio jack to the earpiece.

    Be careful when reassembling rear cover as there are 2 tabs at the top of the case that can easily bend and eventually crack of giving no support to the top closure.

    AB Computer Services -

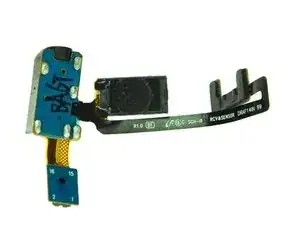

  14. PCRJnbITcX2KxkYo
    • The earpiece is attached to the 3.5mm audio jack. You will need to replace the entire assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
