Samsung Captivate Glide Speaker Replacement

Geschrieben von: Nicholas Mira
  • Kommentare: 0
Samsung Captivate Glide Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

25 Minuten

Einleitung

How to remove the main speaker of the Samsung Captivate Glide.

  1. FoW1HxGfJJptvkXG
    FoW1HxGfJJptvkXG
    uKcjE3tMSlZi6SVs
    tSXjsEPAwGu1vmDg

    • Remove back cover using fingernail or plastic opening tool. The cover pulls up and off.

  2. V1IyAYWbsLdZVwvK
    V1IyAYWbsLdZVwvK
    tfjihCywYTXRTdL6

    • Remove battery with plastic opening tool or finger.

  3. xTCETVVsRceJHXuZ
    xTCETVVsRceJHXuZ
    3OlWPkpvhYM3SYPA

    • Remove the seven screws from backplate using the #00 screwdriver.

  4. GLGqOQA3UpOPHXOF
    GLGqOQA3UpOPHXOF
    GtGtnMWPBnEKMjeK
    uKpOKvPPtvwsDYy1

    • Remove the back plate using the plastic opening tool.

    • There is a lip on each side, and both must be pried up.

    • You can work your way around the edges after prying the two sides.

  5. qR1YKZkaLT1YcMEY
    qR1YKZkaLT1YcMEY
    Il2XYXWyJuWCKPMF

    • Use the plastic opening tool to detach the two tabs connecting the motherboard to the base of the phone.

  6. lGXFCxuyejQsbBt6

    • Disconnect the antenna cable from the motherboard using tweezers.

  7. lRUknAx2Un2EGBUU

    • Remove the single screw connecting the motherboard to the base of the phone by using the #00 Phillips screwdriver.

  8. CQ5OJ4OKxXRO3W5w
    CQ5OJ4OKxXRO3W5w
    5haaiLX2NdUIqgUN

    • Lift the motherboard out of the base of the phone.

  9. JZ2HblQIUBePEgTR

    • Using the plastic opening tool, detach the tab connecting the speaker to the motherboard.

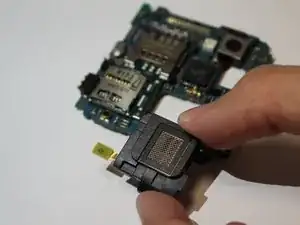

  10. MiQtWdB2TBAGGPKm

    • Remove speaker manually.

    • There is nothing connecting it to the motherboard, so just pull.

Abschluss

To reassemble your device, follow these instructions in reverse order.
