Samsung Chromebook 2 Screen Replacement

Geschrieben von: MacKenzie Colson
  • Kommentare: 1
Samsung Chromebook 2 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

5 - 15 Minuten

Einleitung

You may need to perform this replacement if your Chromebook 2 has a faulty screen, resulting in display issues. Ensure your device is powered off before beginning this replacement.

In order to reduce shock hazard during this replacement, the steps to remove the battery are included as a prerequisite.

  1. AMwGJuDSJYR1ERBD

    • Make sure your Chromebook is turned off before you begin.

    • Set the labtop face down on a flat surface.

  2. CtKArBwuKaMudEmb
    CtKArBwuKaMudEmb
    QmFRYmW4oLyIo5qY
    1BjflJm5WrkuShAK

    • Remove the nine 5 mm screws on the bottom cover using a Phillips #0 screwdriver.

  3. OMAdWBvGo1qu3Wua
    OMAdWBvGo1qu3Wua
    Q3mSZHLhO1QaOpT4

    • Loosen the back cover panel with a plastic opening tool, and work it all the way around the computer.

  4. aAEARWARlIEUctsD
    aAEARWARlIEUctsD
    MWxYRUIg5BGr6OLp

    • Once the cover is loose, remove the back cover panel using your hands.

  5. lg5ZlvCTUHOOnA5O
    lg5ZlvCTUHOOnA5O
    TIXKejjiCOuIGCHj

    • Unscrew the four 4 mm screws holding the battery in place with a Phillips #0 screwdriver.

  6. RbxUDlSjeOfM3B5A
    RbxUDlSjeOfM3B5A
    byDN21e4Wm6cGdlU
    ISgY11yn5xvuNdKo

    • Disconnect the wire that connects the battery to the motherboard by pulling upward.

  7. ERaSkgQRFaIdCMKF
    ERaSkgQRFaIdCMKF
    Ee6ELfOARqv6BcOM

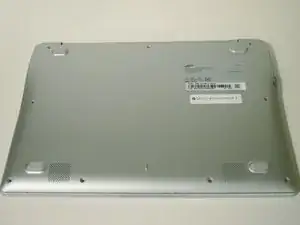

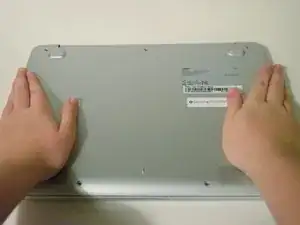

    • Replace the back cover by clicking it into place with your hands.

    • No need to replace the screws, this is just to protect the internal hardware while working on the screen.

  8. RNEiAAixqBsaaaWF
    RNEiAAixqBsaaaWF
    Pdx6HsSIOBHqIAnB

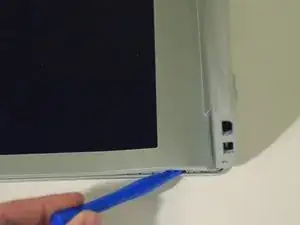

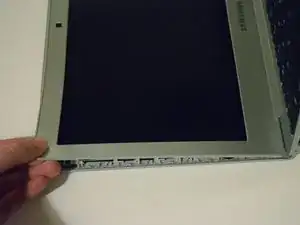

    • Open the laptop and place it so that the back of the screen is laying on a flat surface.

    • Insert a plastic opening tool between the front cover and plastic screen trim.

    • Work the plastic opening tool all around the trim.

    • Don't be afraid to use your hands to pull the trim from the front panel.

  9. ndSfJBxuAvNDfXTD
    ndSfJBxuAvNDfXTD
    wpxVw41Mq3haic61

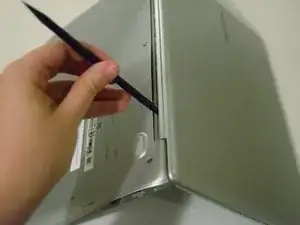

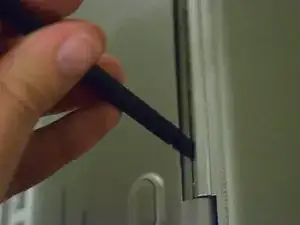

    • Flip the computer over so that the keys and screen are facing down.

    • Insert the spudger between the back and front panel, at the hinge, and push the trim out.

  10. r3aJFFehA6wAERkD

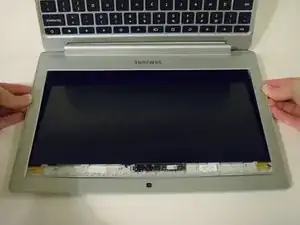

    • Place the laptop in a position where it is resting on the back of the screen.

    • Remove the trim from the front panel by pulling up with your hands.

  11. 6CVYO6ZVbjikFuta
    6CVYO6ZVbjikFuta
    euLbaeSkDvmQYyyW

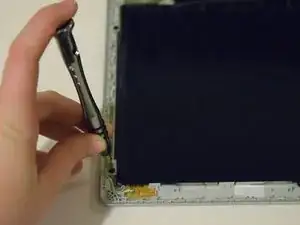

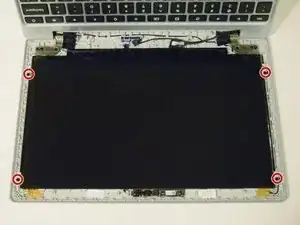

    • Using a Phillips #0 screwdriver to unscrew the four 3 mm screws keeping the screen in place.

  12. q52XBwAeFWh5sRlS
    q52XBwAeFWh5sRlS
    VVn6AwFMCcm4GfNA

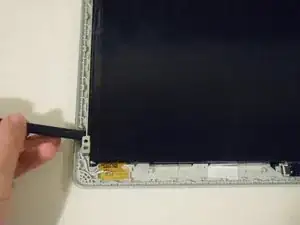

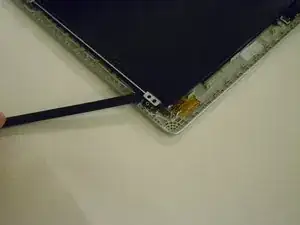

    • Using the spudger, pry the screen loose from the front panel.

    • Do not try to remove the screen yet, it is still connect by a wire.

  13. Ox4IycBIQkIwlerR
    Ox4IycBIQkIwlerR
    mTvkkUS5rVQE3aBJ
    I34UbUWdiRLFhrfj

    • Place the laptop in an upright position.

    • When you place the Chromebook in this position the screen may fall off, so make sure to hold onto it.

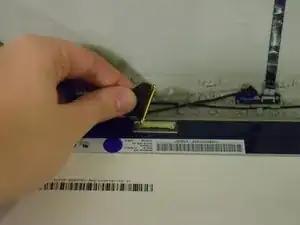

    • Pull back the screen to locate the LCD cable, and disconnect it by pulling the black tape that surrounds it towards you.

  14. FjkZKWmagNLgTjHa

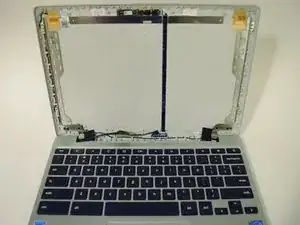

    • Pull the screen from the front panel using your hands to fully remove it.

    . I bought the replacement display, ebay, same number, in London, I am in Mexico, and the screen does not have the 4 mounting ears, even my xe500c21 brings them in another position. so put it in, not having read this manual do not remove the battery, but at least turn it off. And that's it, now all the previous display, with a straight clamp I bend and break the ears, I lower them to make them narrow, bend a little, screw them, protrude in a thickness of sheet but fix it, another solution would be silicone.

    WA BH -

Abschluss

To reassemble your device, follow these instructions in reverse order.
