Samsung Chromebook 2 XE503c12 Screen Replacement

Geschrieben von: Jordan W Jones

Kommentare: 0

Samsung Chromebook 2 XE503c12 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 - 25 Minuten

Einleitung

Issues with a broken or cracked screen can be resolved by following this guide. The only tools required will be a plastic prying device, and a standard Phillips #0 Screwdriver

Werkzeuge

Schritt 1

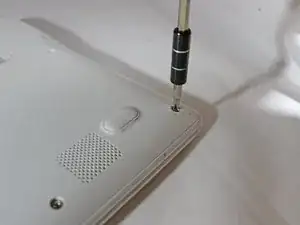

Flip device over so that the underside is facing up.
Remove nine, 7mm PH#0 screws from the bottom.

Schritt 2

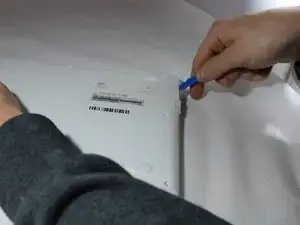

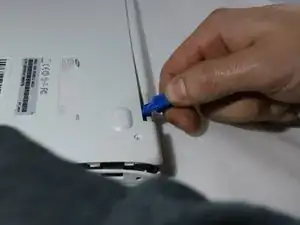

Using the plastic opening tool, pry open the bottom of the Chromebook case, working all around the computer.
Lift the panel out of the way to reveal the battery.

Schritt 3

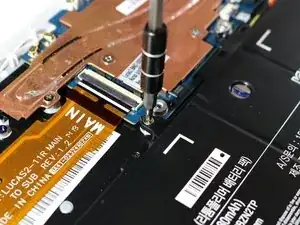

Remove four, 5mm Phillips #0 screws connecting the battery to the laptop

Schritt 4

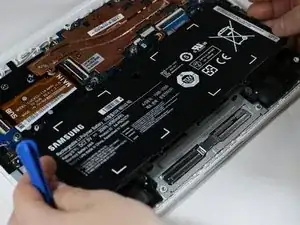

Lift the battery, and pull it up and towards you, away from the connector.
Be sure to lift gently to avoid damage to connector

Schritt 5

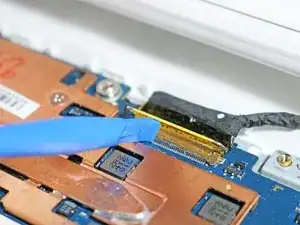

Using a plastic opening tool, pry the connector up from the contact.
Remove the battery from the device.

Schritt 6

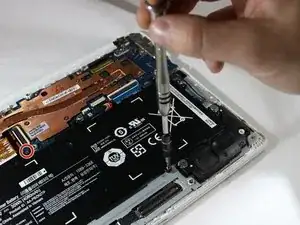

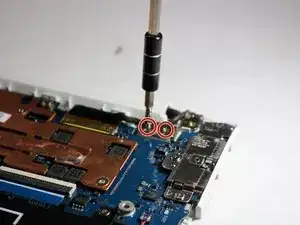

Remove the four 5mm Phillips #0 screws on the hinges.

Schritt 7

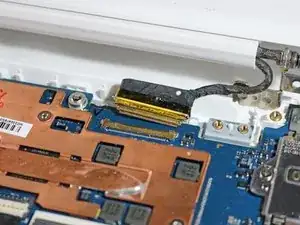

Unplug two auxiliary wires leading to the top lid.
Using the plastic prying tool, lift the hinge on the connector up and pull the connector away.

Schritt 8

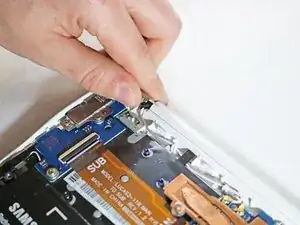

Lift the hinges up and separate the top lid from the bottom casing.

Schritt 9

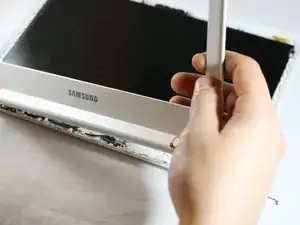

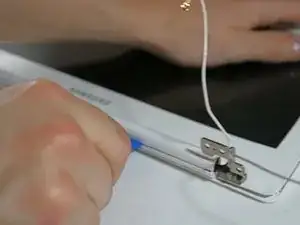

Using the plastic prying tool, carefully pry the casing apart from the screen.
When prying case apart, there is a risk of screen and parts of the casing shattering and cutting you.
