Samsung Chromebook 2 XE503c12 Speakers Replacement

Geschrieben von: Britney Betterman
  • Kommentare: 0
Samsung Chromebook 2 XE503c12 Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

Issues with horrible sound quality or bad speakers can be fixed by following this guide.

  1. Rr1ot6WdbQjr4WUE
    Rr1ot6WdbQjr4WUE
    mEhTFHbC3CDZTOWO

    • Flip device over so that the underside is facing up.

    • Remove nine, 7mm PH#0 screws from the bottom.

  2. 61G2aXYlseETueHG
    61G2aXYlseETueHG
    cccPXd6yBt2gYeIN

    • Using the plastic opening tool, pry open the bottom of the Chromebook case, working all around the computer.

    • Lift the panel out of the way to reveal the battery.

  3. ZTFxVmrLGq5oHLkl
    ZTFxVmrLGq5oHLkl
    oJd64Ejs1AemtaKG

    • Remove four, 5mm Phillips #0 screws connecting the battery to the laptop

  4. xZ1bDAwbTPXnvmSm

    • Lift the battery, and pull it up and towards you, away from the connector.

    • Be sure to lift gently to avoid damage to connector

  5. dEQgdPEBjDBUgayn

    • Using a plastic opening tool, pry the connector up from the contact.

    • Remove the battery from the device.

  6. O2wLD6lkFtF2NXWD
    O2wLD6lkFtF2NXWD
    CeYleSbG22Evjyoy

    • Remove the connectors for each speaker.

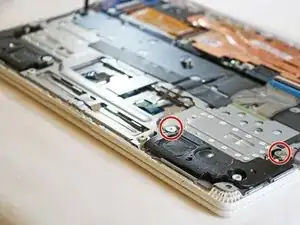

  7. 31fVSYpSSiwdNg3j

    • Remove two 7mm Phillips #0 screws from each speaker.

    • Pull speakers out of laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
