Einleitung

This guide will show you how to replace the daughterboard in a Samsung Chromebook 3. The right side USB and headphone jack are soldered to the board, requiring a full daughterboard replacement to fix a malfunctioning port.

  1. NtkCSxJVDsH5HvnH
    NtkCSxJVDsH5HvnH
    ASWccsBiNeZN5MaC
    • Place the Chromebook face down so that the bottom case is exposed.

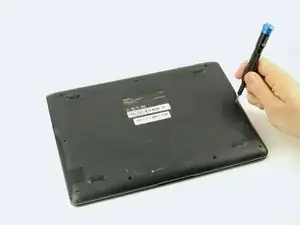

    • Using a Phillips #00 screwdriver, remove nine 4.6mm screws from the back casing.

  2. 31b6CoLM4wBmpjgw
    31b6CoLM4wBmpjgw
    PuqDJmYEgwFcWSHq
    ssbekGsHZr1OEFm6

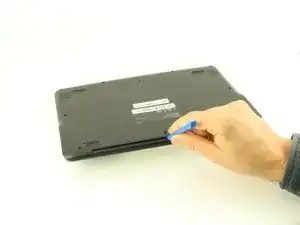

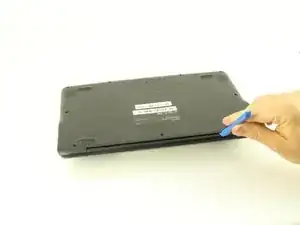

    • Use a iFixit opening tool to gently pry the case up from the vent on the hinge side of the Chromebook.

    • You should hear a popping sound as the connectors disengage inside the case.

  3. XjOMVLAYShdXT6Fq

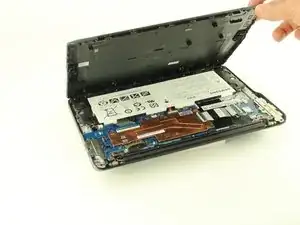

    • Lift the case up and off the device

  4. IxFabXxmsdJLsfYK
    IxFabXxmsdJLsfYK
    JVjtKgeeOosQHJfi

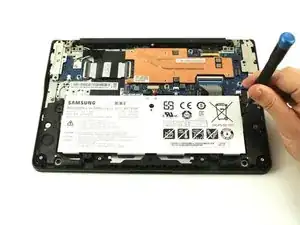

    • Locate the battery and remove the four 4.6mm screws at the corners which attach it to case using a Phillips #00 screwdriver.

  5. VChhWpQqUOZ5tDlT
    VChhWpQqUOZ5tDlT
    No6wBTu3SvUVN1rs

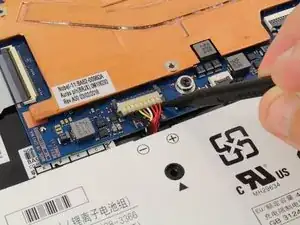

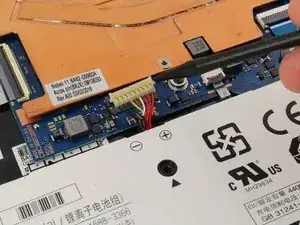

    • Use a spudger to gently pry the power cable cord upwards from the motherboard.

  6. RocF4tceA3ZEFXaF

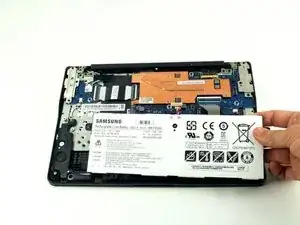

    • Lift the battery up and out from the case.

  7. bhmFVgofSH5PRrrI
    bhmFVgofSH5PRrrI
    GMoLWODXDbATpR5N

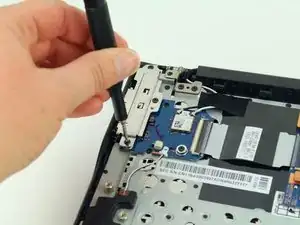

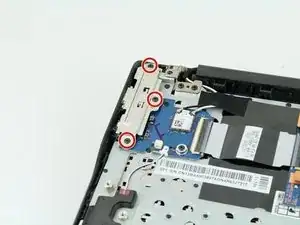

    • Before you begin the process of removing the daughterboard, you will need to remove the port case. Using a Phillips #00 screwdriver, remove the three 4.6mm screws.

  8. EBKIgXDnjDJido4F
    EBKIgXDnjDJido4F
    5MSXIOOKWoVwX2PI

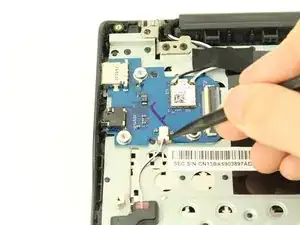

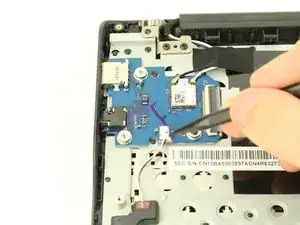

    • Use a spudger to unhook the cable connecter from the speaker cable.

  9. k2SipeoStv3sWWy3
    k2SipeoStv3sWWy3
    neecp1dA5CmyAnMq
    P3GiFJibLBjSPCmd

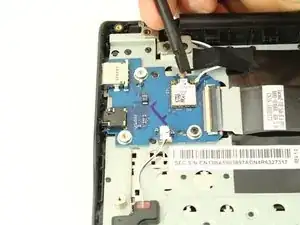

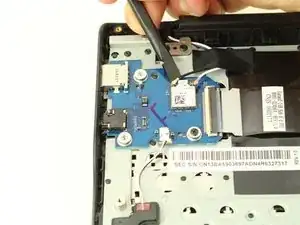

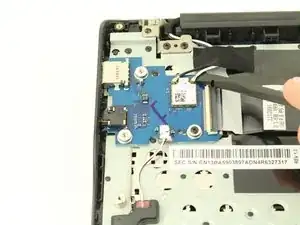

    • Pry the small coaxial cables upwards from the connecters on the wireless chip.

  10. rseAYqKwZkXuruUA
    rseAYqKwZkXuruUA
    JmQwwjWCeFL6oSWV

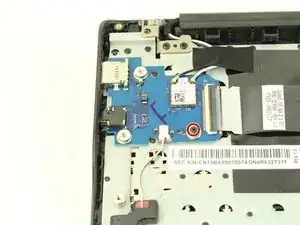

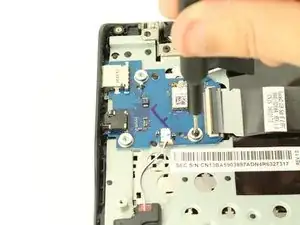

    • Using the Phillips #00, unscrew one 4.6mm screw from the daughterboard.

  11. GfIUy5oEShXlYPR5
    GfIUy5oEShXlYPR5
    ws5iTFbBeHv2wuy4
    u4qR3j1oMvAuFQKG

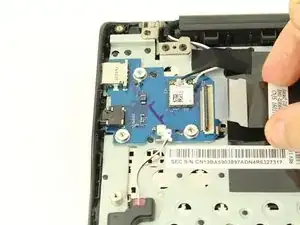

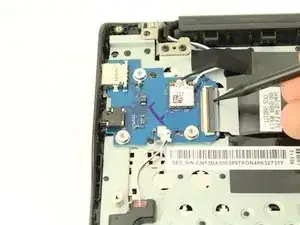

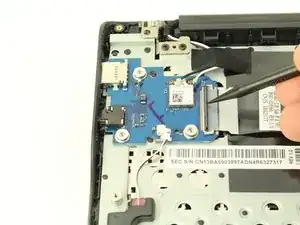

    • Use a spudger to lift the gray plastic bar on the zif connecter up, then use your fingers to remove the cable ribbon.

  12. NWZkGJaToqRUHsZx

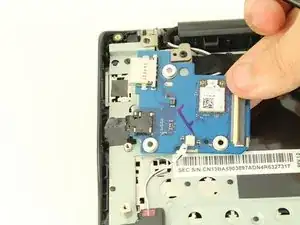

    • Loosen the daughterboard from the USB port with a spudger as there is some adhesive underneath, and you're ready to remove the daughterboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
