Samsung Chromebook 3 Display Replacement

Geschrieben von: Austin Blakely
  • Kommentare: 3
Samsung Chromebook 3 Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

40 - 50 Minuten

Einleitung

This guide will show a step by step process to replace the display on the Samsung Chromebook 3. You will need to remove the bottom case and battery prior to replacing the display.

  1. NtkCSxJVDsH5HvnH
    NtkCSxJVDsH5HvnH
    ASWccsBiNeZN5MaC

    • Place the Chromebook face down so that the bottom case is exposed.

    • Using a Phillips #00 screwdriver, remove nine 4.6mm screws from the back casing.

  2. 31b6CoLM4wBmpjgw
    31b6CoLM4wBmpjgw
    PuqDJmYEgwFcWSHq
    ssbekGsHZr1OEFm6

    • Use a iFixit opening tool to gently pry the case up from the vent on the hinge side of the Chromebook.

    • You should hear a popping sound as the connectors disengage inside the case.

  3. XjOMVLAYShdXT6Fq

    • Lift the case up and off the device

  4. IxFabXxmsdJLsfYK
    IxFabXxmsdJLsfYK
    JVjtKgeeOosQHJfi

    • Locate the battery and remove the four 4.6mm screws at the corners which attach it to case using a Phillips #00 screwdriver.

  5. VChhWpQqUOZ5tDlT
    VChhWpQqUOZ5tDlT
    No6wBTu3SvUVN1rs

    • Use a spudger to gently pry the power cable cord upwards from the motherboard.

  6. RocF4tceA3ZEFXaF

    • Lift the battery up and out from the case.

  7. 4PuUuVMKo4JtlLRW
    4PuUuVMKo4JtlLRW
    tG15yMQ1PrQiUx1H
    EUevaBRCrLKvClpg

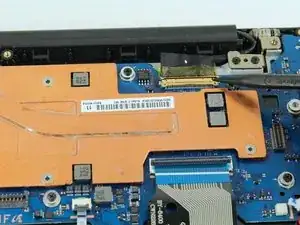

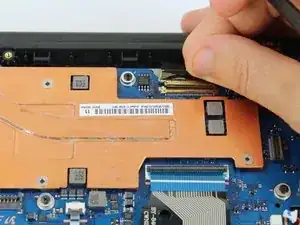

    • Disengage the gold connector joining the display and motherboard by flipping up the hinge with a spudger and gently disconnecting it with a spudger or your fingers.

  8. Th11WwydPeEyjjm3
    Th11WwydPeEyjjm3
    SZOP2LWCjNXvESHs
    yx3jZ1BbpUWbclgp

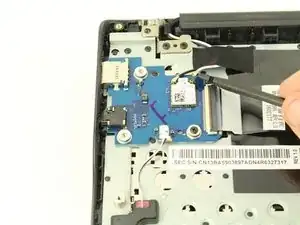

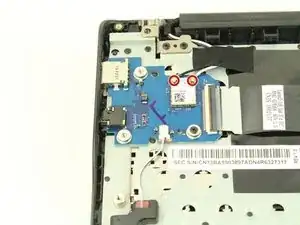

    • Next disconnect the small coaxial cables from the wireless chip on the daughterboard by prying upwards with a spudger.

  9. CuZOGMjXoaWXk5xL
    CuZOGMjXoaWXk5xL
    5ZmKNiQnYL5POTIO

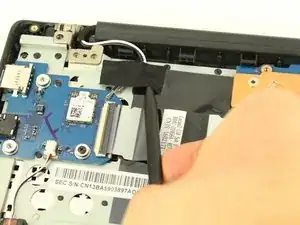

    • Flip up at least one side of the adhesive tape holding the coaxial cables in place. When the display is removed, the cables are coming with it!

  10. egB1cTeYp6cQcrXK
    egB1cTeYp6cQcrXK
    1K5qKlMiSBEIFi2U

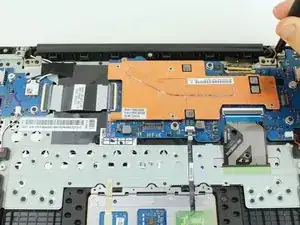

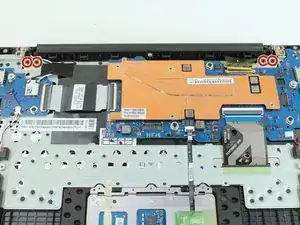

    • Finally, remove the four 4.6mm screws from the display mounts using a Phillips #00 screwdriver.

    • It might be easier to open the laptop before removing these screws as the display will only come off while in the open position.

  11. WZEN5GmC4ylsJLuC

    • Open the laptop and remove the display.

Abschluss

To reassemble your device, follow these instructions in reverse order.
