Einleitung
This guide illustrates the process of removing the Samsung Chromebook 3 XE500C13-K02US speakers.
-
-
Place the laptop back cover facing up to expose the screws.
-
Using a Phillips #00 screwdriver, remove nine 4.6mm screws from the back casing.
-
-
-
Use an iFixit opening tool to wedge in between the case and body of the laptop.
-
Once the tool is wedged in between the case and laptop, slide it around the entire laptop's edge to disengage the retaining clips.
-
-
-

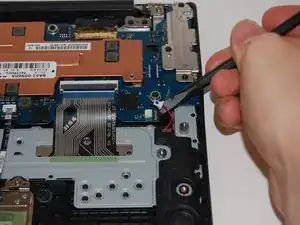

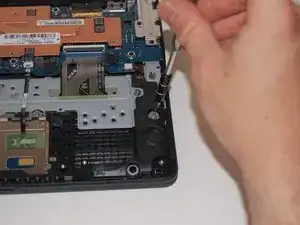

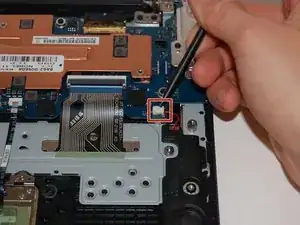

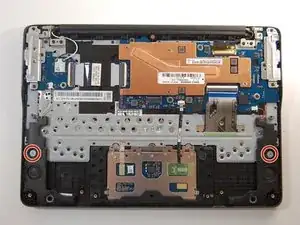

Use the spudger to pry the speaker connector sideways out out of the motherboard.
-

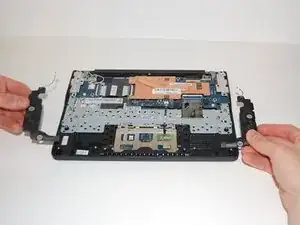

Repeat this step for the left speaker.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
