This guide demonstrates how to removing the Samsung Chromebook 3 XE500C13-K02US track pad.
-
-
Place the laptop back cover facing up to expose the screws.
-
Using a Phillips #00 screwdriver, remove nine 4.6mm screws from the back casing.
-
-
-
Use an iFixit opening tool to wedge in between the case and body of the laptop.
-
Once the tool is wedged in between the case and laptop, slide it around the entire laptop's edge to disengage the retaining clips.
-
-
-

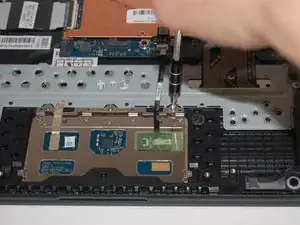

Remove the three 2.3mm screws along the top of the trackpad using a Phillips #00 screwdriver.
-
-
-
Lift the track pad from the top.
-
Slide the track pad away from yourself to clear the black plastic edge.
-

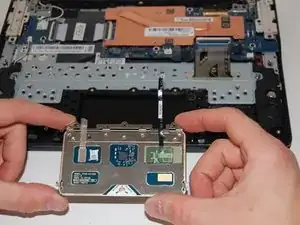

Lift the track pad up and out of the laptop.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
