Samsung Chromebook Pro Battery Replacement

Geschrieben von: Amber Castro-Beltran
  • Kommentare: 1
Samsung Chromebook Pro Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 - 5 Minuten

Einleitung

Use the guide below to replace the battery for the Samsung Chromebook Pro.

  1. XdNNvG4SX1GhxKkd
    XdNNvG4SX1GhxKkd
    PXakxHFHaQFtNkgd

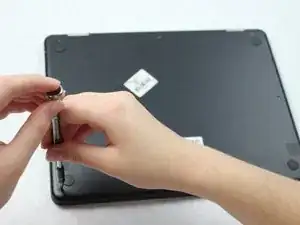

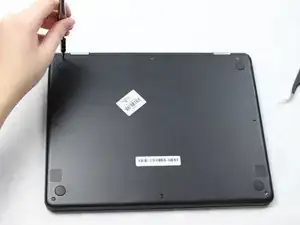

    • Remove the eight 30 mm screws from the edges of the case with the JIS J000 screw bit.

  2. ItxHANNuHIFFR6Ow
    ItxHANNuHIFFR6Ow
    crVHEMHAMctBGLKO
    QxCJWJLGFq6mnGfu

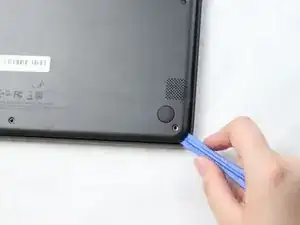

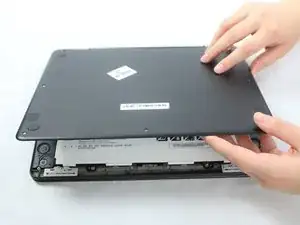

    • Slide the plastic opening tool in a corner at a steep angle, and lift to remove the outer case.

  3. uvKNPSV6WICjF5hw
    uvKNPSV6WICjF5hw
    tbvyQWW5O3dTrlyw

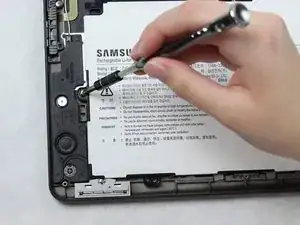

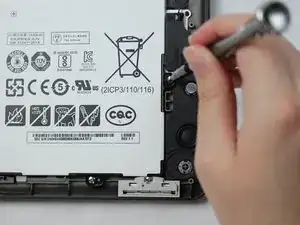

    • Remove the four 30 mm screws surrounding the battery with the JIS J000 screw bit.

  4. stWPvKYLVPFT1D2C
    stWPvKYLVPFT1D2C
    5Di2BrcUXVxdBLyu
    gPGwX2c5FpTvyuEK

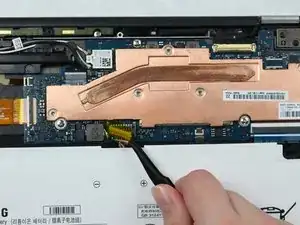

    • Lift the connecting wires to disconnect from the slot with the precision tweezers.

    • Lift battery to remove once the wire is disconnected.

Abschluss

To reassemble your device, follow these instructions in reverse order.
