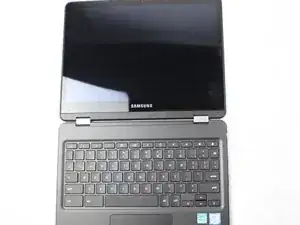

Replace the screen for the Samsung Chromebook Pro by following the guide below.
-
-

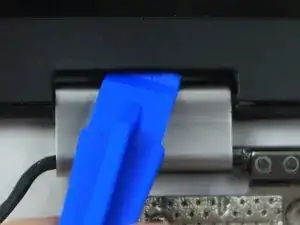

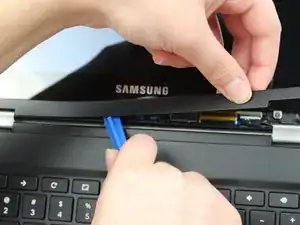

Insert the plastic opening tool between the hinge and plastic lining and pry upwards.
-

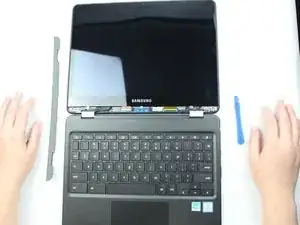

Continue to use the plastic opening tool along to the plastic lining to completely remove.
-
-
-

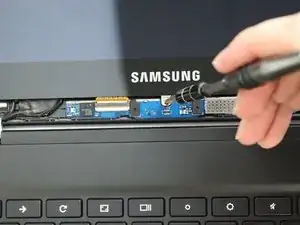

Remove the three silver 30 mm screws connected to the screen by using the JIS J000 screw bit.
-
-
-

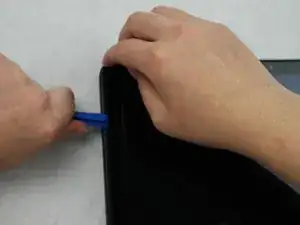

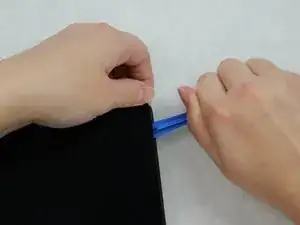

Begin lifting the screen by prying upward using the plastic opening tool.
-

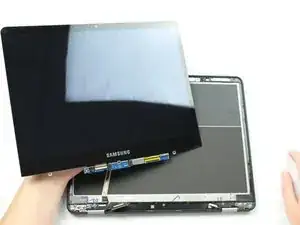

Work around the screen by lifting upward with the plastic opening tool until the screen is completely off.
-
-
-

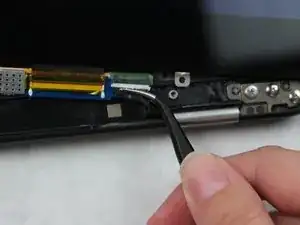

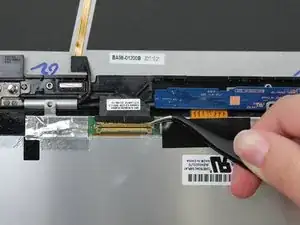

Locate the black and gold wire on the left side of the screen, and pry the bar upward using the precision tweezers.
-

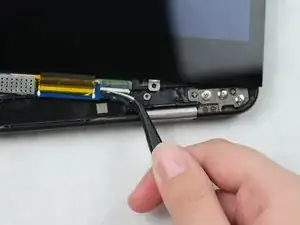

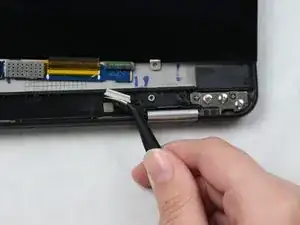

Disconnect the wire using the precision tweezers.
-
-
-

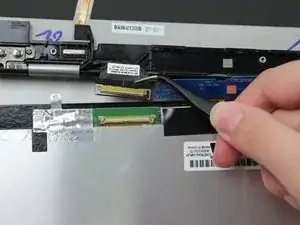

Disconnect the wire connected to the right side of the screen using the precision tweezers.
-
To reassemble your device, follow these instructions in reverse order.
