Samsung Chromebook Pro Speaker Replacement

Geschrieben von: Amber Castro-Beltran
  • Kommentare: 0
Samsung Chromebook Pro Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

4 - 5 Minuten

Einleitung

Follow the quick and easy guide below to replace the speaker for the Samsung Chromebook Pro.

  1. thnE3yacORWBAFs5
    thnE3yacORWBAFs5
    n2qEtnRuxYHtYSyl

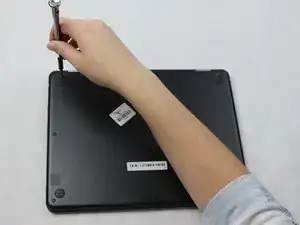

    • Remove the eight 30 mm screws from the edges of the case with the JIS J000 screw bit.

  2. rKiFAuMGamVKNfNR
    rKiFAuMGamVKNfNR
    PuIOc3MAPQbEDAsl
    GyTOQLrhuS4VY4Es

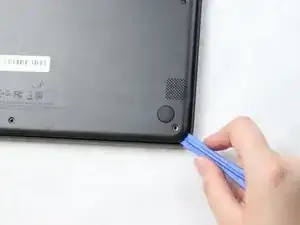

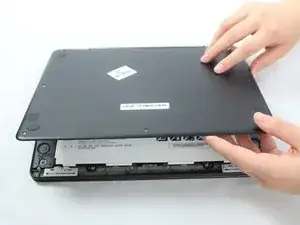

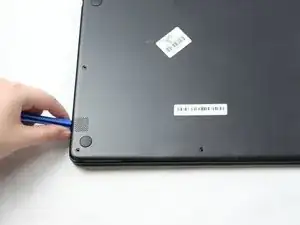

    • Slide the plastic opening tool in a corner at a steep angle, and lift up to remove the outer case.

  3. QFNaDwZMjGaAARNY
    QFNaDwZMjGaAARNY
    bdeEvqusVDkBQwuJ

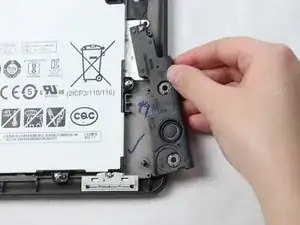

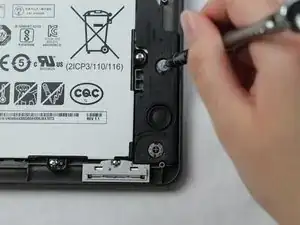

    • Remove the one 40 mm silver screw using the JIS J000 screw bit.

  4. pei3phPUsHiBynlD
    pei3phPUsHiBynlD
    aUWsEKtUXU1ubpOV
    V6wUSEF2QgEGsl6K

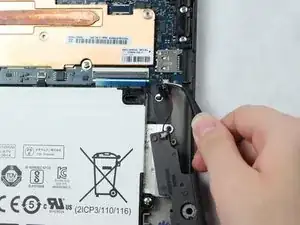

    • Using the precision tweezers lift the wire to disconnect.

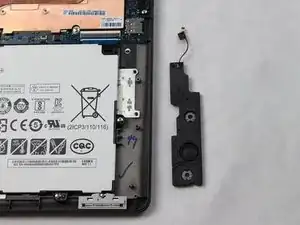

    • Remove the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
