Samsung Chromebook Series 3 Charging Port Replacement

Geschrieben von: Andrey Radchishin
  • Kommentare: 2
Samsung Chromebook Series 3 Charging Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

If your charger port is broken, this guide will teach you how to take apart your Chromebook and replace the faulty port.

  1. V2vjMkt2cq5RTQtQ
    V2vjMkt2cq5RTQtQ
    NitJuVahLcf1HgMQ
    SBXI3UGOLCS3oDDd

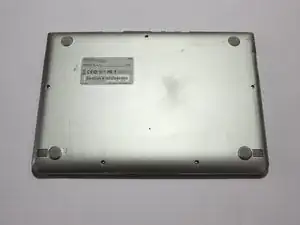

    • Lay the Chromebook down so that the bottom cover is facing up.

    • Remove the rubber feet on the four corners of the Chromebook in order to get to the screws underneath. They are stuck on with an adhesive.

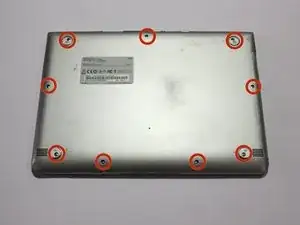

  2. ixAHHaIJcpKswNYE
    ixAHHaIJcpKswNYE
    YPrqxfN1AFAVldFr
    aIUJSih1iGdhLnIk

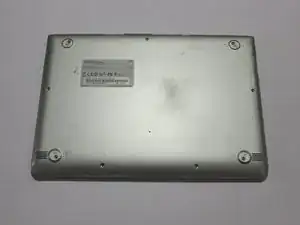

    • Remove the nine 4.7 mm screws on the bottom cover using a Phillips #00 screwdriver.

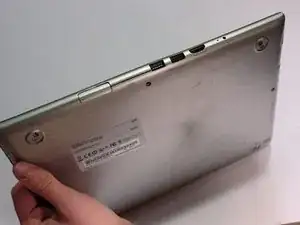

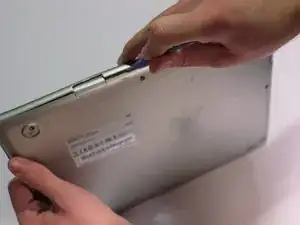

  3. XGjSBHuSn1aC3PVc
    XGjSBHuSn1aC3PVc
    WIvbkBHFmxoaMKYp
    hjaZtDbBHEovlRTF

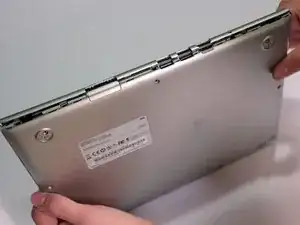

    • Pry up the plastic strip on the back of the Chromebook using a plastic opening tool.

    • It is not necessary to remove it completely. It just needs to be separated from the bottom cover.

  4. tKXhalC1MQqIAum3
    tKXhalC1MQqIAum3
    UHHsZaXUUcg2wqVD
    Mu3uWZuteg6dIjCE

    • Pry off the bottom cover using a plastic opening tool.

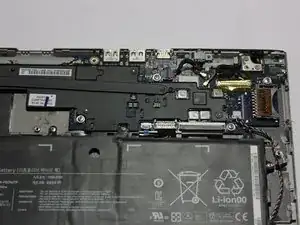

  5. PO2rsfbr1T3qpsgp
    PO2rsfbr1T3qpsgp
    4gJmE1QqBJxIOBUx
    KOByIc1dP5w4eK6E

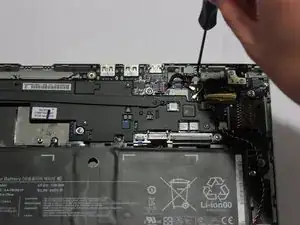

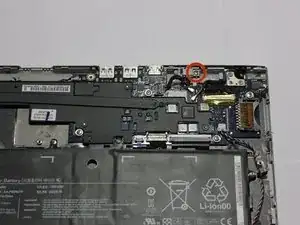

    • Unscrew the 3.4 mm screw holding down the charging port module using a Phillips #00 screwdriver.

  6. hdXx4XbVgD6KxjNe
    hdXx4XbVgD6KxjNe
    bvZcCqpUsT4XMpID

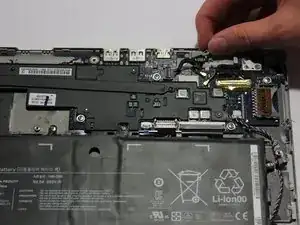

    • Remove the metal cover above the charging port module by pulling up and moving it slightly left.

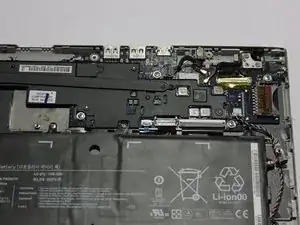

  7. A3gjAG6C3QYrOJEB
    A3gjAG6C3QYrOJEB
    YfoiiVsiOYDd6vdW
    3xHDlpLgTdt4aleX

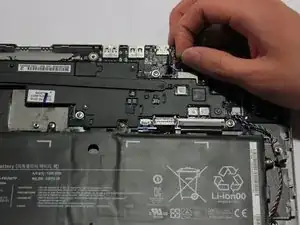

    • Pull out the charging port module connector by pulling directly up on it.

    • When reassembling, reconnect by positioning the connector directly above its original position and pushing down.

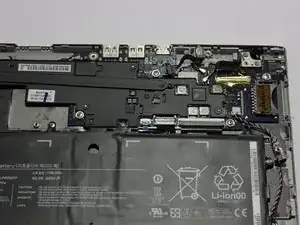

  8. LNADKEXk4CLPkwY5
    LNADKEXk4CLPkwY5
    LboTwtsmxBjEL3Fp

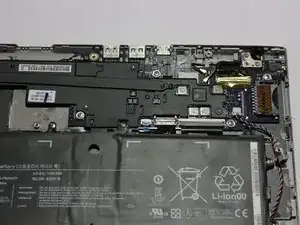

    • You can now pull out the charging port module.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Andrey Radchishin

Mitglied seit: 21/01/15

1809 Reputation

2 Kommentare

What is the reference number for this charging port?

How to find it on ebay/other?

rafal -

If you search "Samsung Chromebook XE303C12" together with "Charge Port" or "Charging Port" or "DC Jack" you should be able to find it! :)

Andrey Radchishin -
