Samsung Chromebook Series 3 Front Camera Replacement

Geschrieben von: Tyler Schultz
  • Kommentare: 1
Samsung Chromebook Series 3 Front Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

25 - 30 Minuten

Einleitung

This guide will demonstrate how to remove and replace the front camera assembly on your Samsung Chromebook Series 3.

  1. AE66d1lshVPbSUel
    AE66d1lshVPbSUel
    VWyHTDEeEk4JHYyc
    uvVR5mO2mI45JVya

    • Use the iFixit opening tool to get under the front cover and pop it out of place

  2. uAYchbdgJlxZxEvL
    uAYchbdgJlxZxEvL
    hd1O6wJOnNcHLFUn
    MFERbYIli5BoQGOH

    • Remove the four 2.9 mm screws with the Phillips #00 Screwdriver bit.

    • Using the iFixit opening tool, try to lift up the screen (it is held down by some adhesive).

  3. cZl5aR6yBGwVmCa4
    cZl5aR6yBGwVmCa4
    KNBI4Vp3GCTOdMHg
    OqbR1vnwqDArPbaG

    • Lift the lever to release the cable and pull the cable out.

  4. bGwrKeChJxfLY2YA

    • You can now remove the screen.

  5. rW2VsVuovvuA5mC5
    rW2VsVuovvuA5mC5
    pQXelVQFH5ZJaKw5
    idVdSgExYduEjH4u

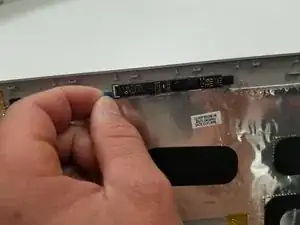

    • Disconnect the ribbon cable connected to the front camera assembly.

    • You will need to flip up the little black lever to release the cable.

  6. nVaYktnRgDwqRaBw
    nVaYktnRgDwqRaBw
    Y4VCOTwHWKrgVMyi

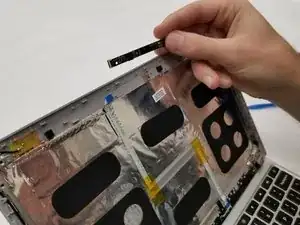

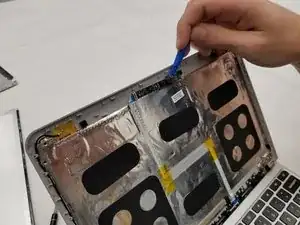

    • Use an iFixit opening tool to pry the front camera assembly from the adhesive holding it in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Tyler Schultz

Mitglied seit: 25/03/19

504 Reputation

Ein Kommentar

Thanks for posting this! I looked all over youtube and couldn’t find anything so I am relieved to find this tutorial! I haven’t performed the repair yet, but I was wondering if removing the screen is necessary. From what I see, I can access the camera by just removing the bezel. Thanks for your feedback in advance!

Angel Knepper -
