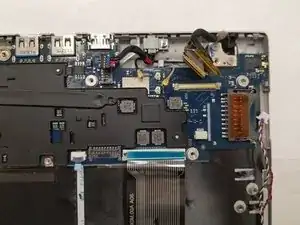

This guide will demonstrate how to take out and replace the motherboard in a Samsung Chromebook Series 3. A motherboard is a circuit board that controls most other components in a laptop. A damaged motherboard might be the culprit behind serious issues such as overheating, Blue Screen Of Death (BSOD), or system components such as RAM not being detected.
Ensure that the laptop is powered off before proceeding with the repair. ESD-safe tools are recommended to prevent any static shock damage.
Werkzeuge
Ersatzteile
-
-
Lay the Chromebook down so that the bottom cover is facing up.
-
Remove the rubber feet on the four corners of the Chromebook in order to get to the screws underneath. They are stuck on with an adhesive.
-
-
-

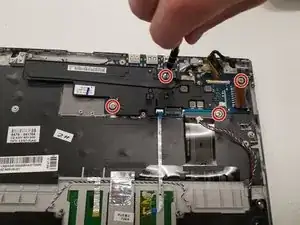

Remove six 3.5 mm screws holding the battery using a Phillips #00 screwdriver.
-

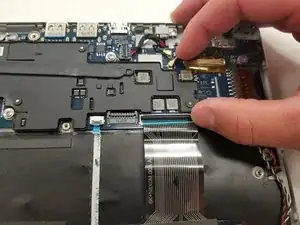

Pull out the battery partway in order to easily get to the battery connector.
-
-
-

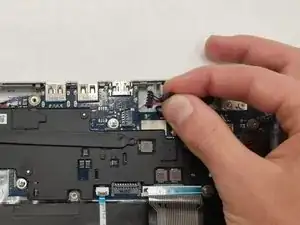

The audio cable can be removed by simply pulling gently.
-

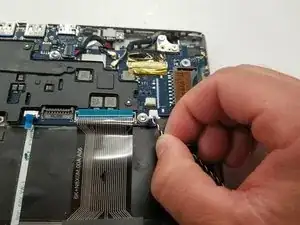

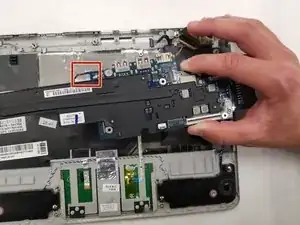

Use the iFixit opening tool to pop out the 2 antennae lines from the motherboard.
-
-
-

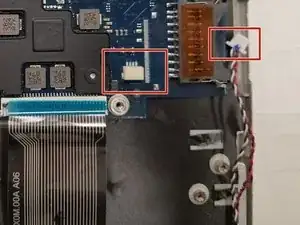

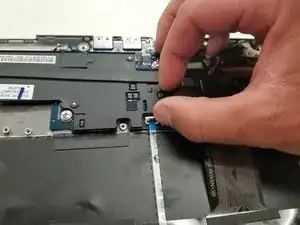

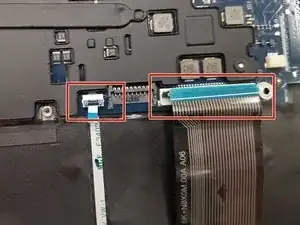

Now, disconnect the keyboard and trackpad ribbon cables.
-
This requires lifting the lever securing the cables to free them, and then gently pulling them out.
-
-
-

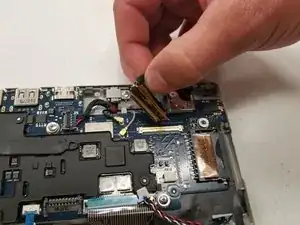

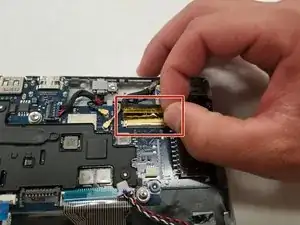

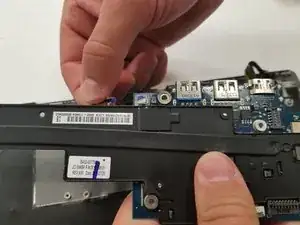

The screen cable is secure in place by a lever. Lift the lever to release it, then gently pull it out.
-
-
-

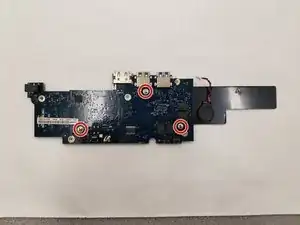

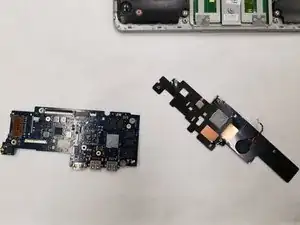

Finally, remove the three 3.1 mm screws with the Phillips #00 screwdriver to remove the plastic cover and completely free the motherboard.
-
To reassemble your device, follow these instructions in reverse order.
