Samsung Chromebook XE550C22 RAM Replacement

Geschrieben von: Abel Osorio
  • Kommentare: 0
Samsung Chromebook XE550C22 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide will help you remove and upgrade your RAM to make your Samsung Chromebook XE550C22 run smoother.

  1. Pa3EJruuDBsqk1fB
    Pa3EJruuDBsqk1fB
    XmwcQZiiPpwdOKRe
    NZErD1M5OTTKvWq1

    • Turn the power off before beginning this step.

    • Using the spudger, remove the four 1/2 inch skid pads from the back of the laptop.

  2. GUcwWCLjc5LAHMlM
    GUcwWCLjc5LAHMlM
    6i3soEnGl3N3BeWY

    • Remove the eight 7mm screws using the J0 Screwdriver.

  3. hPpIlFv2Wkeg6jEv
    hPpIlFv2Wkeg6jEv
    luIAuId3gDSo4sSX
    YFy4pjXwDTOKnLFB

    • Starting at the center front of the laptop, insert the metal spudger between the keyboard panel and the bottom panel, separating the bottom panel from the laptop.

    • Continue prying around the sides to release more brackets.

  4. 5NvppG3PuAmIuVHi
    5NvppG3PuAmIuVHi
    vtDRPVgyFqPufGiD

    • After deconnecting all the brackets, pull the back panel away from the laptop.

    • Note: The back panel has some flex to it, don't be afraid to use some force.

  5. GpXm2kTIrxRJBvKi
    GpXm2kTIrxRJBvKi
    Xc5AjMP5QDc3QvHh

    • Remove the four 3mm screws holding the battery with the J0 screwdriver.

  6. OtBFF6pmwivgJRVm
    OtBFF6pmwivgJRVm
    nMBsnTxHfSM1S5Yi

    • Lift the battery up at an angle to disconnect the battery from the motherboard, then pull it away from the laptop.

    • Do not lift the battery straight up. This will damage the battery's connectors.

  7. Uj3AM4MSSdRtCmsf

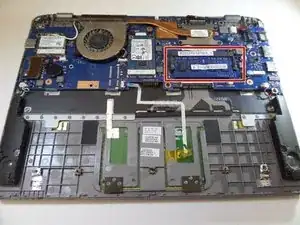

    • Locate the RAM on the middle right side of the Chromebook.

  8. Mxbhmu1rgOIRgrwU
    Mxbhmu1rgOIRgrwU
    qFfOyMOYZTGQnuvW

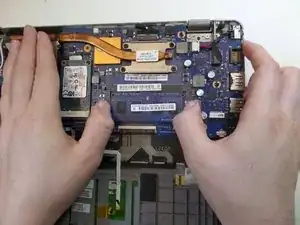

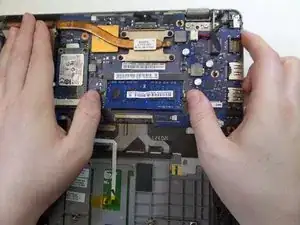

    • Using your fingers, separate the silver clips that are holding the RAM in place on each side.

    • The RAM will "pop-up" on its own after separating clips.

  9. 1CiJEGcdKlYddpCd
    1CiJEGcdKlYddpCd
    uhvHHdDf1ToO66On

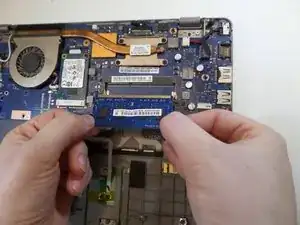

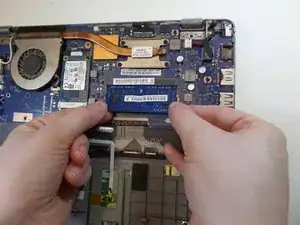

    • Pull the RAM away from the Chromebook.

Abschluss

To reassemble your device, follow these instructions in reverse order.
