Einleitung

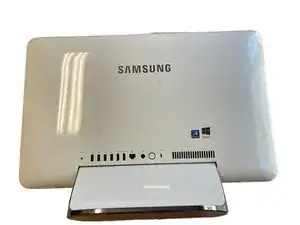

In this guide, I will show you how to replace the hard drive in a Samsung All-in-One Desktop DP515A2G.
-
-

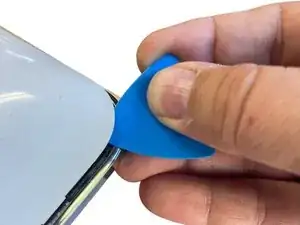

Gently insert an opening pick in the seam between the back panel and bezel.
-
Run the opening pick along the seam, carefully freeing the clips holding the back panel in place.
-

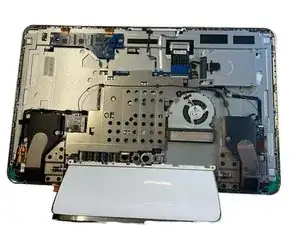

The back panel should come away without resistance.
-
-
-

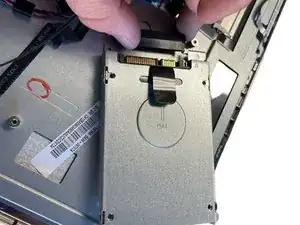

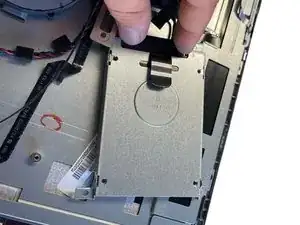

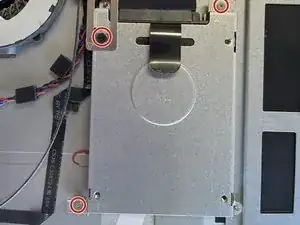

Once the shroud surrounding the hard drive is free, disconnect the hard drive by grasping the connector with one hand, and the shroud with the other hand and gently pull them apart.
-
-
-

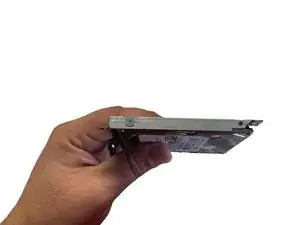

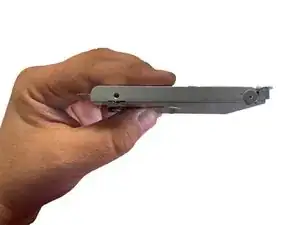

Using the 000 Screwdriver remove the screw on each side.
-

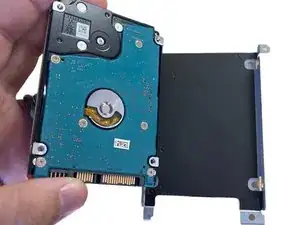

The hard drive should pull free of the shroud.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
