Samsung DV300F Back Button Control Replacement

Geschrieben von: Timothy Gordon
  • Kommentare: 2
Samsung DV300F Back Button Control Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide will show how to remove the Back Button Control.

  1. aPSQFUheMAgXv12C
    aPSQFUheMAgXv12C
    LOrvxNakauF3R1HZ
    YPt5QRyoSh2egGwp

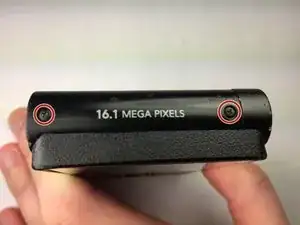

    • Remove the two black 4.2 mm screws on the right side of the camera using a Phillips #0 screwdriver.

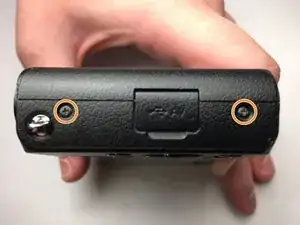

    • Remove the two black 4.2 mm screws on the left side of the camera using a Phillips #0 screwdriver.

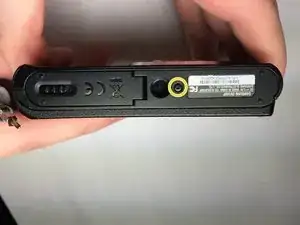

    • Remove the two black 4.2 mm screws on the bottom of the camera using a Phillips #0 screwdriver.

    Only one screw on bottom of camera

    John Petralito -

  2. BsV5gnqGxpEUIr34
    BsV5gnqGxpEUIr34
    LhmYvsuVaHepwD5Y

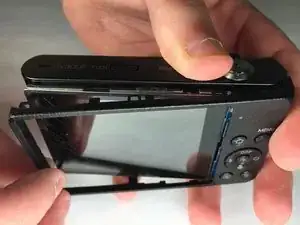

    • Remove the back case of the camera carefully.

    The covers are attached with very small tabs around the cover perimeter. A very small blade screwdriver is helpful in prizing the covers apart and off.

    JM Johnson -

  3. ubLUebgTRKVn1fE1
    ubLUebgTRKVn1fE1
    by65VeHW3TwCdXlZ
    GlBVJRDkBOBUVCip

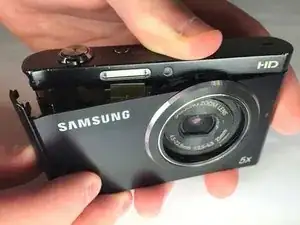

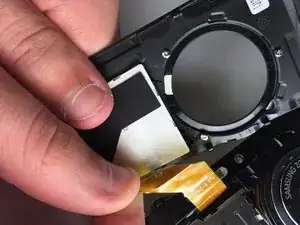

    • Remove the front case of the camera.

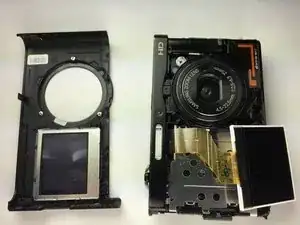

    • Remove the front LCD screen from the front case next to the lens.

  4. EVk42Wau5sCojTJR
    EVk42Wau5sCojTJR
    jcunXC3wYgs361Am

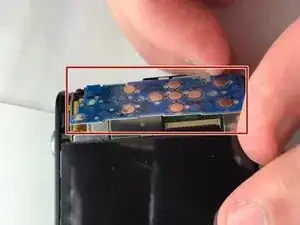

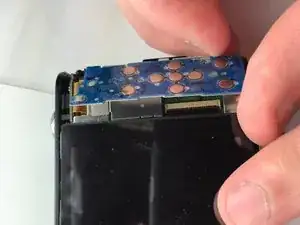

    • Remove the blue button control from its position next to the LCD screen.

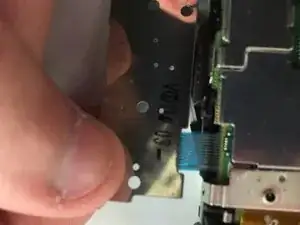

    • Pull the ribbon cable to disconnect the blue button control from the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
