Samsung DV300F Front LCD Screen Replacement

Geschrieben von: Timothy Gordon
  • Kommentare: 6
Samsung DV300F Front LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide describes how to replace the Samsung DV300F front LCD screen. There are many small screws involved with this process.

If your Samsung DV300F is displaying black spots, discolored areas, or blurred sections , it is time to replace the LCD screen.

  1. aPSQFUheMAgXv12C
    aPSQFUheMAgXv12C
    LOrvxNakauF3R1HZ
    YPt5QRyoSh2egGwp

    • Remove the two black 4.2 mm screws on the right side of the camera using a Phillips #0 screwdriver.

    • Remove the two black 4.2 mm screws on the left side of the camera using a Phillips #0 screwdriver.

    • Remove the two black 4.2 mm screws on the bottom of the camera using a Phillips #0 screwdriver.

    Only one screw on bottom of camera

    John Petralito -

  2. BsV5gnqGxpEUIr34
    BsV5gnqGxpEUIr34
    LhmYvsuVaHepwD5Y

    • Remove the back case of the camera carefully.

    The covers are attached with very small tabs around the cover perimeter. A very small blade screwdriver is helpful in prizing the covers apart and off.

    JM Johnson -

  3. ubLUebgTRKVn1fE1
    ubLUebgTRKVn1fE1
    by65VeHW3TwCdXlZ
    GlBVJRDkBOBUVCip

    • Remove the front case of the camera.

    • Remove the front LCD screen from the front case next to the lens.

  4. EVk42Wau5sCojTJR
    EVk42Wau5sCojTJR
    jcunXC3wYgs361Am

    • Remove the blue button control from its position next to the LCD screen.

    • Pull the ribbon cable to disconnect the blue button control from the camera.

  5. svy1EBHvZFHU1iqn

    • Remove the back LCD screen from its place carefully.

    samsung es90 lcd Where to call the address

    ianam73 73 -

    I live in Bangladesh

    ianam73 73 -

    The white LCD is attached to the housing with sticky tape. Again a small blade screwdriver is helpful to CAREFULLY pry it out.

    JM Johnson -

    Where can i find a replacement lcd screen?

    Jason Bills -

  6. VEn3a4wAtpvgLSKx
    VEn3a4wAtpvgLSKx
    p3bQsMNLwe5CIrh2

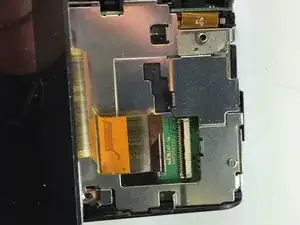

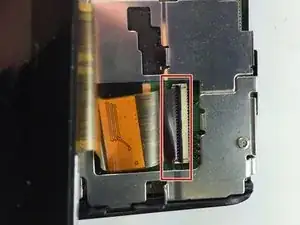

    • Flip the black tab where the back LCD screen connects to the circuit board.

    • Pull the tape connection to disconnect the back LCD screen from the circuit board.

  7. qlOe1Bv3fkTNjANV
    qlOe1Bv3fkTNjANV
    yWhwKgVJknNpILbV

    • Unscrew the 3 silver 4.5 mm screws from the circuit board using a Phillips #0 screwdriver.

    • Remove the circuit board cover.

  8. AKVS5FopOiFZSTDX
    AKVS5FopOiFZSTDX
    ihrZfPLdXs1CBSxF

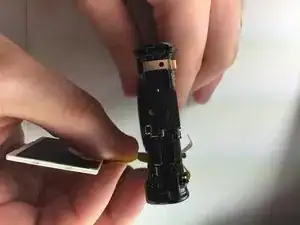

    yZUAhIEpbBJKSmtT

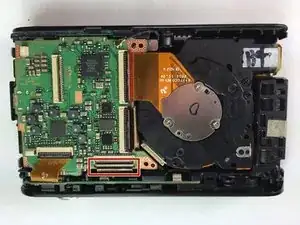

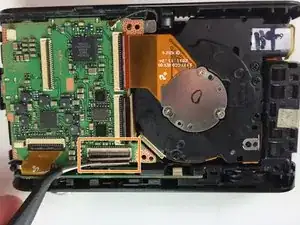

    • Flip the black tab where the front LCD screen connects to the circuit board.

    • Pull the tape connection to disconnect the front LCD screen from the circuit board.

    • You can do this easily with your fingers.

    • Remove the front LCD screen from the front of the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
