Samsung DV300F Lens Replacement

Geschrieben von: Timothy Gordon
  • Kommentare: 7
Samsung DV300F Lens Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will show how to remove the camera's lens.

  1. aPSQFUheMAgXv12C
    aPSQFUheMAgXv12C
    LOrvxNakauF3R1HZ
    YPt5QRyoSh2egGwp

    • Remove the two black 4.2 mm screws on the right side of the camera using a Phillips #0 screwdriver.

    • Remove the two black 4.2 mm screws on the left side of the camera using a Phillips #0 screwdriver.

    • Remove the two black 4.2 mm screws on the bottom of the camera using a Phillips #0 screwdriver.

    Only one screw on bottom of camera

    John Petralito -

  2. BsV5gnqGxpEUIr34
    BsV5gnqGxpEUIr34
    LhmYvsuVaHepwD5Y

    • Remove the back case of the camera carefully.

    The covers are attached with very small tabs around the cover perimeter. A very small blade screwdriver is helpful in prizing the covers apart and off.

    JM Johnson -

  3. ubLUebgTRKVn1fE1
    ubLUebgTRKVn1fE1
    by65VeHW3TwCdXlZ
    GlBVJRDkBOBUVCip

    • Remove the front case of the camera.

    • Remove the front LCD screen from the front case next to the lens.

  4. EVk42Wau5sCojTJR
    EVk42Wau5sCojTJR
    jcunXC3wYgs361Am

    • Remove the blue button control from its position next to the LCD screen.

    • Pull the ribbon cable to disconnect the blue button control from the camera.

  5. svy1EBHvZFHU1iqn

    • Remove the back LCD screen from its place carefully.

    samsung es90 lcd Where to call the address

    ianam73 73 -

    I live in Bangladesh

    ianam73 73 -

    The white LCD is attached to the housing with sticky tape. Again a small blade screwdriver is helpful to CAREFULLY pry it out.

    JM Johnson -

    Where can i find a replacement lcd screen?

    Jason Bills -

  6. VEn3a4wAtpvgLSKx
    VEn3a4wAtpvgLSKx
    p3bQsMNLwe5CIrh2

    • Flip the black tab where the back LCD screen connects to the circuit board.

    • Pull the tape connection to disconnect the back LCD screen from the circuit board.

  7. vMx1WMkewltdJ2IR
    vMx1WMkewltdJ2IR
    HAQDyYcMtdQTdnRA

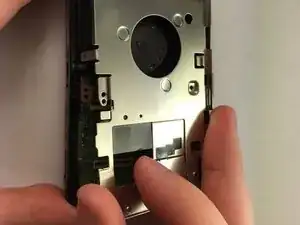

    • Unscrew the 3 silver #0 Phillips 4.45mm screws from the circuit board cover

    • Remove the circuit board cover

  8. FeMlDMAZ1GOafiWe
    FeMlDMAZ1GOafiWe
    gW3qqPyqRSEleUbJ

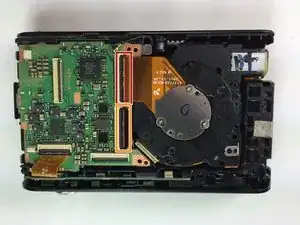

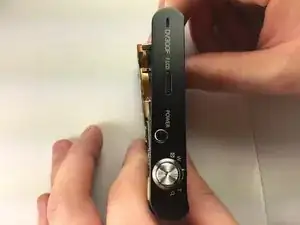

    • Flip the first black tab connecting the lens to the circuit board

    • Flip the second black tab connecting the lens to the circuit board

    • Push the lens out from the front to remove it from the camera

Abschluss

To reassemble your device, follow these instructions in reverse order.
