Einleitung
This guide will take you through the step-by-step process on how to gain power back in your device by replacing the power fuse on the circuit board inside the device
Werkzeuge
Ersatzteile
-
-
with the front of the device facing you, turn the device 180 degrees so the back panel of the device is facing you
-
-
-
locate the three (3) screws on the back panel of the device that are implanted in the device
-
to remove the screws, use the tool(s) listed above (right underneath the introduction) and twist the screws counter-clockwise to remove them from the device
-
-
-
to remove the cover of the device, pull the cover towards the back of the device until it is completely removed so you can see the insides of the device
-
-
-
It is recommended to buy the new power fuse before proceeding with this guide. To buy a power fuse online you can click on the name of the fuse under the "relevant parts" section on the top of this page and it will guide you to a website to buy one
-

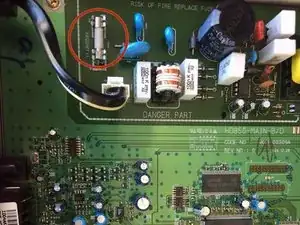

With the back panel of the device facing towards you, locate the circuit board inside the device
-
-
-

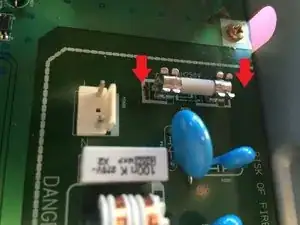

To Remove the power fuse from the circuit board, gently pull up on the fuse to remove it from the metal clips
-
-
-

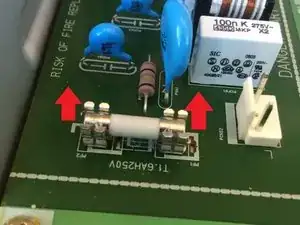

After removing the old power fuse, put in the new fuse by gently pushing the fuse into the metal clips until it clicks into place
-
The best way to put the new fuse in is by grabbing both ends of the fuse and pushing it in from the ends. Avoid pushing it in from the middle of the fuse to prevent it from breaking
-
If done correctly you should now have full power back in your device!
-
To reassemble your device, follow these instructions in reverse order.
