Einleitung
Caution: All alteration or modifications are the users responsibility, and not of the guide creator. These steps are only recommended if not under warranty or if a solution has not yet been found.
Werkzeuge
Ersatzteile
-
-
with the front of the device facing you, turn the device 180 degrees so the back panel of the device is facing you
-
-
-

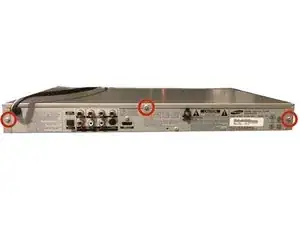

locate the three (3) screws on the back panel of the device that are implanted in the device
-
to remove the screws, use the tool(s) listed above (right underneath the introduction) and twist the screws counter-clockwise to remove them from the device
-
-
-

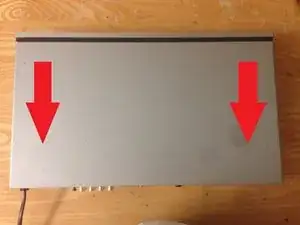

to remove the cover of the device, pull the cover towards the back of the device until it is completely removed so you can see the insides of the device
-
-
-

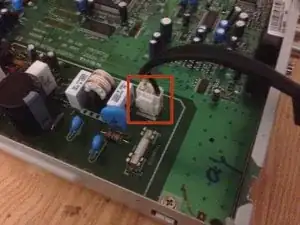

Unclip the old power cord from the dual pin connector.
-

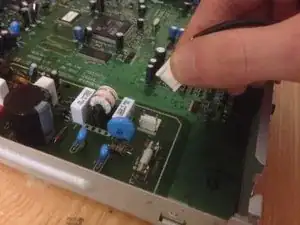

Once the old power cord has been unclipped take the new power cord and simply clip it in where the old one was.
-
-
-

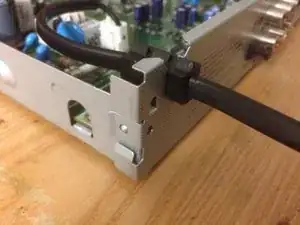

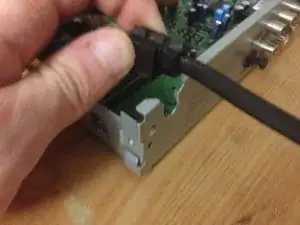

Adjust the rubber block on the power cord so that it fits in the slot on the back of the DVD player.
-
This makes it so that the cover panel will be able to slide back on.
-
To reassemble your device, follow these instructions in reverse order.
