Samsung Epic 4G Touch Headphone Jack/Vibrator Replacement

Geschrieben von: Walter Galan
  • Kommentare: 0
Samsung Epic 4G Touch Headphone Jack/Vibrator Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

Prereq only for Front Panel Assembly.

Werkzeuge

  1. bulLULJRE1FuWZQI
    bulLULJRE1FuWZQI

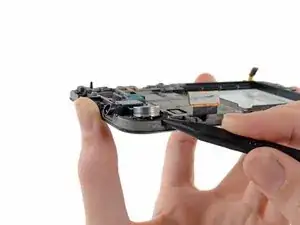

    bBluOgDhCGmTpYMC

    • Insert the pointed end of a spudger into the gap in the corner of the midframe to free the vibrator from the adhesive.

    • Do not completely remove the vibrator, it is still attached to the headphone jack/vibrator assembly and can only come out with the rest of the unit.

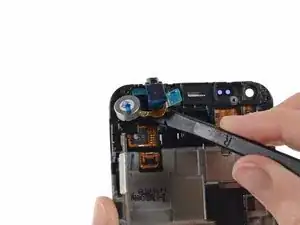

  2. OUih2HgNE1NoyY4N

    • Use the flat end of a spudger to release the headphone jack from the adhesive securing it to the midframe.

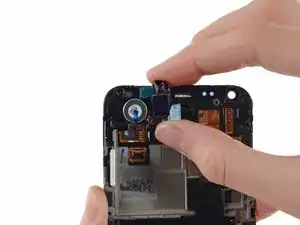

  3. 3goe1KKDMbMIlNtJ

    • Remove the headphone jack/vibrator assembly from the display assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
