Einleitung

  1. an1UJHBgJ6BBmQcC
    • Press button on back of phone below camera.

    • While button is depressed, remove the back panel of the phone by sliding off (not shown in picture).

  2. QSlJjllirVoiGyWQ
    • Grasp the battery near the bottom with two fingers.

    • Lift battery up and out gently.

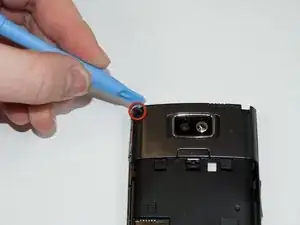

  3. gff3AiAvj6GZuQJH
    • Using an iPod opening tool, remove the screw cover in the top left corner by lifting it up.

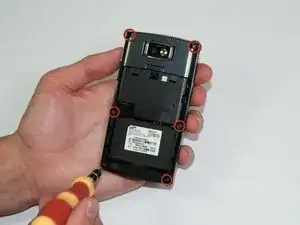

  4. WHsxtIFSEMYr6aO6
    • Use a Phillips #00 screwdriver to remove the six screws on the back of the phone. Three are evenly spaced on each side.

    • The upper right screw is 4.5mm while the rest are 6.5mm.

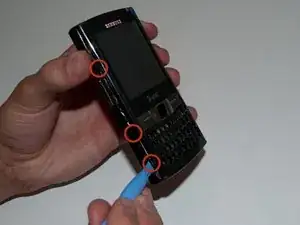

  5. ZUDFbioFuBBDm2BB
    ZUDFbioFuBBDm2BB

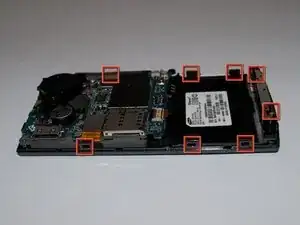

    DtSIEh4UbnHBuHZf
    • Slide the iPod opening tool into the seam on the side of the phone and turn it slightly to unhook the eight clips.

    • There are three clips on each side and two at the bottom of the phone.

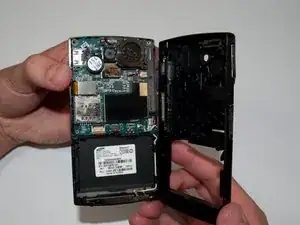

  6. mXPWEJlWmtKenbeN
    • Once all eight of the clips have been unhooked, lift the back panel off of the phone.

    • Be careful not to remove the front panel. It is still connected to the phone chassis by a ribbon cable in the bottom right corner of the motherboard.

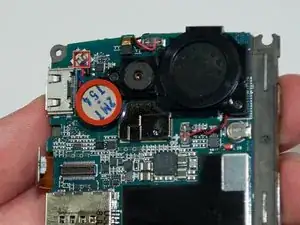

  7. DlM51AxKsm6ZZVoX
    • Remove the circular battery from the plastic holder by inserting a 1 mm flat head screwdriver under the battery where the red and blue wires connect and lifting gently.

    • Make sure the battery is still connected to the motherboard via the red and blue wires. This part does not have to be completely removed.

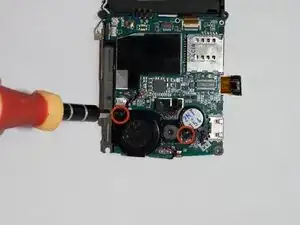

  8. PUCWJc5jlx5fUVCs
    • Using a Phillips #00 screwdriver, unscrew the two 3.5mm screws that connect the speaker to the motherboard.

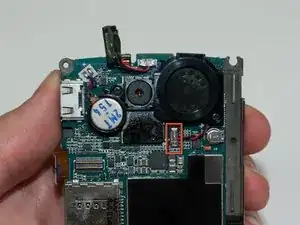

  9. Agx6PZKwhIij6dWS
    • With the iPod opening tool, unclip the red and black wires connecting the speaker to the motherboard.

    • Lift the speaker off of the motherboard.

    • The camera will remain attached to the phone when removing the speaker.

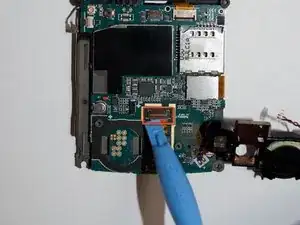

  10. 1vlskRxntPDL4bZj
    • Using iPod opener tool, unlatch and remove the camera ribbon cable.

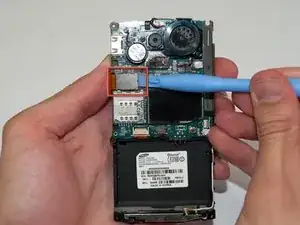

  11. DsJBMShfq2wt6UCf
    • Using iPod opener tool, unlatch LCD ribbon cable on left side of motherboard.

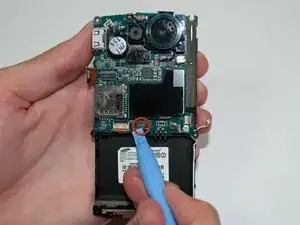

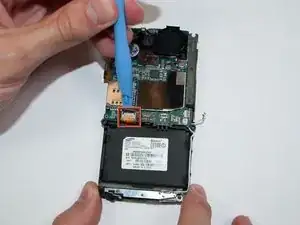

  12. PUgaVvlYWEaAf24D
    PUgaVvlYWEaAf24D
    iAyBnc1fo4rM5fjU
    • Using iPod opener tool, unlatch and remove the two ribbon cables at the bottom center of motherboard for the keypad and center button.

  13. qd1nhOvYDUaqdsop
    • Using iPod opener tool, unlatch and remove the front panel ribbon cable at bottom right of motherboard.

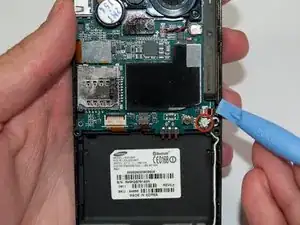

  14. DWRJjlB2agFWyUMX
    • Using the iPod opener tool, remove the microphone cable at bottom right of motherboard.

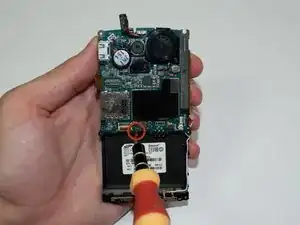

  15. sEmIlGpJ2IGrGW4W
    • Using a Phillips #00 screwdriver, remove the 3.5 mm screw at the bottom center of motherboard.

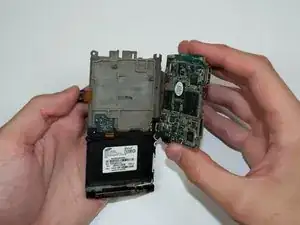

  16. vMaMYT2XUnVnaqCF
    • Carefully lift motherboard off of phone chassis starting on the left side.

    • There is one ribbon cable still attached underneath the motherboard on the right side.

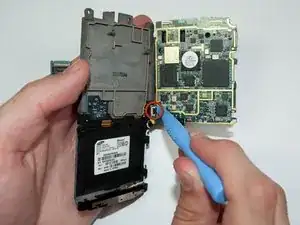

  17. rKZHEAFlXTrSjdCB
    • Using iPod opener tool, unlatch and remove ribbon cable on back side of motherboard.

    • Remove the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
