Samsung Eternity Antenna/Speaker Replacement

Geschrieben von: Matthew Kidd
  • Kommentare: 0
Samsung Eternity Antenna/Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 - 20 Minuten

Einleitung

You will need to find a clean area to work in and have the necessary tools. Follow this guide to gain access to your cellphone's antenna/speaker module.

    • Remove the back battery cover.

  2. DFVssrCsaalAmneL

    • Remove the phone's battery.

  3. TwnBImxVHmGkTgel

    • Remove six (4.28 x 1.25)mm screws.

  4. RRsRo2iNI43NWHNY
    RRsRo2iNI43NWHNY
    p3CxvlR2V3bsgrqG

    • Use the spudger to gently pry the silver plastic back plate from the body of the phone.

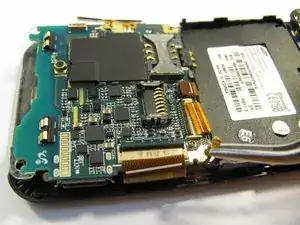

  5. NSbmKuMQ3qnLAqYg

    • Pop the antenna plug off of its socket with a pair of metal tweezers.

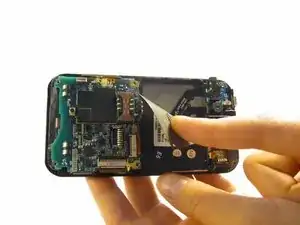

  6. hnXvFwB26cnExQtE

    • Peel off the Identification sticker.

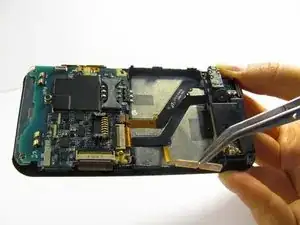

  7. fkowSB1ta4uUTsis

    • Peel the button sensor on the side of the motherboard off of the case.

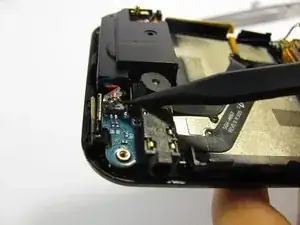

  8. DevDaeRLBEvehyyY

    • Pop the speaker plug out of its socket.

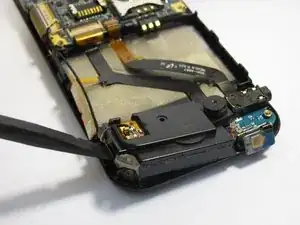

  9. YnYRaU2cZDt6DLDM

    • Pry the antennae/speaker component out of its casing. You need to use a little force to get the piece to pop out.

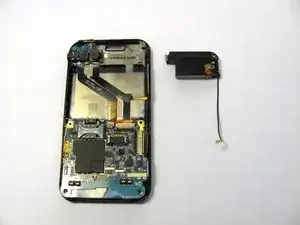

  10. 4GpAnnGsQBWHVg3E

    • You will now be able to replace the antenna/speaker module.

Abschluss

To reassemble your device, follow these instructions in reverse order.
