Samsung Eternity Input Jack Replacement

Geschrieben von: Sven
  • Kommentare: 0
Samsung Eternity Input Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 30 Minuten

Einleitung

You will need to find a clean area to work in and have the necessary tools. Follow this guide to gain access to your cellphone's input jack module.

    • Remove the back battery cover.

  2. DFVssrCsaalAmneL

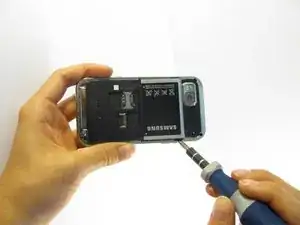

    • Remove the phone's battery.

  3. TwnBImxVHmGkTgel

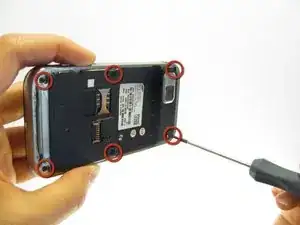

    • Remove six (4.28 x 1.25)mm screws.

  4. RRsRo2iNI43NWHNY
    RRsRo2iNI43NWHNY
    p3CxvlR2V3bsgrqG

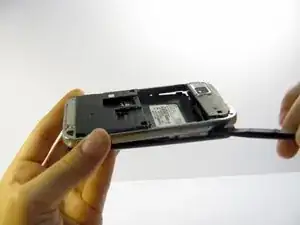

    • Use the spudger to gently pry the silver plastic back plate from the body of the phone.

  5. A11CWLPYKhEEIxr6

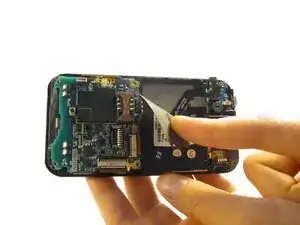

    • Peel off the Identification sticker

  6. omet1wSvWs2vDFnj

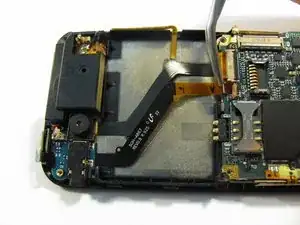

    • Pop the red hinged-release lever away from its ribbon, then slide the ribbon out.

  7. KT1hUnq6BTlZWgII

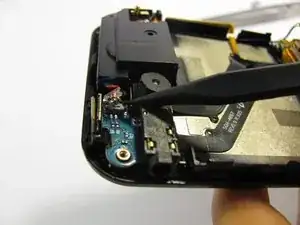

    • Pop the speaker plug out of its socket.

  8. lgVBIJTw3w1WL5c1

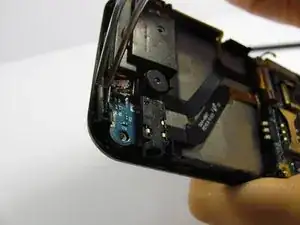

    • Peel the button sensor off the top of the case.

  9. KYlu3cjUSI1KhJZo

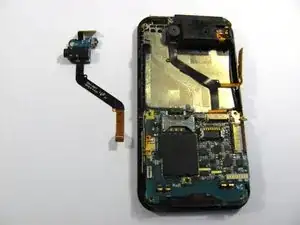

    • Peel the Input jack assembly out of the case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
