Samsung Galaxy A10e Daughterboard Replacement

Geschrieben von: Thomas Boland
  • Kommentare: 4
Samsung Galaxy A10e Daughterboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

21

Zeitaufwand

25 - 50 Minuten

Einleitung

Use this guide to replace the daughterboard containing the charge port and headphone jack.

  1. ZV5rvsFQIWR3YRRC
    ZV5rvsFQIWR3YRRC
    BivE1WKvFHHshfjG

    • Insert a SIM card eject tool, bit, or a straightened paperclip into the small hole in the SIM card tray.

    • Press to eject the tray.

  2. r3HEYQFA2ZdgR22o
    r3HEYQFA2ZdgR22o
    rTE23V51PZSXulFn

    • Remove the SIM card tray from the phone.

    • The SIM card(s) and SD card will fall out of the tray easily.

    • When reinserting the tray, ensure the SIM card and SD card are in the correct slots and oriented correctly.

    • For dual-SIM versions of this phone, there may be two SIM cards. Ensure the SIM cards are placed in the slots corresponding to the correct phone lines.

  3. ZhNlY1GUbXqUm6PN

    • The back cover is held in place by plastic clips.

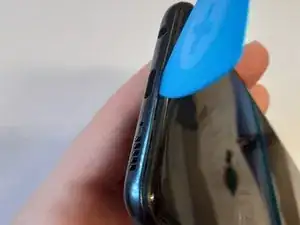

    • Insert an opening pick between the screen and the back cover on the bottom of the phone where the charging port is located.

  4. JbnQNp1PHKnxDcG3

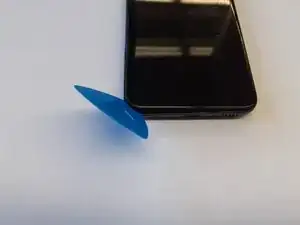

    • Slide the opening pick to the bottom left corner to release the clips.

  5. AdhXxV44uUAKUSNJ

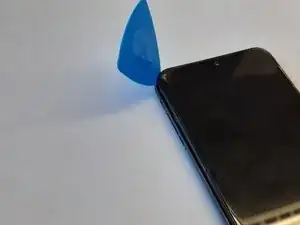

    • Slide the opening pick along the left edge to the top left corner of the phone, to release the clips.

  6. WFkTvQpkTCXRRbp6

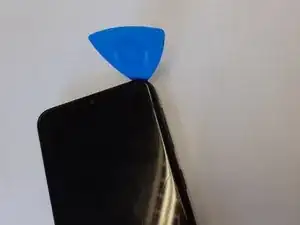

    • Slide the opening pick from the top left corner to the top right corner to release the plastic clips.

  7. LxOvKIscHyoCDQtG

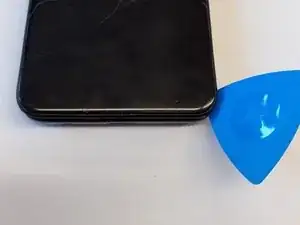

    • Slide the opening pick from the top right corner to the bottom right corner to release the remaining clips.

  8. OpH6L1koMmwR1wnZ

    • Remove the back cover.

  9. TtUFIfPGB6MQBGxQ

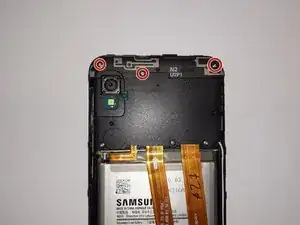

    • Remove screws from the motherboard antenna cover.

    • 3 Phillips #00, 3mm length.

  10. KUNd2ME1FyCX1G2i

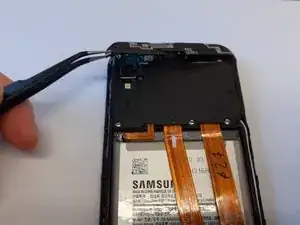

    • Use the tip of a spudger or tweezers to remove the antenna cover.

  11. owJFTDVlxoFxB11B

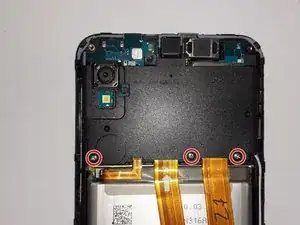

    • Remove screws from the motherboard cover.

    • 3 Phillips #00, 3mm length

    There’s actually a 4th screw on the top middle of this cover. Took me and my wife several minutes to figure that one out.

    Justin Wahlquist -

  12. eflhlOeEAyPEIVjZ

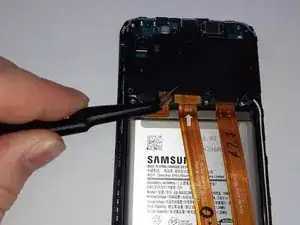

    • Use the tip of a spudger or tweezers to remove the motherboard cover.

  13. ZSRqjGKkFCbKJo1p
    ZSRqjGKkFCbKJo1p
    uXSNEVBCUyfXJfPA

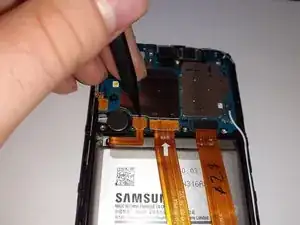

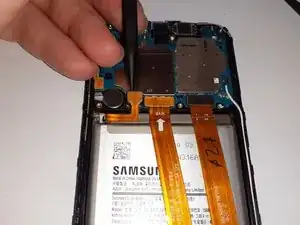

    • Use a spudger to disconnect the battery by prying the connector straight up from its socket.

  14. faDPrgwRbluutpeK

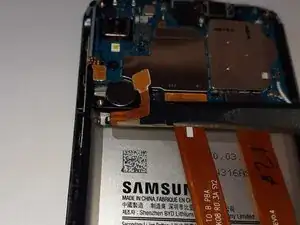

    • Gently flex the battery connector away from its socket.

    Nice —- simple…Thanks

    WillitSo -

  15. LyQ6QeGOtZbKNGpy

    • Remove screws from daughterboard cover.

    • 7 Phillips #00, 3mm length.

  16. ITuAlCNUUYVppnBs
    ITuAlCNUUYVppnBs
    lEjnhVlllaaL6X2L

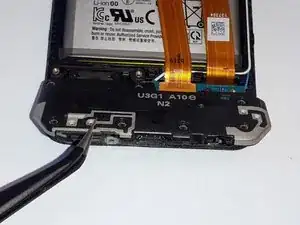

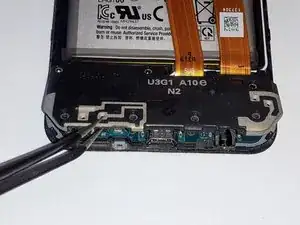

    • There is a plastic tab securing the top left corner of the daughterboard cover.

    • Use a pair of tweezers to lift up the bottom of the daughterboard cover to a ~30 degree angle.

    • Pull the daughterboard cover straight out, away from the phone.

  17. ycqRNG4i1cDLMpXJ
    ycqRNG4i1cDLMpXJ
    u4Z2AyBUMii5FqHx

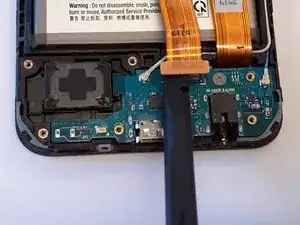

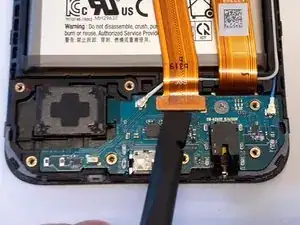

    • Insert the flat end of a spudger under the interconnect flex connector, and gently pry it straight up.

  18. PkkGTnyAkrngxxtb
    PkkGTnyAkrngxxtb
    IxKCBooeXROZfB1h

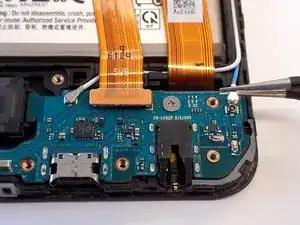

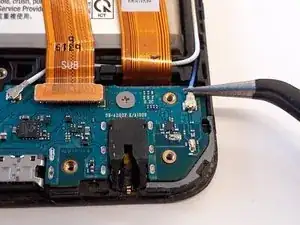

    • Using a pair of tweezers, gently disconnect one of the antenna connectors.

  19. XjIUZpfYLRBUC5YY

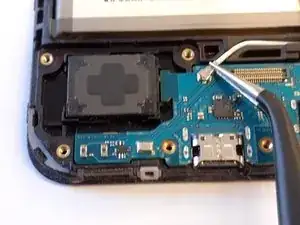

    • Using a pair of tweezers, gently disconnect the other antenna connector.

  20. CLgJNSdglP3CiIK3

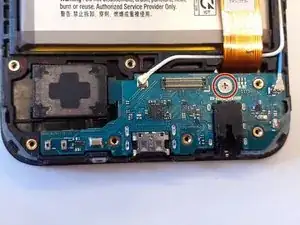

    • Remove screw from daughterboard.

    • 1 Phillips #00, 2mm length.

  21. UAqNRBQA1edj5UWc

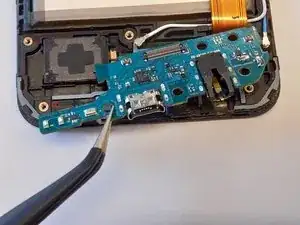

    • Remove the daughterboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
