Einleitung

Here's a quick guide to replace the battery

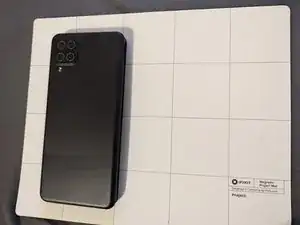

  1. hcumU3qDfXiXnIYS
    • Turn off the smartphone

    • Place your smartphone on a safe surface

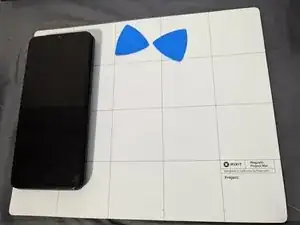

  2. esMnSXVJyBNJm5ew
    esMnSXVJyBNJm5ew

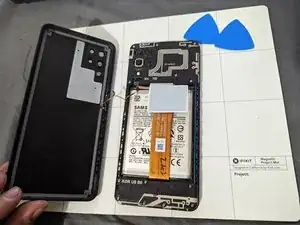

    lkam1sLXSA4WnIHs
    • Use the iFixit Opening Picks to pry open the plastic back of the smartphone.

    • **Be careful of pulling too hard the fingerprint sensor cable is connected to the plastic back** (see second picture)

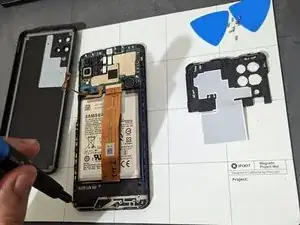

  3. Lqt4OM2nlWbfj25s
    • Remove the covers with the screwdriver.

    • **Be careful with touching anything with the screwdriver in the motherboard**

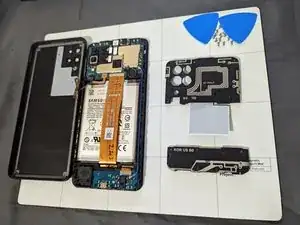

  4. pRm1jfNP6K1ZwlAZ
    • Now that we have the covers removed the phone back should look like this

  5. Before continuing we need to remove the fingerprint sensor.
    • Before continuing we need to remove the fingerprint sensor.

    • While you can use the Spudger. I used the iFixit Opening Tool for this video example.

  6. Use the Spudger to detach the main board cable gently
    • Use the Spudger to detach the main board cable gently

    • Move to the battery cable

    • **Both cables are crucial for the smartphone to be operational treat gently **

Abschluss

To reassemble your device, follow these instructions in reverse order.
