Samsung Galaxy A12 Disassembly

Geschrieben von: Ulric
  • Kommentare: 1
Samsung Galaxy A12 Disassembly

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 25 Minuten

Einleitung

This guide was made in the hopes of being able to help repair Samsung galaxy a12.

  1. RLLISpS1fBegOk15

    • Remove sim tray first

    ce n'est pas collé mais vaut mieux chauffer le plastique (sèche cheveux) pour retirer le couvercle surtout les coins...

    Jose Goncalves -

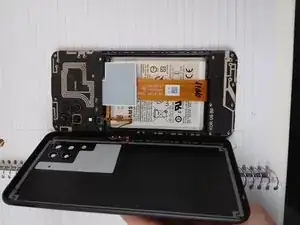

  2. yOdCHZ4VVoCbxpoT
    yOdCHZ4VVoCbxpoT

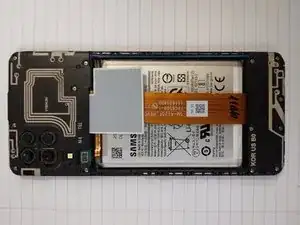

    Lty6YSPuAckpAoSs

    • Pop off the plastic back

    • Disconnect the lock button flex

  3. DbTtcD2IDLDUQQDC
    DbTtcD2IDLDUQQDC

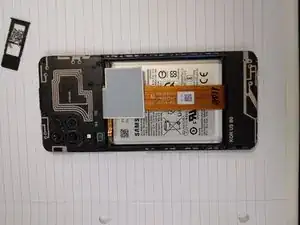

    g6xPFGLyX4wU1UYU

    • Take the screws out

    • They're all the same size

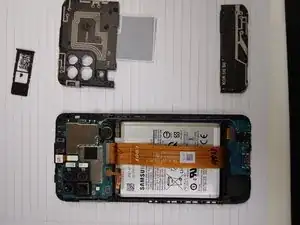

  4. xfrlonx5CyReHEeF

    • Remove plastic covers

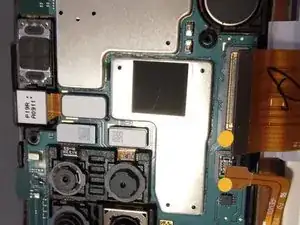

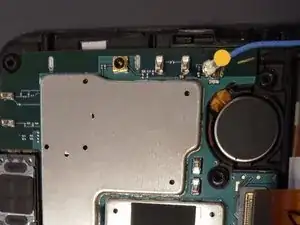

  5. crlr4UEEPuLQtFAD
    crlr4UEEPuLQtFAD

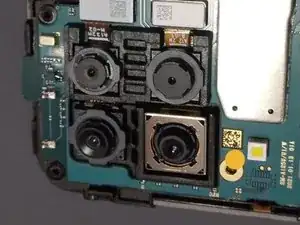

    ZJFYWHb5BOGJlEPv
    St5V5bpnSBSQwAiG

    • Unclip flex cables, starting with smaller

    • Unwind grounding screw

    • Disconnect antenna

    • Pop off the main board from Sim tray slot with spudger

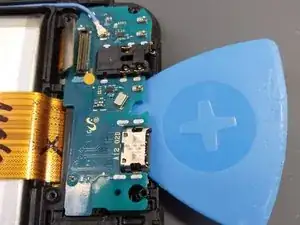

  6. PJ5uCShFVe5QBVmJ

    • Pop the flex off

    • Lift board with ease, kindly minding the adhesive

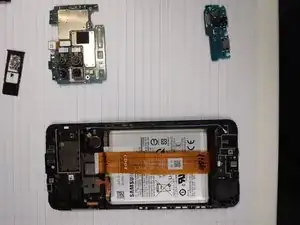

  7. rEgCHTrGcYQfMSBg
    rEgCHTrGcYQfMSBg
    3tAnValkjhnjEip3

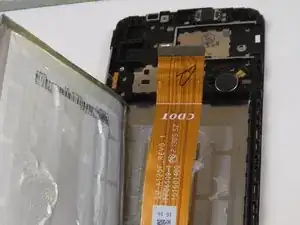

    j1goylrZ2CNwW3YW

    • Put flex cable out of the way

    • Credit-card size plastic tool

    • Wedge between the side of the battery down to the corner and apply isopropyl alcohol

    • Tilt camera end up to avoid leaking into battery

    • Pry up the battery being careful to not damage it

Abschluss

To reassemble your device, follow these instructions in reverse order.
