Einleitung
Use this guide to replace a worn-out or dead battery in your Samsung Galaxy A32 5G.
For your safety, discharge the battery below 25% before disassembling your phone. This reduces the risk of fire if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.
You’ll need replacement adhesive to reattach components when reassembling the device.
-
-

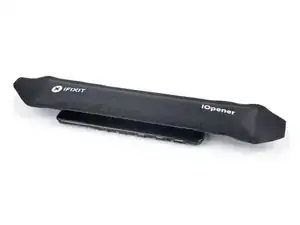

Prepare an iOpener and apply it to the back cover for at least two minutes to loosen the adhesive underneath.
-
-
-
Secure a suction handle to the bottom edge of the back cover, as close to the edge as possible.
-
Lift the back cover with the suction handle to create a small gap between the back cover and the frame.
-
Insert an opening pick into the gap you created.
-
Slide the opening pick to the bottom right corner to slice the adhesive.
-
Leave the opening pick in place to prevent the adhesive from resealing.
-
-
-
Insert a second opening pick at the bottom edge of your phone.
-
Slide the opening pick to the bottom left corner to slice the adhesive.
-
Leave the opening picks in place to prevent the adhesive from resealing.
-
-
-
Insert a third opening pick at the bottom left corner of your phone.
-
Slide the opening pick along the left edge of your phone to slice the adhesive.
-
Leave the opening pick in the top left corner to prevent the adhesive from resealing.
-
-
-
Insert a fourth opening pick underneath the top left corner of your phone.
-
Slide the opening pick along the top edge to slice the adhesive.
-
Leave the opening pick in the top right corner to prevent the adhesive from resealing.
-
-
-
Insert a fifth opening pick underneath the top right corner.
-
Slide the opening pick along the right edge of the back cover to slice the remaining adhesive.
-
-
-
Insert a SIM card eject tool, a SIM eject bit, or a straightened paper clip into the hole on the SIM tray located at the left edge of the phone.
-
Press directly into the hole to eject the SIM card tray.
-
Remove the SIM card tray.
-
-
-
Use a Phillips screwdriver to remove the sixteen 4.1 mm-long screws securing the midframe.
-
-
-
Use a spudger to disconnect the power and volume button flex cable by prying the connector straight up from its socket.
-
-
-
Insert an opening pick between the midframe and front panel assembly on the left edge of the phone where the SIM tray slot is located.
-
-
-
Slide the opening pick around the bottom left corner.
-
Slide the opening pick along the bottom edge of the phone to release the plastic clips.
-
-
-
Slide the opening pick around the bottom right corner.
-
Slide the opening pick along the right edge of the phone to release the plastic clips.
-
-
-
Slide the opening pick around the top right corner.
-
Slide the opening pick along the top edge of the phone to release the remaining plastic clips.
-
-
-
Place your phone with the display facing downwards on your working surface.
-
Remove the midframe.
-
-
-

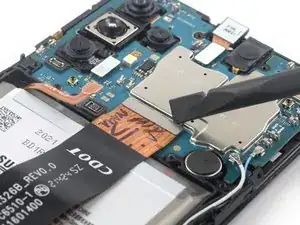

Use a spudger to disconnect the battery cable by prying the connector straight up from its socket.
-
-
-

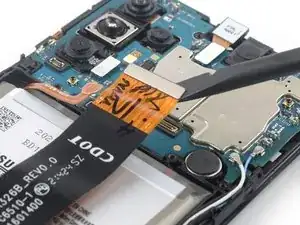

Use a spudger to disconnect the display cable by prying the connector straight up from its socket.
-
-
-
Apply a heated iOpener to the screen to loosen the adhesive underneath the battery. Apply the iOpener for at least five minutes.
-
-
-

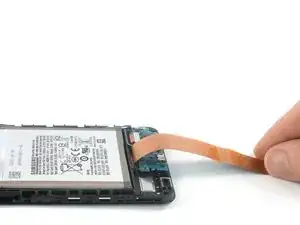

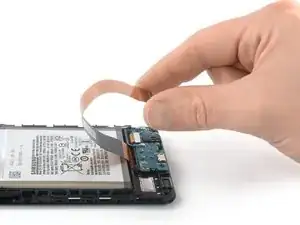

Fold the display flex cable towards the charging port in order to get free access to the battery.
-
-
-
If you're using isopropyl alcohol let the alcohol penetrate the battery adhesive for at least two to three minutes before removing the battery.
-

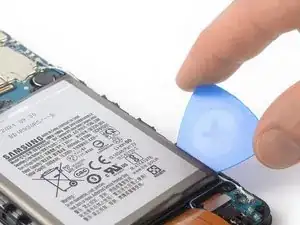

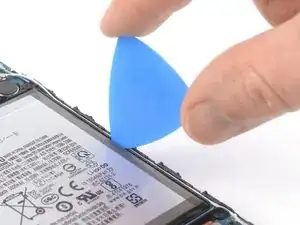

Insert an opening pick into the gap between the edge of the battery and the frame.
-
-
-

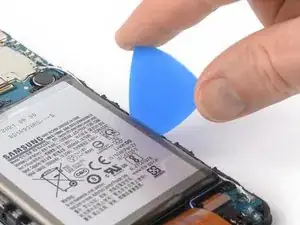

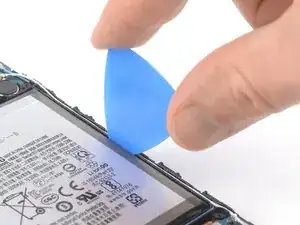

Slide the tip of your opening pick underneath the edge of the battery.
-

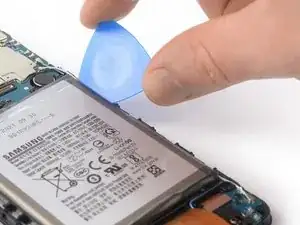

Slide the the opening pick along the edge of the battery to slice its adhesive and to widen the gap between battery and frame.
-
-
-

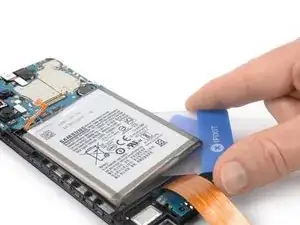

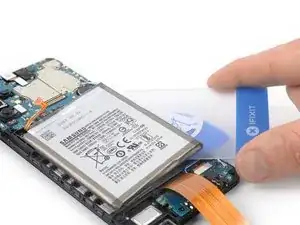

Insert a plastic card at the edge you priorly worked with your opening pick.
-

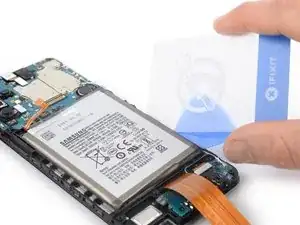

Slide the plastic card underneath the battery.
-

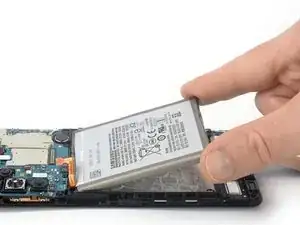

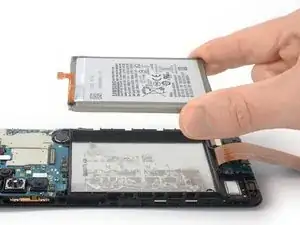

Use the plastic card to slice the adhesive underneath the battery and pry it up.
-
If possible, turn on your device and test your repair before installing new adhesive and resealing.
To reassemble your device, follow these instructions in reverse order.
For optimal performance, calibrate your newly installed battery after completing this guide.
Take your e-waste to an R2 or e-Stewards certified recycler.
