Samsung Galaxy A32 5G Screen Replacement

Geschrieben von: Dominik Schnabelrauch

Kommentare: 4

Samsung Galaxy A32 5G Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

50 Minuten - 2 Stunden

Einleitung

Use this guide to replace a cracked or broken screen on your Samsung Galaxy A32 5G.

If the frame is deformed, it's important to replace it to make sure the new screen will mount correctly and won’t suffer damage from uneven pressure.

If your battery is swollen, take appropriate precautions. Before disassembling your device, discharge the battery below 25%. The battery can catch fire and/or explode if accidentally punctured, but the chances of that happening are much lower if discharged.

Note: This guide instructs you to replace only the screen while leaving the original frame and motherboard in place. However, some replacement screens for this phone come pre-installed in a new frame (a.k.a. chassis), which requires a very different procedure. Make sure you have the correct part before starting this guide.

Before you begin this procedure, be sure to have a set of replacement adhesives for both the rear glass and the screen.

Werkzeuge

Ersatzteile

Schritt 1

Prepare an iOpener and apply it to the back cover for at least two minutes to loosen the adhesive underneath.
A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

Schritt 2

Secure a suction handle to the bottom edge of the back cover, as close to the edge as possible.
If the back cover is cracked, the suction handle may not stick. Try lifting it with strong tape, or superglue the suction handle in place and allow it to cure so you can proceed.
Lift the back cover with the suction handle to create a small gap between the back cover and the frame.
In case you have trouble creating a gap, apply more heat to further soften the adhesive. Follow the iOpener instructions to avoid overheating.
Insert an opening pick into the gap you created.
Slide the opening pick to the bottom right corner to slice the adhesive.
Leave the opening pick in place to prevent the adhesive from resealing.

Schritt 3

Insert a second opening pick at the bottom edge of your phone.
Slide the opening pick to the bottom left corner to slice the adhesive.
Leave the opening picks in place to prevent the adhesive from resealing.

Schritt 4

If the adhesive becomes hard to cut, it has most likely cooled down. Use your iOpener for one to two minutes to reheat it.
Insert a third opening pick at the bottom left corner of your phone.
Slide the opening pick along the left edge of your phone to slice the adhesive.
Leave the opening pick in the top left corner to prevent the adhesive from resealing.

Schritt 5

Insert a fourth opening pick underneath the top left corner of your phone.
Slide the opening pick along the top edge to slice the adhesive.
Leave the opening pick in the top right corner to prevent the adhesive from resealing.

Schritt 6

Insert a fifth opening pick underneath the top right corner.
Slide the opening pick along the right edge of the back cover to slice the remaining adhesive.

Schritt 7

Remove the back cover.
Apply new adhesive where necessary after cleaning the relevant areas with isopropyl alcohol (>90%).
Secure the new back cover with pre-cut adhesive or double-sided adhesive tape. After installing the back cover, apply strong, steady pressure to your phone for several minutes to help the adhesive form a good bond—a stack of heavy books works well.

Schritt 8

Insert a SIM card eject tool, a SIM eject bit, or a straightened paper clip into the hole on the SIM tray located at the left edge of the phone.
Press directly into the hole to eject the SIM card tray.
Remove the SIM card tray.

Schritt 9

Use a Phillips screwdriver to remove the sixteen 4.1 mm-long screws securing the midframe.

It would be useful to show a picture,here, highlighting the 7 screws below the battery that also require removal.

Robin Lewis -

Schritt 10

Use a spudger to disconnect the power and volume button flex cable by prying the connector straight up from its socket.

Schritt 11

The midframe of the Samsung Galaxy A32 5G is held in place by plastic clips.
Insert an opening pick between the midframe and front panel assembly on the left edge of the phone where the SIM tray slot is located.

Schritt 12

The plastic clips of the midframe are sitting in place tightly. Releasing them might require some force.
Slide the opening pick along the left edge of the phone to release the plastic clips.

Schritt 13

Slide the opening pick around the bottom left corner.
Slide the opening pick along the bottom edge of the phone to release the plastic clips.

Schritt 14

Slide the opening pick around the bottom right corner.
Slide the opening pick along the right edge of the phone to release the plastic clips.

Schritt 15

Slide the opening pick around the top right corner.
Slide the opening pick along the top edge of the phone to release the remaining plastic clips.

Schritt 16

Place your phone with the display facing downwards on your working surface.
Remove the midframe.

Schritt 17

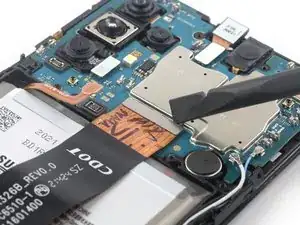

Use a spudger to disconnect the battery cable by prying the connector straight up from its socket.

Schritt 18

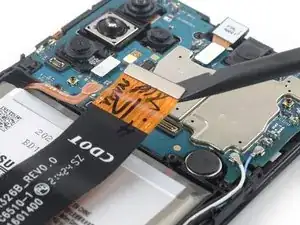

Use a spudger to disconnect the display cable by prying the connector straight up from its socket.

Schritt 19

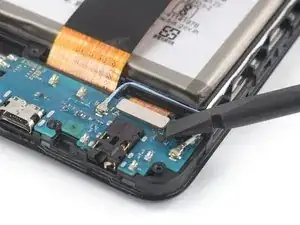

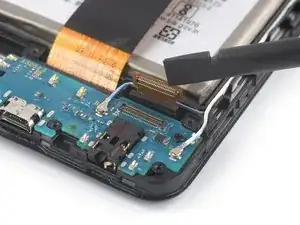

Use a spudger to disconnect the digitizer cable by prying the connector straight up from its socket.

Schritt 20

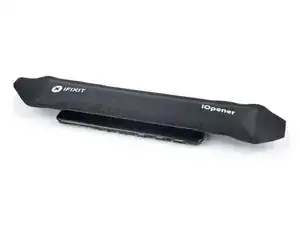

Apply a heated iOpener to the screen to loosen the adhesive underneath. Apply the iOpener for at least 5 minutes.
The display adhesive of the Galaxy A32 5G is strong, and it's likely you need to reheat and reapply the iOpener several times before starting the display removal and during the removal procedure.
A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the device.

Schritt 21

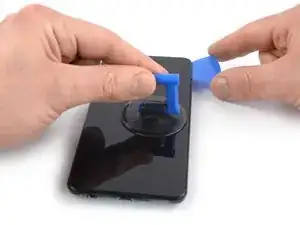

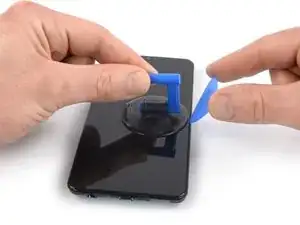

Once the screen is warm to touch, apply a suction cup to the right edge of the screen.
If your screen is badly cracked, covering it with a layer of clear packing tape may allow the suction cup to adhere. Alternatively, very strong tape may be used instead of the suction cup. If all else fails, you can superglue the suction cup to the screen.
Lift the screen with the suction handle to create a small gap between the screen and the front panel assembly.

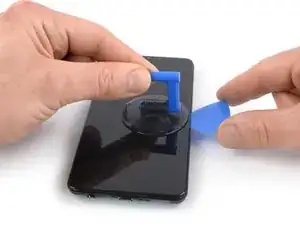

Insert an opening pick in the gap between the front panel assembly and the screen.
Slide the opening pick to the top right corner of the screen to slice its adhesive.
Leave the opening pick in place to prevent the adhesive from resealing.

Schritt 22

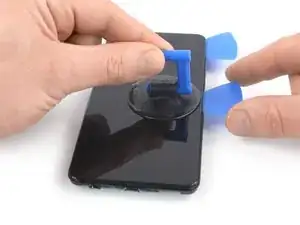

Insert a second opening pick in the gap between the front panel assembly and the screen.
Slide the opening pick to the bottom right corner of the screen to slice its adhesive.
Leave the opening pick in place to prevent the adhesive from resealing.

Schritt 23

If the adhesive becomes hard to cut, it has most likely cooled down. Use your iOpener or heat gun for 1-2 minutes to reheat it.

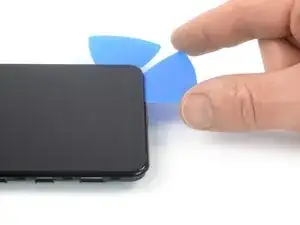

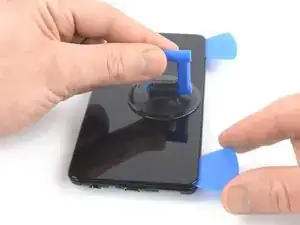

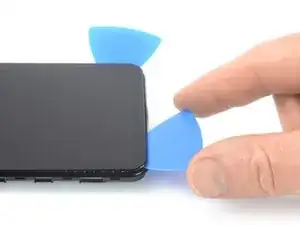

Insert a third opening pick underneath the bottom right corner of the screen.
Slide the opening pick to the bottom left corner of the screen to slice its adhesive.
Leave the opening pick in its place to prevent the adhesive from resealing.

Schritt 24

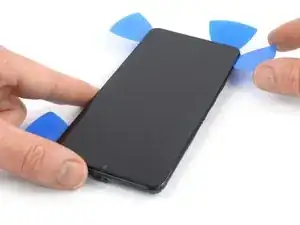

Insert a fourth opening pick underneath the bottom left corner and slide it along the left edge of the phone to slice the adhesive.
Leave the opening pick in its place to prevent the adhesive from resealing.

Schritt 25

When you slice near the front facing camera, insert only the tip of the opening pick (~2-3 mm) to avoid damaging or smearing the camera.

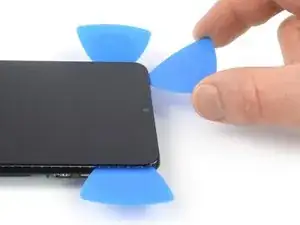

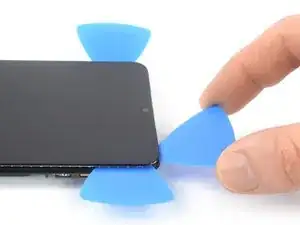

Insert a fifth opening pick at the top left corner of the screen.
Slide the opening pick along the top edge of the phone to slice the remaining adhesive.
Do not try to remove the display all the way yet, the screen and the digitizer cable are still threaded through the front panel assembly.

Schritt 26

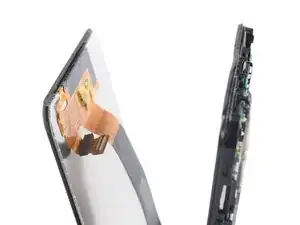

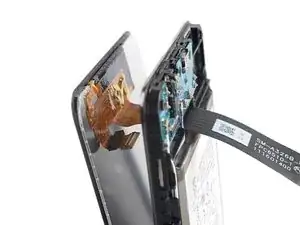

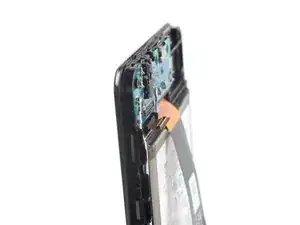

Thread the screen and the digitizer flex cables through the gap in the front panel assembly.

Schritt 27

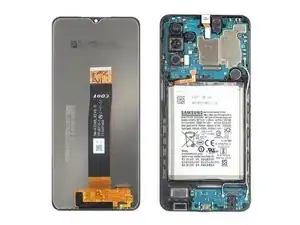

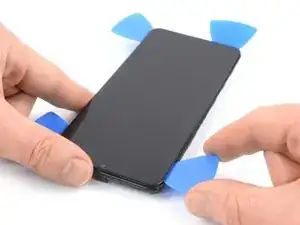

Remove the screen.
Apply new adhesive where it's necessary after cleaning the relevant areas with isopropyl alcohol (>90%).
During reassembly, follow this guide in case you're using a pre-cut adhesive card.

Abschluss

If possible, turn on your device and test your repair before installing new adhesive and resealing.

Compare your new replacement part to the original part—you may need to transfer remaining components or remove adhesive backings from the new part before installing.

To reassemble your device, follow these instructions in reverse order.

The best way to secure the new screen is to apply a sheet of custom-cut double-sided tape to the back of the screen.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
