Samsung Galaxy A40 Charging Board Replacement

Geschrieben von: ZFix
  • Kommentare: 0
Samsung Galaxy A40 Charging Board Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

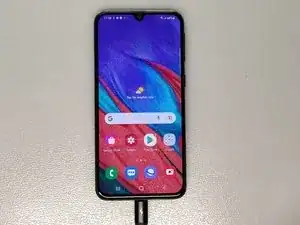

  1. uiciLOXN1xFQkJ2L
    uiciLOXN1xFQkJ2L
    p6xmUCANgICmHGUB

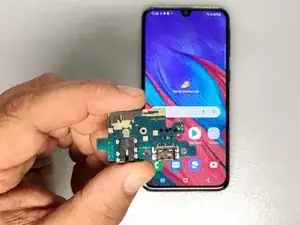

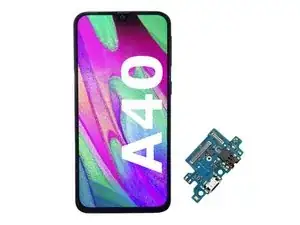

    • The spare part: Daughter board with Charging port, Microphone, Main flex cable connector, display connector, 3G, 4G antennas

  2. lqBNEYfGjrGYvy2y
    lqBNEYfGjrGYvy2y

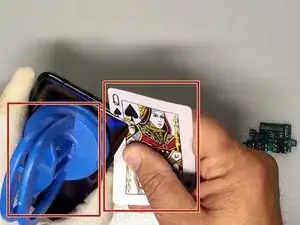

    qfmDfPibGDtHnCNi

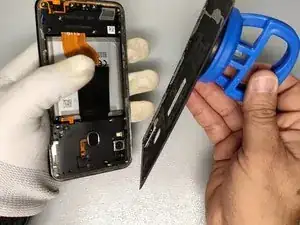

    ap3TkSkB1KJCbNXW

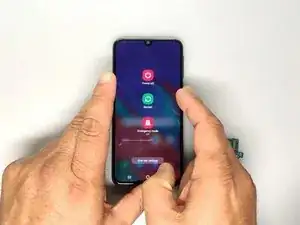

    • Turn off the device by pressing and holding the small button on the right side. After a few seconds, press the Power Off button and wait until the device has completely shut off

    • To soften the adhesive, use a heat gun or heating pad to warm up the device.

    • Use a Spudger (Or playing card) , Suction Cup, and Isopropyl alcohol to separate the back cover.

  3. I1UpwIGHrERLM25L

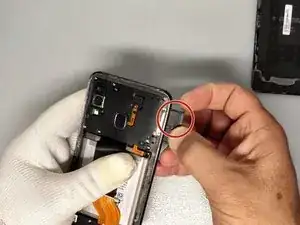

    I1UpwIGHrERLM25L
    Uol6fpV1e4RkGivm
    Fjsp3SAVmqJOVGGW

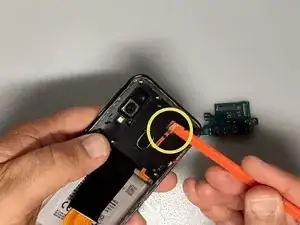

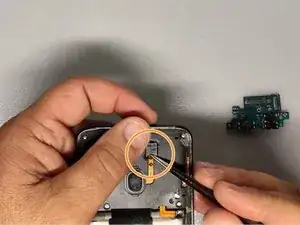

    • Be very careful when removing the ribbons in this step! Damaging the ribbons may cause parts of your phone to stop working

    • Remove the SIM tray.

    • Remove the plastic cover that covers the Fingerprint flex connector.

    • Disconnect the Fingerprint Sensor.

  4. pSUEBR15yuALYHQN
    pSUEBR15yuALYHQN

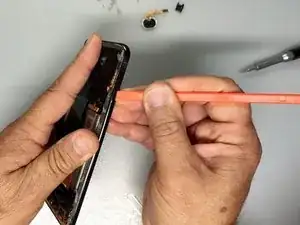

    j5DH2gBTlYfOxAUf

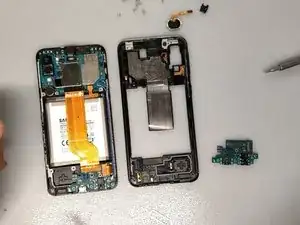

    WPjTtUJ55qe5DqYt

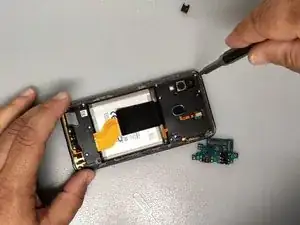

    • Remove the 13 screws

    • Remove the back cover

  5. 1ZmrXqhSedijeTUq

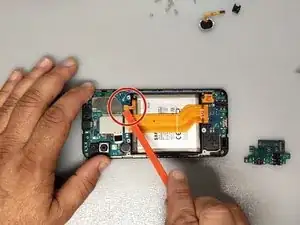

    1ZmrXqhSedijeTUq
    5wEtaNx1nVEHCkcD

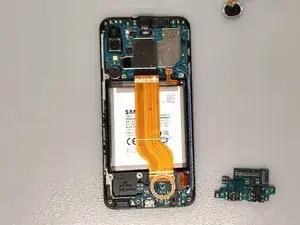

    • Disconnect the Main flex cable, Display flex cable and the Coaxial antenna cable.

    • Remove the black screw securing the charging board.

  6. XYXyqWWJ6YFNLP6a

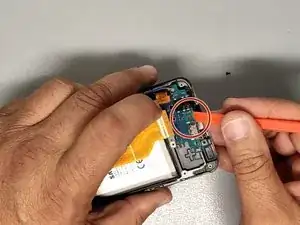

    XYXyqWWJ6YFNLP6a
    yAGd1K2HGLDDqX43
    QQRJHV1WSbDBWBeP

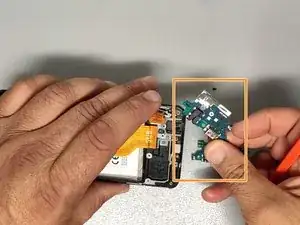

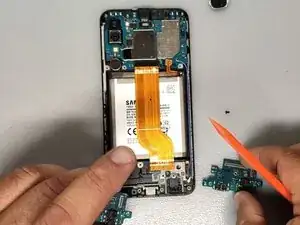

    • Use Plastic tool to separate the charging board from the frame.

    • Warm the charging board slightly to make it easier to disassemble.

    • Now, install the new board and test the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
