Einleitung

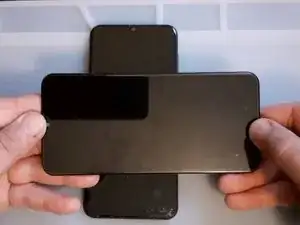

  1. p6T1HDTmJOoKbvYi
    p6T1HDTmJOoKbvYi
    NWdnWuknTIXFPKm3
    dOHmHHbNAyBIQRCO

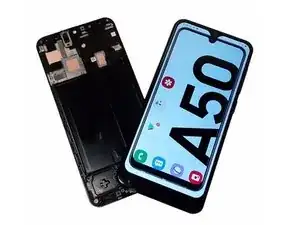

    • Display Touch Screen Digitizer Assembly with Frame for Samsung Galaxy A50

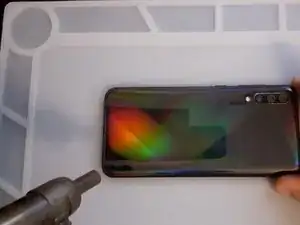

  2. nsoLx4DKQ1EZl31P
    nsoLx4DKQ1EZl31P
    ZBeSbBk4WSge242h
    RDAQ6I3FISGyBESS

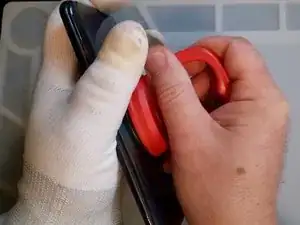

    • Heat up the back cover to loosen the adhesive.

    • To separate the back cover use a Suction Cup and plastic tools.

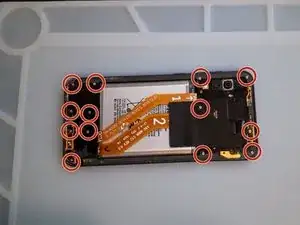

  3. QMAjRZo2LAMTbFaU
    QMAjRZo2LAMTbFaU
    ssytEyG6brFYVsFG
    tIgObSL2HDQkSLQH

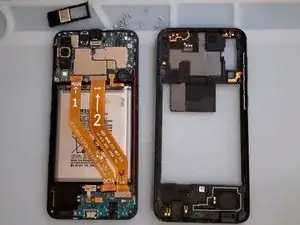

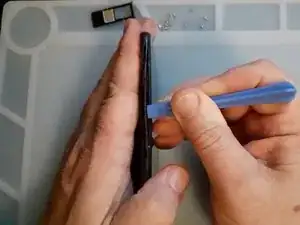

    • Remove the SIM tray.

    • Remove the Philips Screws.

    • Again use plastic tools to separate the middle frame.

  4. FnYkKGpDnMugiUIR
    FnYkKGpDnMugiUIR
    pEVG5HyAupXyMXlX
    DvAUVpNKKdDE5Bag
    • First disconnect the Battery.

    • Test the new spare part before the installation.

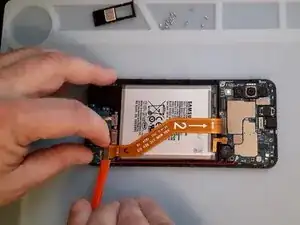

  5. lTNOJyUOwBNbs2TT
    lTNOJyUOwBNbs2TT
    NO6uXP1wMXOLam3L
    RTMnlG3I5GiNZqZe
    • Disconnect and remove the Main Flex Cable.

    • Remove the black Philips screw, it's shorter then the middle frame screws.

    • Disconnect the coaxial antenna cable.

    • Now you can remove the logic board.

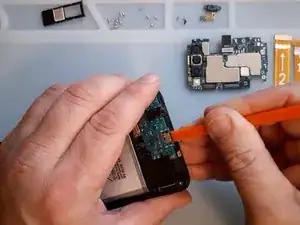

  6. tMi51CxmadmRFLPN
    tMi51CxmadmRFLPN
    kYMqagEySkUUlwSi
    LTBEBhcEHMJ5Cj1k
    • First remove the Fingerprint sensor.

    • The screws for the Fingerprint are shorter.

    • It's better to use hot air before to disassemble the sub-board.

    • Reminder - only plastic tools :)

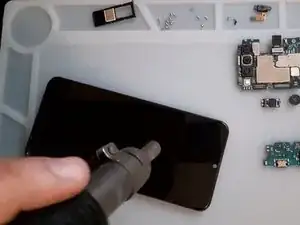

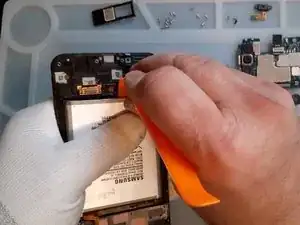

  7. XPrqNU63CMmNVvRl
    XPrqNU63CMmNVvRl
    ZFaSEj1AWBvKENbn
    UUNMMSQUUBWBTXPQ
    • Again, hot air, plastic tools and very slowly remove the battery.

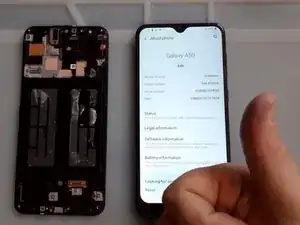

  8. WgI3VSBCEuLrRcqG
    • All's Well That Ends Well

    non ho capito se per cambiare il display rotto devo smontare tutto il telefono compresa la scheda logica.

    Gino -

Abschluss

To reassemble your device, follow these instructions in reverse order.
