Samsung Galaxy A52 Loudspeaker Replacement

Geschrieben von: Adriana Zwink
  • Kommentare: 2
Samsung Galaxy A52 Loudspeaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

Use this guide to replace the loudspeaker on your Samsung Galaxy A52.

You’ll need replacement adhesive to reattach components when reassembling the device. If you do not replace the adhesive seals when reassembling, your device will function normally, but will most likely lose its water protection.

  1. BFGqHuAM3rM6iWNP

    • Prepare an iOpener and apply it to the back cover for at least two minutes to loosen the adhesive underneath.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

  2. ib3j4W6KDyQfS2Gp
    ib3j4W6KDyQfS2Gp
    pXIn2vP2vrKv1IYd

    • Secure a suction handle to the right edge of the back cover, as close to the edge as possible.

    • If the back cover is damaged, the suction handle may not stick. Try lifting it with strong tape, or superglue the suction handle in place and allow it to cure so you can proceed.

    • Lift the back cover with the suction handle to create a small gap between the back cover and the frame.

    • In case you have trouble creating a gap, apply more heat to further soften the adhesive. Follow the iOpener instructions to avoid overheating.

    • Insert an opening pick into the gap you created.

  3. nrS4aw2sNfpdDoXn
    nrS4aw2sNfpdDoXn
    1tKPWEAkls1itxJh

    • Slide the opening pick to the top right corner to slice the adhesive.

    • Leave the opening pick in its place to prevent the adhesive from resealing.

  4. 2oBbGNQtnus3Uf4r
    2oBbGNQtnus3Uf4r
    2dV2tyu5vCoCRQQq
    rFnEYVA4A2aZYRRg

    • Insert a second opening pick underneath the top right edge of your phone.

    • Slide the opening pick to the bottom right corner to slice the adhesive.

    • Leave the opening pick in place to prevent the adhesive from resealing.

  5. nA2hcHOHPRZRZCfI
    nA2hcHOHPRZRZCfI
    RZKFcI2kSFCktua6

    • If the adhesive becomes hard to cut, it has most likely cooled down. Use your iOpener to reheat it.

    • Insert a third opening pick at the bottom edge of your phone.

    • Slide the opening pick along the bottom edge of your phone to slice the adhesive.

    • Leave the opening pick in the bottom left corner to prevent the adhesive from resealing.

  6. NOFySbsDvK1TGXZ6
    NOFySbsDvK1TGXZ6
    MCZ5oJrFOAYR2kDi
    L2FFauQttNuFQLNp

    • Insert a fourth opening pick underneath the bottom left corner of your phone.

    • Slide the opening pick along the left edge to slice the adhesive.

    • Leave the opening pick in the top left corner to prevent the adhesive from resealing.

  7. rwDhynJGNsTKDKdH
    rwDhynJGNsTKDKdH
    BpKNEHYbdgPvsxoP

    • Insert a fifth opening pick underneath the top left corner.

    • Slide the opening pick along the top edge of the back cover to slice the remaining adhesive.

  8. RKQUjKP3SbVd1rIe

    • Remove the back cover.

    • Apply new adhesive where necessary after cleaning the relevant areas with isopropyl alcohol (>90%).

    • Secure the new back cover with pre-cut adhesive or double-sided adhesive tape. After installing the back cover, apply strong, steady pressure to your phone for several minutes to help the adhesive form a good bond—a stack of heavy books works well.

  9. CqHo1PJyGcmUyCiA

    • Use a Phillips screwdriver to remove the ten 4.4 mm-long screws securing the motherboard cover.

  10. GJpbTVBXkZfITu4S
    GJpbTVBXkZfITu4S
    ICMJn1TmuC4blEG5
    Re5iZTpUjTakLaom

    • Insert an opening pick underneath the left edge of the motherboard cover.

    • Use the opening pick to pry up the motherboard cover.

    • Remove the motherboard cover.

  11. SpvVjJUwb5bxutrQ
    SpvVjJUwb5bxutrQ
    LYavGGDjlvS2AVN4

    • Use a spudger to disconnect the battery cable by prying the connector straight up from its socket.

    The daughterboard cover needs to be removed as well before proceeding to step 12

    Laurens Bolle -

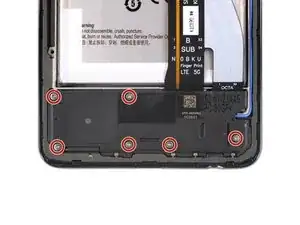

  12. lT6jjFD5OMNqsHv4

    • Use a Phillips screwdriver to remove the six 4.4 mm-long screws securing the loudspeaker assembly.

  13. RZDHg3d6gx2us1eQ

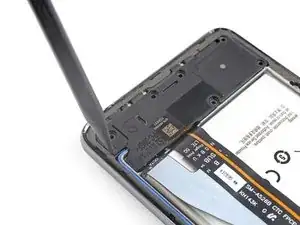

    RZDHg3d6gx2us1eQ

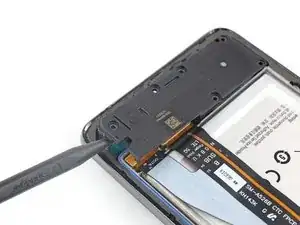

    RYMZnlRitUj6viEH

    • Insert the pointed end of a spudger into the gap on the right edge of the loudspeaker assembly.

    • Pry up the loudspeaker assembly.

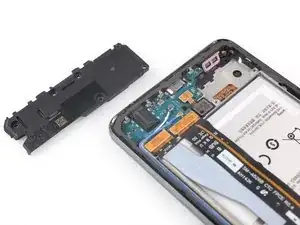

  14. YuRgrvDOmRFwEheR

    • Remove the loudspeaker assembly.

    • During reassembly apply new adhesive where it's necessary after cleaning the relevant areas with isopropyl alcohol (>90%).

Abschluss

If possible, turn on your device and test your repair before installing new adhesive and resealing.

Compare your new replacement part to the original part—you may need to transfer remaining components or remove adhesive backings from the new part before installing.

To reassemble your device, follow the above steps in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
