Samsung Galaxy A71 Charging Board Replacement

Geschrieben von: ZFix
  • Kommentare: 6
Samsung Galaxy A71 Charging Board Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

Hello and welcome! This is a guide to help you replace your charging board in the Samsung Galaxy A71.,

Samsung A71 Charging Port Replacement

  1. VkYa6WAWHCdHRIHF
    VkYa6WAWHCdHRIHF
    4vgYERofJU2GaB2k
    THU5enGMVm1IDZ1V

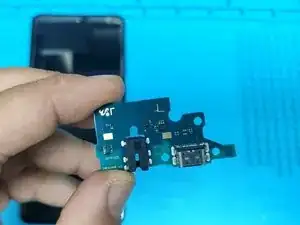

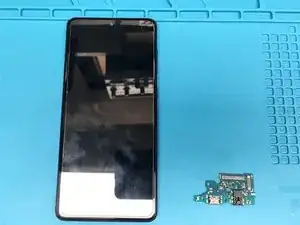

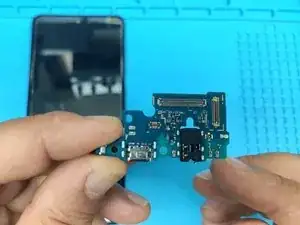

    • A look at the new charging board.

  2. NQC2xbQnqkmVLFeM
    NQC2xbQnqkmVLFeM
    USmCnSmeDXNG2Fer
    GXCbNpTh2kkKiLTh

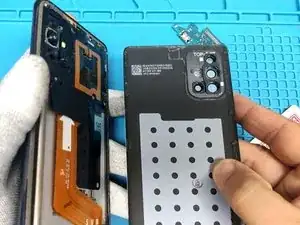

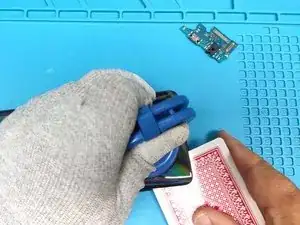

    • Now we are going to separate the back cover. First, warm up the device to soften the adhesive, then use a plastic spudger to open up the rest of the device.

    • Take care when removing the back case as too not damage anything.

  3. 2XLQ4SU6IMG2wPF5
    2XLQ4SU6IMG2wPF5
    afLb64ZALioSqBZu

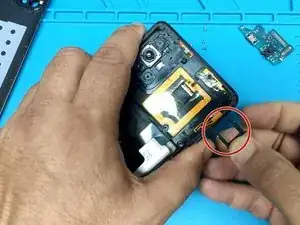

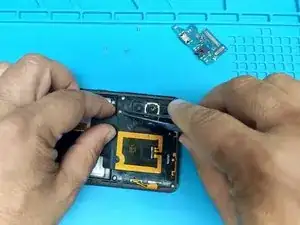

    • Remove all Phillips screws and the SIM Tray.

    I've had issues with my SIM tray on this phone and found I need to insert the ejection tool at slight angle to find the trigger point.

    Callum -

  4. Xv4iNMD4jHfL4UfT
    Xv4iNMD4jHfL4UfT
    mYge1GpO2q2NYtQi
    hneMWwIJs6ryPHDG

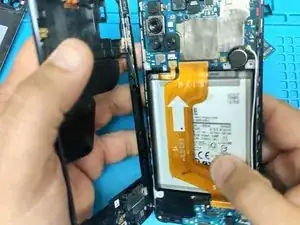

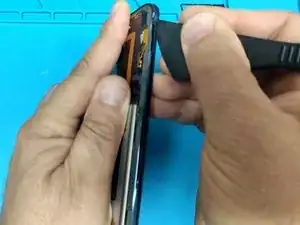

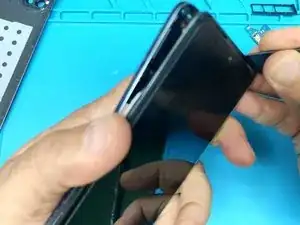

    • Use your spudger once again to separate the middle frame. Be careful to take your time here as well so you don't damage anything.

    Tip to separate middle frame: Start at the sim tray area - the plastic clips are weakest there and it's easier to get a plastic tool in.

    Callum -

  5. 1jnDQUKFkAvVQjSg
    1jnDQUKFkAvVQjSg
    pC5wp2m1l2AXPBZA
    gdexpmM4cWCQiPHb

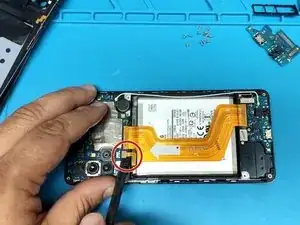

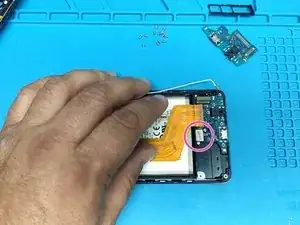

    • Disconnect the battery. Make sure not to puncture it.

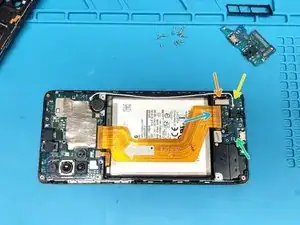

    • One by one disconnect:

    • Display flex cable.

    • Coaxial antenna connector.

    • Fingerprint Sensor.

    • Main flex cable.

    • Remove the two Phillips screws securing the Fingerprint sensor.

  6. oFqlmSlmS6ikData
    oFqlmSlmS6ikData
    1kCL2FjNAbYaJCKe

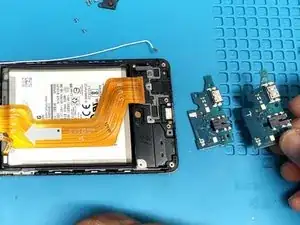

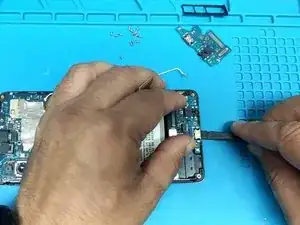

    • Carefully pry out the old charging board, and put in the new one.

    There is a little glue on the bottom of the old charging board. It may take a little extra pressure to pop it out of place. My new board came with glue installed and a removable plastic strip.

    Callum -

Abschluss

To reassemble your device, follow these instructions in reverse order.
